Yokohama Type Inflatable Marine Rubber Fenders 50Kpa 80Kpa

Yokohama Type Inflatable Marine Rubber Fenders 50Kpa 80Kpa
Yokohama Type Inflatable Marine Rubber Fenders 50Kpa 80Kpa
video play

Large Image :  Yokohama Type Inflatable Marine Rubber Fenders 50Kpa 80Kpa

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: BV/CCS/DNV/GL/ABS/LG/ISO17357
Model Number: PRF
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 1000-2000/set
Packaging Details: Naked/Pallet/Wooden box
Delivery Time: 5-8 days
Payment Terms: L/C,T/T,
Supply Ability: 100sets/Month
Detailed Product Description
Product Name: Yokohama Type Fender Brand: Henger
Application: Ship To Ship Transfer,STS,STD Certification: CCS,BV,ISO17357 ISO9001, ABS, DNV
Specification: Up To 4.5*12m,Customized Warranty Period: 24 Months
Part: Marine Equipments, Flange, Pneumatic Boat Fender, Marine Fender, Pneumatic Rubber Fender Payment Method: L/C, T/T, Western Union, MoneyGram
Color: Gray/Black/Customized Accessories: Tyre Sheath/Swivel/Shackle/Chain
High Light:

Inflatable Marine Rubber Fenders

,

50Kpa Marine Rubber Fenders

,

Yokohama Marine Fender 80Kpa

50Kpa 80Kpa Yokohama Type Inflatable Marine Rubber Fenders

The advantages of the Pneumatic Rubber Fends:

1. Guaranteed energy absorption
2. Thick skin construction
3. Good angular performance
4. Less surface pressure onto the side wall of ships. (The capability of accepting surface pressure of the fender is up to 14 ton/m2).
5. No reduction on the performance of compression when inclined.
6. Especially in mooring of large scale ships in sea docks and lightering.

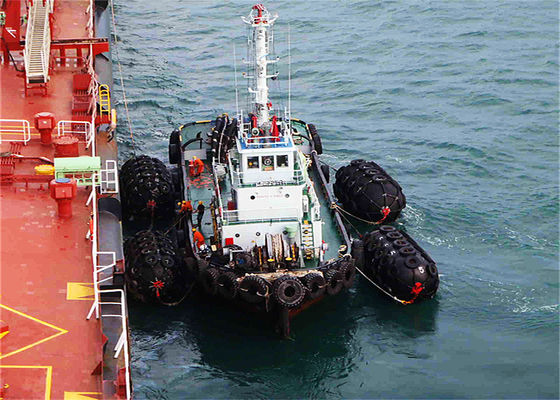

Floating Inflatable Fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today,

more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers.

These fenders play a critical role in the safe operation of ship berthing and mooring.
Yokohama Type Inflatable Marine Rubber Fenders 50Kpa 80Kpa 0Yokohama Type Inflatable Marine Rubber Fenders 50Kpa 80Kpa 1

Yokohama Type Inflatable Marine Rubber Fenders 50Kpa 80Kpa 2Yokohama Type Inflatable Marine Rubber Fenders 50Kpa 80Kpa 3


Inflatable Rubber Fender Types

There are many choices for protective jacket of inflatable rubber fender, Henger could also provide OEM

service and technical design based on customer requirement and actual demand. contact our sales service for more details.
Yokohama Type Inflatable Marine Rubber Fenders 50Kpa 80Kpa 4Yokohama Type Inflatable Marine Rubber Fenders 50Kpa 80Kpa 5
Yokohama Type Inflatable Marine Rubber Fenders 50Kpa 80Kpa 6Yokohama Type Inflatable Marine Rubber Fenders 50Kpa 80Kpa 7
Details of Henger Pneumatic Rubber Fenders
Yokohama Type Inflatable Marine Rubber Fenders 50Kpa 80Kpa 8Yokohama Type Inflatable Marine Rubber Fenders 50Kpa 80Kpa 9
Yokohama Type Inflatable Marine Rubber Fenders 50Kpa 80Kpa 10Yokohama Type Inflatable Marine Rubber Fenders 50Kpa 80Kpa 11

Inflatable Rubber Fender Technical Parameter

Fender Size Compression Amount (60%)

Noumenon Weight
(Kg)

Weight with Protective Jacket
(Kg)

D
(mm)

L
(mm)

Reaction
(KN)

Energy Absorption
(KNm)

500 1000 64 6 23 35
600 1000 74 8 28 40
700 1000 137 17 58 52
1000 1500 182 32 82 100
1000 2000 257 45 148 152
1200 2000 297 63 167 200
1350 2500 427 102 220 298
1500 2500 499 134 270 300
1500 3000 579 153 318 450
1700 3000 639 191 380 482
2000 3500 875 308 580 890
2000 4000 1000 352 680 1000
2500 4000 1381 663 1064 1180
2500 5500 2019 1131 1268 1380
3000 5000 2422 1357 1980 2388
3000 6000 2906 1293 2400 2690
3300 4500 1884 1175 2380 2617
3300 6500 3015 1814 2980 3000

* there are inflatable fenders of 0.05Mpa & 0.08Mpa internal pressure for choice, kindly contact our service consultant for more details and competitive prices.
* inflatable fender size could be customized according to customer requirement.
* all accessorires could be customized according to customers' requirement or drawings.


Model Selection of Inflatable Fender for Small & Middle Size Ship

Ship Tonnage(T) Recommendation Size D x L ( m) Ship Type
50 0.5 x1.0 Fishing ship
100 0.7 x 1.5~1.0 x 1.5 Fishing ship
200 1.0 x 1.5~1.2 x 2.0 Fishing ship, towing ship
300-500 1.2 x 2.0~1.5 x 2.5 Fishing ship, towing ship
1000 1.5 x 2.5~1.5 x 3.0 Towing ship, cargo ship
3000 2.0 x 3.0~2.0 x 3.5 cargo ship, ocean trawler
10000 2.0 x 3.5~2.5 x 4.0 cargo ship



Model Selection of Inflatable Fender for Large-tonnage Ship

Ship Tonnage
(DWT)

Assumed Boarding Speed
(M/S)

Effective Kinetic Energy
(KN.M)

Fender Size D*L
(m)

200000 0.15 1890 3.3 x 6.5
150000 0.15 1417 3.3 x 6.5
100000 0.15 945 3.0 x 5.0
85000 0.17 1031 3.0 x 6.0
50000 0.18 680 2.5 x 5.5
40000 0.20 672 2.5 x 5.5
30000 0.22 609 2.5 x 4.0
20000 0.25 525 2.5 x 4.0
15000 0.26 425 2.5 x 4.0
10000 0.28 329 2.0 x 4.0
5000 0.33 228 2.0 x 3.5


Production Process
Yokohama Type Inflatable Marine Rubber Fenders 50Kpa 80Kpa 12


FAQ

Q: Are you trading company or manufacturer?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.





Q: What is your terms of payment?

A: Payment ≤ 1000USD, 100% in advance. Payment ≥ 1000USD, 30% T/T in advance, balance before shipment.



* all packing method and shipping method of inflatable rubber fenders are done as per to csutomer's requirement.
