Product Details:
Payment & Shipping Terms:
|
| Certification: | CCS,ABS,LR,BV,DNV | Part: | Marine Airbag,Other,Hinge,marine Equipments,Rubber |
|---|---|---|---|
| Material: | Natural Rubber,Steel,Mixed Rubber With Natural Rubber And Carbon,Nylon Rubber,HDPE | Product Name: | Ship Launching Marine Air Bag,marine Rubber Airbag,ship Launching Airbag,BV Certificate Pneumatic Rubber Heavy Lifting Ship Launching Airbag,High Quality Mooring Spherical Steel Buoy |
| Color: | Black,grey,Black Orange,accoring To Requirements | Application: | Salvage,heavy Lifting,Ship Launching,Marine/quay/dock/boat,Ship Launching/landing/lifting |
| Size: | Customized Size,Customer's Ruquirement,2m X 24m Or As Per Customer's Request,accoring To Requirements,1.5m X 15m | Diameter: | 0.8--2.5M,1.8m,from 100mm To 250mm,0.6-2.8m,0.4m-2.0m |
| Usage: | Ship Launching,landing And Slvage,Protect Boat,moving/lifting/landing /launching,Boat Fender | Standard: | CB/T-3837,ISO14409,CB/T-3795,ISO Standard,ISO 14409 |
| Packing: | Standard Package,Pallet Package For Ship Launching Airbag,Rubber Wheel And Pallet,nude Packing Wooden Platte Packing,Pallet | Name: | Barge Tug Launching High Air-Press Ship Airbag,Marine Rubber Ship Launching Airbags,Pneumatic Marine Rubber Airbags,marine Equipment / Marine Part Air Bag Supplier / Marine Airbag |
| Warranty Period: | 24 Months,2 Years | Technology: | High Pressure,Whole Wrapping,anti-explosion Type. Whole-wrapping Technology,Whole Intertwine Technology,Explorsion Proof |
| Working Pressure: | 0.05MPa To 0.15Pa,0.08-0.15MPa,0.09MPa-0.18MPa | Length: | 15m,5.0m-20m,from 1000mm To 24000mm,18m |
| Long: | 12-18m,8-24m | Design Using Life: | 10 Years,6-10 Years |
| Quality: | Excellent,Top | ||
| High Light: | Durable Rubber Ship Launching Airbag,Heavy Duty Ship Launching Airbag |
||

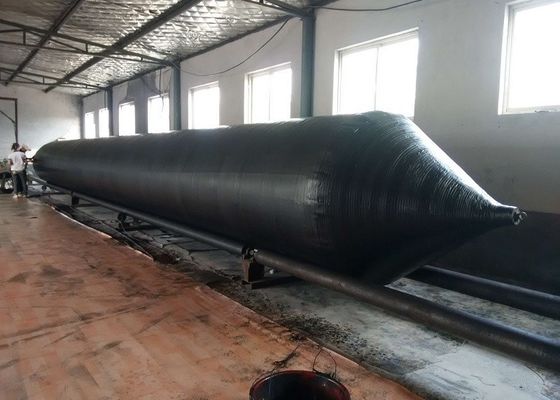

1.0 x 12 Heavy Duty Rubber Ship Launching Durable Airbag
High Bearing Capacity
Inflatable rubber airbag’s main technical requirement is regulated in CB/T 3795--1996 published by China State Shipbuilding Corporation.
Henger adopts new rubber formula and high-strength enhanced synthetic-tyre-cord layer, which improves the airbag’s bearing capacity two times more than CB/T 3795--1996 standard.
The synthetic-tyre-cord layer of Henger marine airbag adopts dipped Nylon-6 1400dtex/3-V2 tyre cord.
The strength & durability of airbag improves 20%, compared to polyester tire cord which is widely used by friendly competitors.

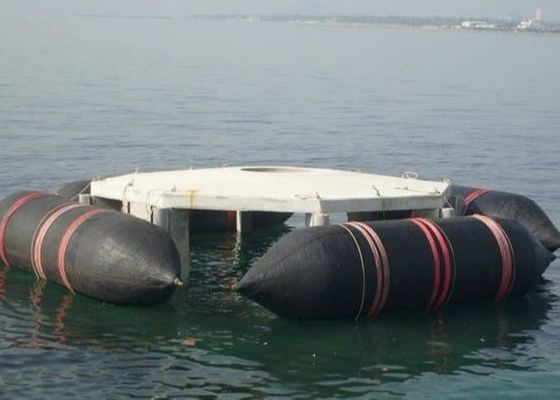

Marine Rubber Airbag Application
Ship Launching & Upgrading: with more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.
Technical Parament Table
| Series | Model | Diameter(m) | Working Pressure(Mpa) | Working Height(m) | Beating Capacity(Ton/m) | ||||
| 0.4D | 0.5D | 0.6D | 0.4D | 0.5D | 0.6D | ||||
| S1 |
S10 |
0.8 | 0.20 | 0.32 | 0.40 | 0.48 | 15.1 | 12.6 | 10.0 |
| 1 | 0.16 | 0.40 | 0.50 | 0.60 | 15.1 | 12.6 | 10.0 | ||
| 1.2 | 0.14 | 0.48 | 0.60 | 0.72 | 15.8 | 13.2 | 10.6 | ||
| 1.5 | 0.11 | 0.60 | 0.75 | 0.90 | 15.5 | 13.0 | 10.4 | ||
| S11 | 0.8 | 0.19 | 0.32 | 0.40 | 0.48 | 14.3 | 11.9 | 9.5 | |
| 1 | 0.15 | 0.40 | 0.50 | 0.60 | 14.1 | 11.8 | 9.4 | ||
| 1.2 | 0.13 | 0.48 | 0.60 | 0.72 | 14.7 | 12.2 | 9.8 | ||
| 1.5 | 0.10 | 0.60 | 0.75 | 0.90 | 14.1 | 11.8 | 9.4 | ||
| S12 | 0.8 | 0.24 | 0.32 | 0.40 | 0.48 | 18.1 | 15.1 | 12.1 | |
| 1 | 0.19 | 0.40 | 0.50 | 0.60 | 17.9 | 14.9 | 11.9 | ||
| 1.2 | 0.16 | 0.48 | 0.60 | 0.72 | 18.1 | 15.1 | 12.1 | ||
| 1.5 | 0.13 | 0.60 | 0.75 | 0.90 | 18.4 | 15.3 | 12.2 | ||
| 1.8 | 0.10 | 0.72 | 0.90 | 1.08 | 17.0 | 14.1 | 11.3 | ||
| S2 | S20 | 1 | 0.24 | 0.40 | 0.50 | 0.60 | 22.6 | 18.8 | 15.1 |
| 1.2 | 0.20 | 0.48 | 0.60 | 0.72 | 22.6 | 18.8 | 15.1 | ||
| 1.5 | 0.16 | 0.60 | 0.75 | 0.90 | 22.6 | 18.8 | 15.1 | ||
| 1.8 | 0.13 | 0.72 | 0.90 | 1.08 | 22.0 | 18.4 | 14.7 | ||
| 2 | 0.12 | 0.80 | 1.00 | 1.20 | 22.6 | 18.8 | 15.1 | ||
| S21 | 1 | 0.27 | 0.40 | 0.50 | 0.60 | 25.4 | 21.2 | 17.0 | |
| 1.2 | 0.23 | 0.48 | 0.60 | 0.72 | 26.0 | 21.7 | 17.3 | ||
| 1.5 | 0.18 | 0.60 | 0.75 | 0.90 | 25.4 | 21.2 | 17.0 | ||
| 1.8 | 0.15 | 0.72 | 0.90 | 1.08 | 25.4 | 21.2 | 17.0 | ||
| 2 | 0.14 | 0.80 | 1.00 | 1.20 | 26.4 | 22.0 | 17.6 | ||
| S22 | 1 | 0.31 | 0.40 | 0.50 | 0.60 | 29.2 | 24.3 | 19.5 | |
| 1.2 | 0.26 | 0.48 | 0.60 | 0.72 | 29.4 | 24..5 | 19.6 | ||
| 1.5 | 0.20 | 0.60 | 0.75 | 0.90 | 28.3 | 23.6 | 18.8 | ||
| 1.8 | 0.17 | 0.72 | 0.90 | 1.08 | 28.8 | 24.0 | 19.2 | ||
| 2 | 0.15 | 0.80 | 1.00 | 1.20 | 28.3 | 23.6 | 18.8 | ||
| 2.5 | 0.12 | 1.00 | 1.25 | 1.50 | 28.3 | 23.6 | 18.8 | ||
| S3 | S30 | 1 | 0.35 | 0.40 | 0.50 | 0.60 | 33.0 | 27.5 | 22.0 |
| 1.2 | 0.29 | 0.48 | 0.60 | 0.72 | 32.8 | 27.3 | 21.9 | ||
| 1.5 | 0.23 | 0.60 | 0.75 | 0.90 | 32.5 | 27.1 | 21.7 | ||
| 1.8 | 0.19 | 0.72 | 0.90 | 1.08 | 32.2 | 26.8 | 21.5 | ||
| 2 | 0.17 | 0.80 | 1.00 | 1.20 | 32.0 | 26.7 | 21.4 | ||
| 2.5 | 0.14 | 1.00 | 1.25 | 1.50 | 33.0 | 27.5 | 22.0 | ||
