| MOQ: | 1 |
| Standard Packaging: | nude packing or customized |
| Delivery Period: | 30 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 50PCS /month |
0.7*1.5~1.0*1.5 Rubber STS STD 50KP Milky White Ship Gray Durable Marine Fenders
Pneumatic rubber fender introduction
The fender is mainly to withstand the impact force of the ship when the ship is docking, leaving the dock and other forms (such as when the ship is tied to tow), and transmits it to the hull structure of a larger area. Wooden fenders have buffering effect. Although steel fenders have poor buffering effect, they have better strength and can be included in the section of the hull girder (the welding strength must be guaranteed). Especially for large-open deck barges, they can make up for the deck The lack of effective cross-sectional area is conducive to longitudinal strength. Steel materials cannot be used for the fenders of oil barges and small oil tankers.
Large seagoing vessels usually do not have fenders. River boats, work boats, permanent double-track fenders, one of which is located on the upper deck, and the other is located slightly higher than the designed waterline
Pneumatic Rubber Fender Features
Unique Design of Henger Pneumatic Rubber Fender
Active-Protecting Safety Valve , All fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.
It is a patented design which could avoid explosion of fenders from collision and air inflation. Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.
Pneumatic Rubber Fender Application

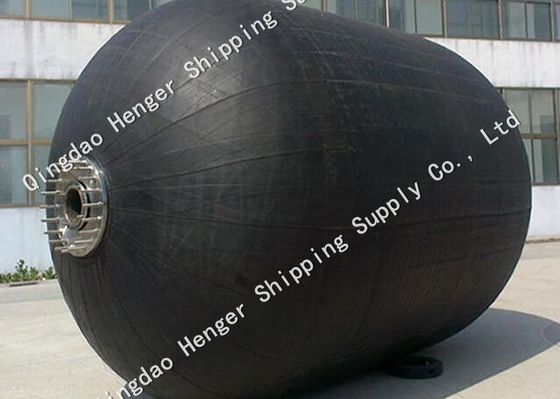

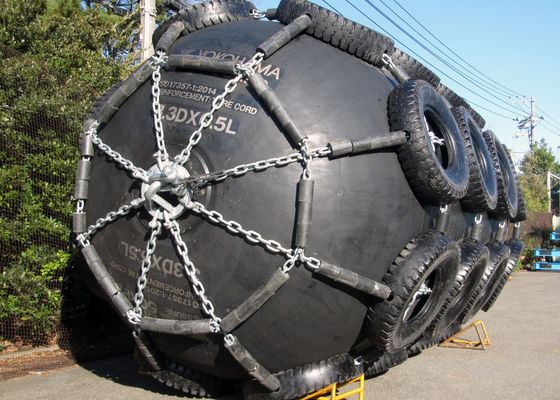

Pneumatic Rubber Fender is constructed of synthetic-cord-reinforced rubber sheets with compressed air inside to keep floating over the water surface and work as a shock absorber between two ships or between ships and berthing structure when they come alongside each other on the water.
Pneumatic Rubber Fender is a leading anti-collision device for marine application in the world today. Pneumatic Fender has become an idea ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbors and wharves.
Dimensions
| Fender Size [mm] |
Water [%] |
Diameter [%] |
Initial Pressure 50kPa (0.5 kg/cm²) |
||
| Diameter | Length | Energy [kNm] |
Reaction [kN] |
||
| 1700 | 7200 | 65 | 45 | 134 | 622 |
| 0 | 60 | 583 | 1569 | ||
| 2000 | 6000 | 65 | 45 | 155 | 599 |
| 0 | 60 | 647 | 1766 | ||
| 2500 | 5500 | 65 | 45 | 223 | 687 |
| 0 | 60 | 928 | 2037 | ||
| 3300 | 6500 | 60 | 45 | 616 | 1247 |
| 0 | 60 | 1913 | 3169 | ||
| 3300 | 10600 | 55 | 45 | 589 | 1275 |
| 0 | 60 | 3120 | 5170 | ||
