3.3*6.5m Ship Fender For STS Black Pneumatic Fender With Chain And Tire 1. Pneumatic rubber fender introduction Inflatable rubber fender (by ball) is a marine anti-collision product made of compressed air. Compressed air is mainly used as the buffer medium to absorb the impact energy of the ship, ...
1. Pneumatic rubber fender introduction

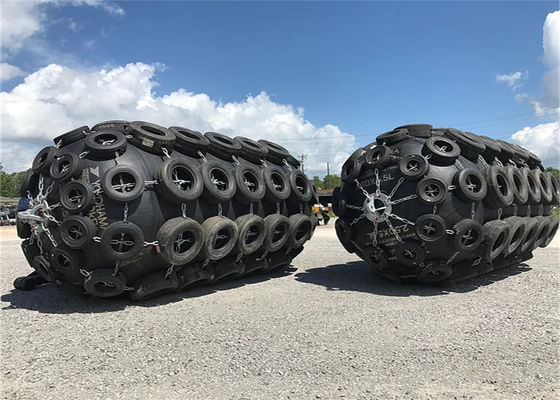

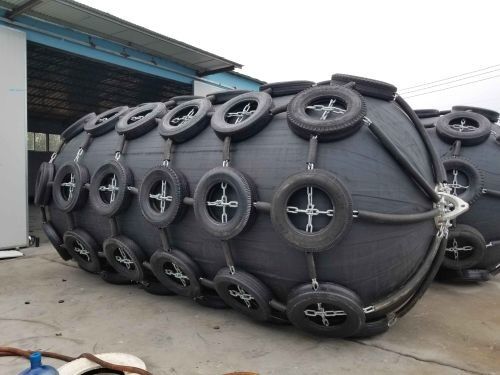

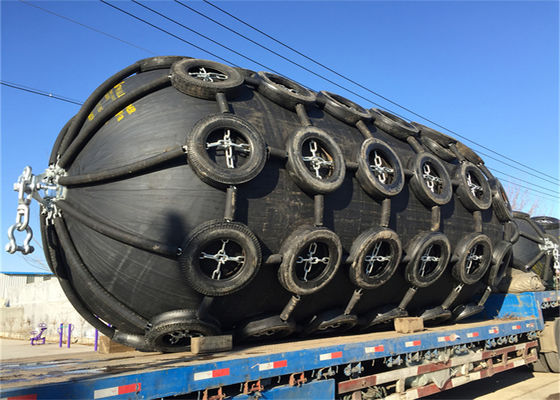

Inflatable rubber fender (by ball) is a marine anti-collision product made of compressed air. Compressed air is mainly used as the buffer medium to absorb the impact energy of the ship, making the ship more flexible and soft when docking, so as to achieve the effect of collision and collision avoidance. Yokohama type ball is a kind of sheath type ball. Usually aircraft tires or engineering tires are used to wrap the ball. Both ends are equipped with shoulder straps, which are widely used for ship-to-ship transfer operations and ship berthing operations. Wait. The size is: D0.5m x L1.0m ~ D3.3m x L6.5m. Inflatable fenders (by ball) are produced in strict accordance with ISO17357-2002 and GB/T 21482-2002 international quality standards, and their products are exported to all over the world.
2.. Pneumatic rubber fender Parameter
|
Ship Tonnage(T) |
Recommendation SizeD×L(m) |
Ship Type |
|
50 |
0.5*1.0 |
Fishing ship |
|
100 |
0.7*1.5~1.0*1.5 |
Fishing ship |
|
200 |
1.0*1.5~1.2*2.0 |
Fishing ship,towing ship |
|
300-500 |
1.2*2.0~1.5*2.5 |
Fishing ship,towing ship |
|
1000 |
1.5*2.5~1.5*3.0 |
Towing ship,cargo ship |
|
3000 |
2.0*3.0~2.0*3.5 |
cargo ship,ocean trawler |
|
10000 |
2.0*3.5~2.5*4.0 |
cargo ship |
3. Pneumatic rubber fender Parameter
|
Pneumatic 80 fender size and performance requirements |
||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) |
Reaction force at GEA deflection (R) |
Hull pressure (Internal pressure) at GEA deflection (P) |
|
Minimum value at deflection 60±5% kJ |
Tolerance±10% kN |
Reference value kPa |
||
|
500 x 1000 |
80 |
8 |
85 |
174 |
|
600 x 1000 |
80 |
11 |
98 |
166 |
|
700 x 1500 |
80 |
24 |
180 |
177 |
|
1000 x 1500 |
80 |
45 |
239 |
160 |
|
1000 x2000 |
80 |
63 |
338 |
174 |
|
1200 x 2000 |
80 |
88 |
390 |
166 |
|
1350 x 2500 |
80 |
142 |
561 |
170 |
|
1500 x 3000 |
80 |
214 |
761 |
174 |
|
1700 x 3000 |
80 |
267 |
840 |
168 |
|
2000 x 3500 |
80 |
430 |
1150 |
168 |
|
2500 x 4000 |
80 |
925 |
1815 |
180 |
|
2500 x 5500 |
80 |
1317 |
2653 |
195 |
|
3300 x 4500 |
80 |
1640 |
2476 |
171 |
|
3300 x 6500 |
80 |
2532 |
3961 |
191 |
|
3300 x 10600 |
80 |
4281 |
6907 |
208 |
|
4500 x 9000 |
80 |
6633 |
7551 |
192 |
|
4500 x 12000 |
80 |
9037 |
10490 |
202 |
4. Pneumatic Rubber Fender Features
♦ Advantage:
● Safety and Reliability
● No Deterioration or Variation in Performance● Advantages at Inclined Berthing
● Most Cost Competitive System● Soft Reaction Force for Ship and Jetty Structure
● Lower Mooring Forces under Rough Weather Conditions
Tag: inflatable marine fenders,
