D1x12m 8layers Bv Certificate Inflatable Marine Airbags For Ship Launching Marine Lifting1. Product IntroductionConcrete pontoon also called rubber mandrel is made of natural rubber and rubber dipped Nylon cord fabric .It's widely used for concrete culvert making in Kenya, Zambia, Tanzania, Ethiopia ...
Concrete pontoon also called rubber mandrel is made of natural rubber and rubber dipped Nylon cord fabric .
It's widely used for concrete culvert making in Kenya, Zambia, Tanzania, Ethiopia etc. in the world.
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
| Diameter | Working Pressure | Working height | Bearing capacity per unit length | |
| KN/m | Ton/m | |||
| D=1.0m | 0.20Mpa | 0.6m | 125.76 | 12.82 |
| 0.5m | 157.16 | 16.02 | ||
| D=1.2m | 0.17Mpa | 0.7m | 133.61 | 13.62 |
| 0.6m | 160.3 | 16.34 | ||
| D=1.5m | 0.13Mpa | 0.9m | 112.63 | 12.5 |
| 0.8m | 143.03 | 14.58 | ||
| 0.7m | 163.43 | 16.66 | ||
| D=1.8m | 0.11Mpa | 1.1m | 120.96 | 12.33 |
| 1.0m | 138.22 | 14.09 | ||
| 0.9m | 155.59 | 15.86 | ||
| 0.8m | 172.85 | 17.62 | ||
| 0.7m | 190.22 | 19.39 | ||
| D=2.0m | 0.10Mpa | 1.2m | 125.76 | 12.82 |
| 1.1m | 141.46 | 14.42 | ||
| 1.0m | 157.16 | 16.02 | ||
| 0.9m | 172.85 | 17.62 | ||
| 0.8m | 188.64 | 19.23 | ||

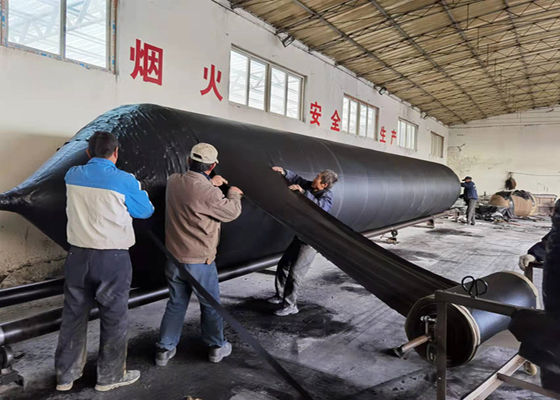

Henger built a strength and intensity model to test compression performance, stress intensity and direction. After testing for many times, we got the stress changeing regularity and optimized structure configuration design. The new optimized airbag successfully passed blasting experiment and achieved good performance in practical use.
Hydraulic Blasting Test is an all-around ultimate test for the performance, material, structure design, manufacturing technique of marine airbags.
The testing result of Henger Marine Airbag is beyond industrial standard
Hydraulic blasting test for Henger marine airbags Inspected by American customer and third-party detection institution
Q1:What’s the material of your products?
A:Our raw material is natural rubber, and rubber-dipped nylon cord fabric
Q2:Are you factory or trading company?
A:We are the company and factory,located in Jimo City,Qingdao,near to Qingdao port and Qingdao airport,which is convenient for transportation.
Q3:Can you do OEM?
A:Yes,we can do.As long as receive your request,we could produce accordingly.
Q4:What’s your delivery time and payment terms?
A:Delivery time is according to customers’ size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.
Thanks for reading, if you have any interest or questions, please feel free to contact me.
Tel/WhatsApp:+86 15053332502
E-mail:echo-bai@hengergroup.com
