Product Details:
Payment & Shipping Terms:
|
Material: | Rubber | Size: | D:0.5~4.5m L:1~9m |
---|---|---|---|
Aplication: | Dock Ship Protecrion;STS Protection | Color: | Customized |
MOQ: | 1 Piece | Warranty: | 24 Months |
Service Life: | 15-20 Years | Packing: | Pallet/Nude |
High Light: | CTN Floating Pneumatic Fender,Pneumatic Marine Yokohama Fender,STS Protection Marine Yokohama Fender |

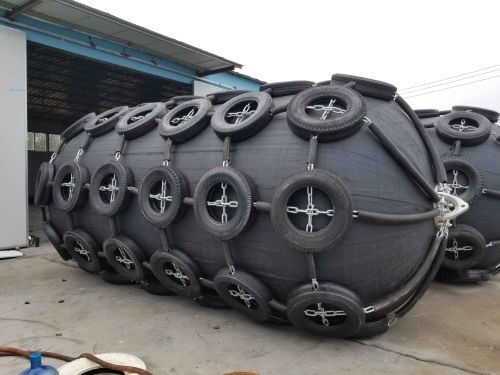

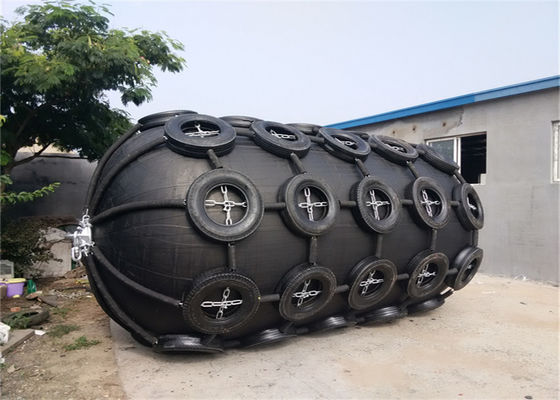

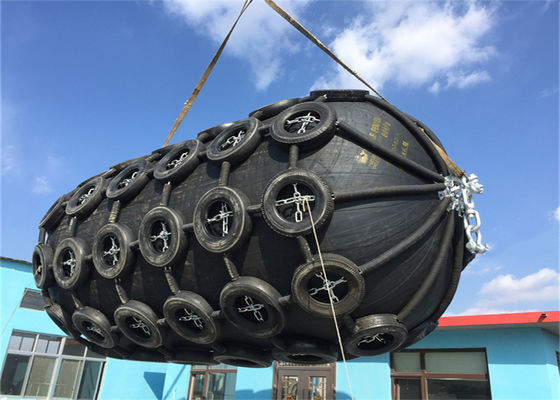

Pneumatic rubber fender (by ball) is a marine anti-collision product made of compressed air. Compressed air is mainly used as the buffer medium to absorb the impact energy of the ship, making the ship more flexible and soft when docking, so as to achieve the effect of collision and collision avoidance. Yokohama type ball is a kind of sheath type ball. Usually aircraft tires or engineering tires are used to wrap the ball. Both ends are equipped with shoulder straps, which are widely used for ship-to-ship transfer operations and ship berthing operations. Wait. The size is: D0.5m x L1.0m ~ D4.5m x L9m. Inflatable fenders (by ball) are produced in strict accordance with ISO17357-2002 and GB/T 21482-2002 international quality standards, and their products are exported to all over the world.
Pneumatic 50 fender size and performance requirements | ||||
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
Minimum value at deflection 60±5% kJ | Tolerance±10 % kN |
Reference value kPa |
||
500 x 1000 | 50 | 6 | 64 | 132 |
600 x 1000 | 50 | 8 | 74 | 126 |
700 x 1500 | 50 | 17 | 137 | 135 |
1000 x 1500 | 50 | 32 | 182 | 122 |
1000 x 2000 | 50 | 45 | 257 | 132 |
1200 x2000 | 50 | 63 | 297 | 126 |
1350 x 2500 | 50 | 102 | 427 | 130 |
1500 x 3000 | 50 | 153 | 579 | 132 |
1700 x 3000 | 50 | 191 | 639 | 128 |
2000 x 3500 | 50 | 308 | 875 | 128 |
2500 x 4000 | 50 | 663 | 1381 | 137 |
2500 x5500 | 50 | 943 | 2019 | 148 |
3300 x 4500 | 50 | 1175 | 1884 | 130 |
3300 x 6500 | 50 | 1814 | 3015 | 146 |
3300 x 10600 | 50 | 3067 | 5257 | 158 |
4500 x 9000 | 50 | 4752 | 5747 | 146 |
4500 x 12000 | 50 | 6473 | 7984 | 154 |
Pneumatic 80 fender size and performance requirements | ||||
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
Minimum value at deflection 60±5% kJ | Tolerance±10% kN |
Reference value kPa |
||
500 x 1000 | 80 | 8 | 85 | 174 |
600 x 1000 | 80 | 11 | 98 | 166 |
700 x 1500 | 80 | 24 | 180 | 177 |
1000 x 1500 | 80 | 45 | 239 | 160 |
1000 x2000 | 80 | 63 | 338 | 174 |
1200 x 2000 | 80 | 88 | 390 | 166 |
1350 x 2500 | 80 | 142 | 561 | 170 |
1500 x 3000 | 80 | 214 | 761 | 174 |
1700 x 3000 | 80 | 267 | 840 | 168 |
2000 x 3500 | 80 | 430 | 1150 | 168 |
2500 x 4000 | 80 | 925 | 1815 | 180 |
2500 x 5500 | 80 | 1317 | 2653 | 195 |
3300 x 4500 | 80 | 1640 | 2476 | 171 |
3300 x 6500 | 80 | 2532 | 3961 | 191 |
3300 x 10600 | 80 | 4281 | 6907 | 208 |
4500 x 9000 | 80 | 6633 | 7551 | 192 |
4500 x 12000 | 80 | 9037 | 10490 | 202 |
1. Oil and gas tankers
2. Fast ferries and aluminum vessels
3. Temporary and permanent installations
4. Rapid response and emergencies
5. In ports with extreme tidal variations

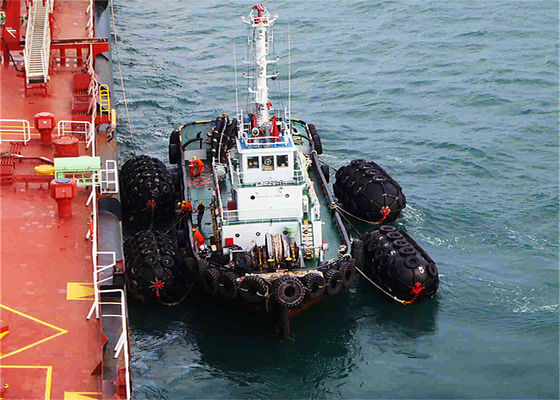

6. For ship-to-ship lightering operations
7. For all navy vessels due to low hull pressure and the advantage of a proportional increase of reaction force and energy absorption
Unique Design of Henger Pneumatic Rubber Fender
Active-Protecting Safety Valve , All fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.
It is a patented design which could avoid explosion of fenders from collision and air inflation.
Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.
1. Large compression deformation, low reaction force, large energy absorption
2. Good floating performance, able to adapt to changes in tide level
3. Use compressed air as the medium, and use compressed air to do work to consume collision energy
4. Simple installation and long service life

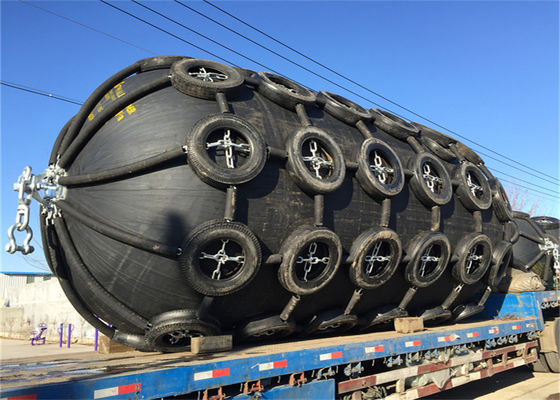

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
1. When the Pneumatic rubber fender is not used for a long time, it should be washed and dried, filled with appropriate compressed air, placed in a dry, cool, ventilated place.Inventory temperature is maintained at -15 ℃ -40 ℃ .
2 .The place where the fender is stored should be kept away from the heat source.
3 .Fenders shall not be in contact with acids, alkalis, greases and organic solvents.
4 .When the fenders are not in use, they must not be stacked and should not be stacked on the ba. In order to better extend the service life of pneumatic rubber fenders, it is recommended that you store them in strict accordance with the above recommendations.
