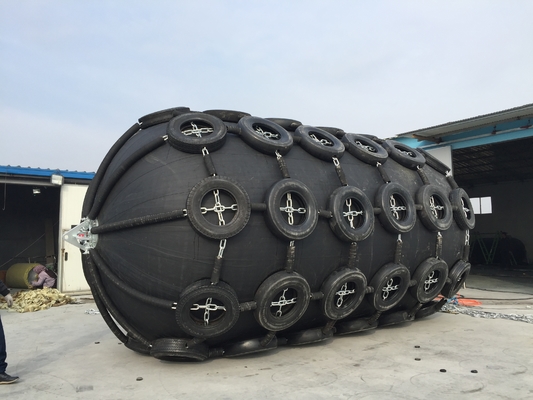

ISO 17357 Pneumatic Marine Fender Floating Fender Yokohama

ISO 17357 Pneumatic Marine Fender Floating Fender Yokohama
ISO 17357 Pneumatic Marine Fender Floating Fender Yokohama ISO 17357 Pneumatic Marine Fender Floating Fender Yokohama ISO 17357 Pneumatic Marine Fender Floating Fender Yokohama

Large Image :  ISO 17357 Pneumatic Marine Fender Floating Fender Yokohama

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: ISO1735,CCS, ABS, LRS, BV, GL, DNV, NK
Model Number: TC15
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Normal packing,Nude Packing/As Requirement
Delivery Time: 7-15DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Per Month
Detailed Product Description
Name: Pmeumatic Rubber Fender Material: Natural Rubber
Color: Black Size: Customized Size,As Per Customer's Requirements
Product Name: Marine Rubber Fender For Boat Dock D Shape Boat Fender Application: Ship
Packing: Standard Package Usage: Boat Rubber Fender,Protect Shipboard,Protect Boat
Lifespan: 8-10 Years Diameter: 0.5M-3.3M
High Light:

ISO 17357 Floating Pneumatic Marine Fender

,

Yokohama Floating Pneumatic Marine Fender

,

Floating Pneumatic Yokohama Fender

ISO 17357 50KPA/80KPA Pneumatic Marine Fender Floating Fender Yokohama

1. Pneumatic Rubber Fender Introduction

1 Outer rubber

The outer rubber layers that covers the outside of fender protects the cord layers and the inner rubber from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage. Standard color is black, but other colors are available on request.



2 Inner rubber

The liner of a rubber membrane seals the pressurized air inside the fenders.





3 Synthetic tire cord layers for reinforcement

The reinforcement layers, which are made of synthetic tire cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly providing strong efficient reinforcement.



4 Beading ring

A steel ring is placed at one end (or both ends) of the fender and holds the end of cord layers.



5 Flange

A steel flange is mounted on the fender, to which an air valve or safety valve can be adapted.



6 Safety valve

Fenders of diameter 2500mm and larger shall be equipped with safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally. Fender which are smaller than 2500mm in diameter, can be equipped with a safety valve if required.



7 Metal accessories

All the relevant metal accessories of pneumatic fenders, include shackles, towing rings, swivels, chain net, are made of stainless steel, which are resistant for sea water corrosion.



ISO 17357 Pneumatic Marine Fender Floating Fender Yokohama 0

ISO 17357 Pneumatic Marine Fender Floating Fender Yokohama 1

2. Parameter Table

Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection(R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10 % kN

Reference value

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154



Pneumatic 80 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection (R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10% kN

Reference value

kPa

500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000 x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202

3. Pneumatic Rubber Fender Features

Unique Design of Henger Pneumatic Rubber Fender



Active-Protecting Safety Valve , All fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.

It is a patented design which could avoid explosion of fenders from collision and air inflation.



Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.

ISO 17357 Pneumatic Marine Fender Floating Fender Yokohama 2

ISO 17357 Pneumatic Marine Fender Floating Fender Yokohama 3

ISO 17357 Pneumatic Marine Fender Floating Fender Yokohama 4

4.Our advantages

1 Safety and Reliability



Henger Pneumatic Rubber Fenders are constructed of natural rubber, several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation.





2 Patented Active Protecting Safety Valve Design



All Henger Pneumatic Rubber Fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.

3 No Deterioration or Variation in Performance



Henger Pneumatic Rubber Fenders utilize the compressive elasticity of air, therefore performance deterioration due to fatigue is absent.

4 Advantages at Inclined Berthing



Henger Pneumatic Rubber Fenders, energy absorption does not decrease at inclined compression up to 15 degrees.

ISO 17357 Pneumatic Marine Fender Floating Fender Yokohama 5

5. Pneumatic Rubber Fender Application

The are two typical installation type: ship to ship operation and ship to dock operation.

a. ship to ship operation

Generally speaking, two contact points are enough for the light duty ship to ship operation. But 1 or 2 extra pneumatic rubber fender should be used as the primary fender to absorb the berthing energy for the heavy duty ship to ship operation, and keep proper stand-off distance between two ships. Meanwhile, two or more small-size fenders can be hung on the ship hull as the secondary fender.

b. ship to dock operation

Pneumatic fenders are often used for the ship to quay operation because of its excellent performance. The pneumatic fenders are anchored with quay by the guy chain and shackles. Meanwhile, the pneumatic fender can be floated on the water surface depend on the change of tide.





ISO 17357 Pneumatic Marine Fender Floating Fender Yokohama 6

ISO 17357 Pneumatic Marine Fender Floating Fender Yokohama 7

ISO 17357 Pneumatic Marine Fender Floating Fender Yokohama 8







6. Pneumatic Rubber Fender Transportation

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.

ISO 17357 Pneumatic Marine Fender Floating Fender Yokohama 9

ISO 17357 Pneumatic Marine Fender Floating Fender Yokohama 10

ISO 17357 Pneumatic Marine Fender Floating Fender Yokohama 11

7. Pneumatic Rubber Fender storage



1. When the Pneumatic rubber fender is not used for a long time, it should be washed and dried, filled with appropriate compressed air, placed in a dry, cool, ventilated place.Inventory temperature is maintained at -15 ℃ -40 ℃ .

2 .The place where the fender is stored should be kept away from the heat source.

3 .Fenders shall not be in contact with acids, alkalis, greases and organic solvents.

4 .When the fenders are not in use, they must not be stacked and should not be stacked on the ba. In order to better extend the service life of pneumatic rubber fenders, it is recommended that you store them in strict accordance with the above recommendations.

8. After-sale service

The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.

After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
