Boats Ships Vessels Pneumatic Rubber Fender For STS

Key Attributes
Brand Name: Henger
Model Number: Can Be Customized According to Customer Needs ,Minimum diameter 500mm
Place of Origin: China
Certification: International Quality Management System ISO9001:2000 , Chinese Classification Society ( CCS ) , Det Norske Veritas ( DNV ) , British Lowe ( LR )
Minimum Order Quantity: 1 PC
Price: 5000-10000 USD
Supply Ability: Factory direct supply
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Standard Packaging: nude packing or customized

Product Summary

Boats Ships Vessels Pnuematic Rubber Fender For STS 1. Project cases Faced with soaring oil prices, the exploitation of oil and natural gas around the world has also flourished. We have recently received many orders for pneumatic rubber fenders and STS hose from STS projects. Are you also contacting ...

Product Custom Attributes

Highlight

Vessels Pneumatic Rubber Fender

,

50KPa STS Pneumatic Rubber Fender

,

Docking Anti Collision Pneumatic Marine Fender

Material:
Natural Rubber
Color:
Black
Protective Sleeve:
Tyre-chain Net, Rubber Tube For Option
Lifespan:
6-10 Years
IP:
50KPa/80KPa (0.05MPa/0.08MPa)
Warranty:
12 Months/24 Months
Application:
Docking Anti-collision
Diameter:
0.5-6m
Length:
1-10m
Key Word:
Ribbed Pneumatic Fenders
Product Description

Boats Ships Vessels Pnuematic Rubber Fender For STS

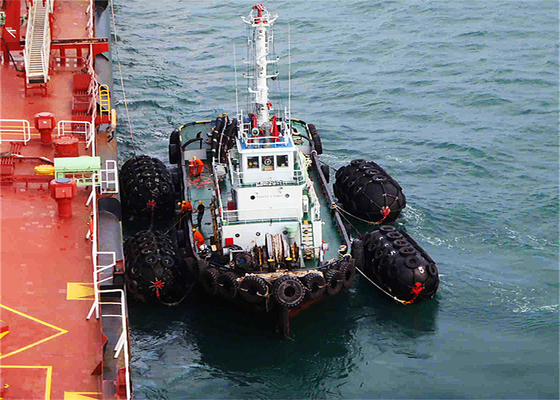

1. Project cases



Faced with soaring oil prices, the exploitation of oil and natural gas around the world has also flourished.

We have recently received many orders for pneumatic rubber fenders and STS hose from STS projects.
Are you also contacting or planning to contact this kind of project?

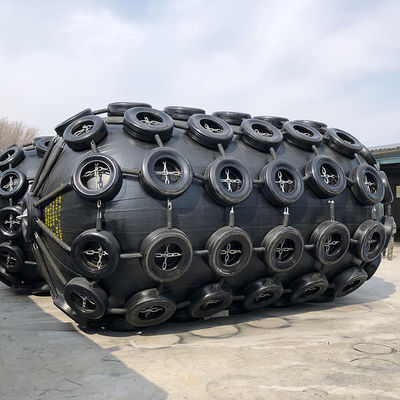

Boats Ships Vessels Pneumatic Rubber Fender For STS 0

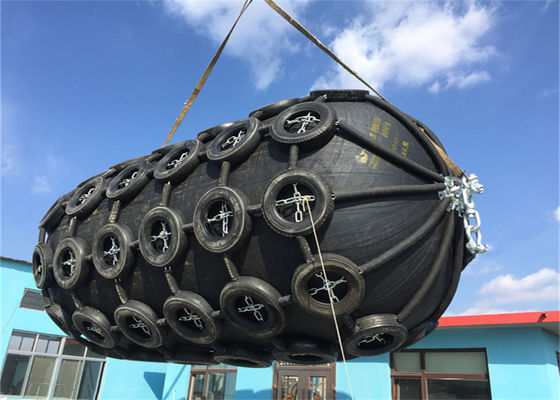

Boats Ships Vessels Pneumatic Rubber Fender For STS 1

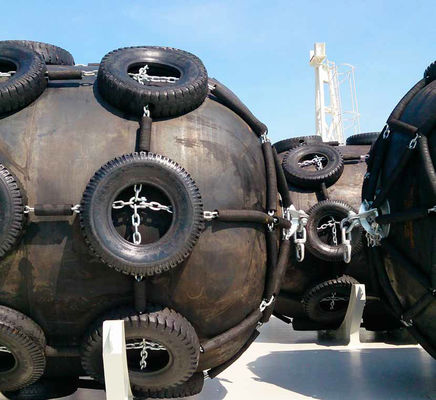

Boats Ships Vessels Pneumatic Rubber Fender For STS 2



2. Pneumatic rubber fender Parameter



Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection(R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10 % kN

Reference value

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154


The common size of pneumatic fender for this project are: 3.3*6.5m 4pcs + 1.2*2m 2pcs

We also look forward to receiving your enquiry. Or if you want to develop the market in this field, we will also use our expertise to provide you with free technical support, we can discuss together.





3. About the quality:

1. With ISO17357 DNV - GL inspection, CCS inspection (Rubber Material Testing, Product Size Testing, Air Tightness Testing, Pressure Testing)

2. The factory quality inspection report issued by Henger, and if the customer needs it, a video inspection certificate can be issued when the product quality inspection is performed before the product leaves the factory. On the premise that the buyer bears the cost, a third-party testing agency can be invited to conduct product testing.



4. About service:

1. In the future, I will be responsible for the business docking of your company, and I will serve the whole process by myself to reduce communication time.

2. I will add you in our company's VIP customer list, and we will deal with your business as the focus in the first time.
