Tap Water Flowstop High Pressure Rubber Pipe Plug For Maintenance

Tap Water Flowstop High Pressure Rubber Pipe Plug For Maintenance
Tap Water Flowstop High Pressure Rubber Pipe Plug For Maintenance Tap Water Flowstop High Pressure Rubber Pipe Plug For Maintenance Tap Water Flowstop High Pressure Rubber Pipe Plug For Maintenance

Large Image :  Tap Water Flowstop High Pressure Rubber Pipe Plug For Maintenance

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: ISO. CCS.BV .SGS
Model Number: DN300-DN3000
Payment & Shipping Terms:
Minimum Order Quantity: 1Pc
Price: USD 125-200 Per Unit
Packaging Details: Pallet
Delivery Time: 5-8 Working day
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 100 Unit Per Week
Detailed Product Description
Application: Pipe Line Sealing Technology: High Pressure, Anti-explosion Type. Whole-wrapping Technol
Working Pressure: 0.10Mpa-0.20MPa Material: Natural Rubber
Size: DN300-DN3000 Thickness: Customized
Color: Black Package: Pallet
High Light:

Tap Water Flowstop Rubber Pipe Plug

,

DN300 Maintenance Rubber Pipe Plug

,

CCS Rubber Pipe Stopper

Tap Water Flowstop Pipeline Water Blocking Airbags For Maintenance

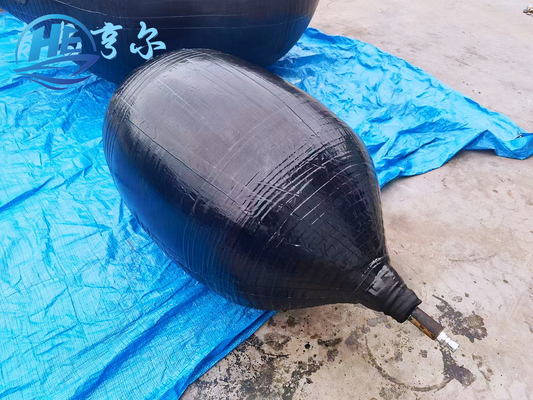

Pipeline plugging airbag Pipeline plugging airbag is a multi-specification and multi-shaped rubber used for pipelines, culverts, sewage, sludge removal and maintenance made of polymer synthetic materials such as rubber and fiber fabrics through a high-temperature vulcanization process. It can quickly block the water flow on different pipe diameters, different planes and different positions, and is an ideal tool for underground pipelines for drainage and sludge treatment. The construction method of the pipeline blocker (pipe blocking airbag) The working principle of the pipeline blocking airbag for water blocking is to use the pipeline blocking airbag made of high-quality rubber to expand it by inflation. When the gas pressure in the water blocking airbag reaches the specified value When required, the water blocking airbag fills the entire pipeline section, and the frictional force generated by the pipe blocking airbag wall and the pipeline is used to block the water leakage, so as to achieve the purpose of no water seepage in the target pipe section.

The models of pipeline blocking airbags are: pvc air nozzle capsule, composite water closing plug, air nozzle water closing plug, double-isolated inflatable capsule

The pipeline blocking airbag is especially suitable for the maintenance and testing work such as closed water test, closed air test, leakage point search, temporary water blocking for pipeline maintenance after sealing the drainage pipeline.

Tap Water Flowstop High Pressure Rubber Pipe Plug For Maintenance 0



Tap Water Flowstop High Pressure Rubber Pipe Plug For Maintenance 1



Pipeline Plugging Water Stop Airbag Specification



Type accurate dia.(mm) pip dia. pneumatic pressure(Mpar) pneumatic pressure(Mpar) pneumatic pressure(Mpar)
DN300 298 300 0.1 0.16 0.2
DN400 400 400 0.1 0.16 0.2
DN500 499 500 0.1 0.16 0.2
DN600 600 600 0.1 0.16 0.2
DN800 800 800 0.1 0.16 0.2
DN1000 998 1000 0.1 0.16 0.2
DN1200 1200 1200 0.1 0.16 0.2
DN1350 1350 1350 0.1 0.16 0.2
DN1400 1400 1400 0.1 0.16 0.2
DN1500 1500 1500 0.1 0.16 0.2
DN1600 1600 1600 0.1 0.16 0.2
DN1650 1650 1650 0.1 0.16 0.2
DN1800 1800 1800 0.1 0.16 0.2
DN2000 2000 2000 0.1 0.16 0.2
DN2500 2500 2500 0.1 0.16 0.2
DN3000 3000 3000 0.1 0.16 0.2



The pipeline blocking airbag is mainly aimed at the pipeline blocking of horizontal pipelines (ie horizontal pipelines), and is characterized by:

1. Oval type, the contact area of ​​the pipe is not much, but it is easy to plug into the pipe, and the water blocking effect is average.

2. Simple operation, light weight, small size, economical and practical.

3. The airbag can be bent 180 degrees freely and has certain corrosion resistance.

4. Super expansion.

The pipeline water blocking bladder is made of reinforced natural rubber. Before delivery, each pipeline water blocking bladder will be tested under the conditions of 1.5 times the rated working pressure and the corresponding type of pipe diameter. In order to ensure the strength of the pipeline water blocking airbag structure, we use a safety factor that is three times the rated working pressure of the pipe sealer.

The pipeline water blocking air bag is composed of air bag, pressure gauge, tee, 6 meters long special air pressure hose, and pump. In the building floor closed water test, it can withstand the natural pressure of 2-6 floors of water.

The pipeline water blocking airbag is especially suitable for the maintenance and testing work such as closed water test, closed air test, leak point search, temporary water blocking for pipeline maintenance after sealing the drainage pipeline.



The pipeline water blocking airbag is mainly aimed at the pipeline blocking of the riser (that is, the pipeline inserted from the inspection port). The characteristics are:

1. The operation is intuitive, directly observe the pressure operation of the pressure gauge, and inflate according to the standard pressure.

2. The body size is small, easy to plug into the pipeline, economical and practical.

3. The airbag can be bent 180 degrees freely and has certain corrosion resistance.

4. It is made of reinforced natural rubber with super expansion.
