| Product Name: | EVA Foam Fender/Foam Solid Filled Fender/Solid Fender | Brand: | HENGER |
|---|---|---|---|
| Material: | High Density Foam/Polyurea Coating | Production Time: | 5-10 Days |
| Service Life: | 10-15Years | Certificate: | CCS / BV / LR / ISO17357/DNV |
| High Light: | Polyurea Coating Marine Boat Fender,Foam Filled Marine Boat Fender,OEM Foam Filled Fender |
||
High Quality Marine Boat Fender Foam Filled Fender All Size Can Customize

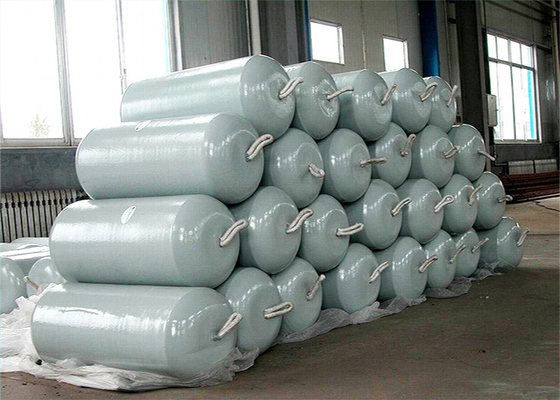

The foam fender, designed based on a heat laminated 100% closed cell foam core and a tough and thick nylon filament reinforced polyurethane skin and embedded end fittings. Fenders convince with high energy absorption, hull conforming capabilities, non-marking skin and low maintenance.
Fenders are available in diameters from 500 mm to 4,500 mm and lengths from 800 mm to 10,600 mm, different foam hardness grades as well as special shapes and sizes. The fenders could be installed with a two or four point mounting system, depending on the application.
Standard colors are black and orange, individual skin colors available upon request.
| Model |
D (mm) |
L (mm) |
Compression 60% | Reference Weight(kg) | |
| Counter-force(KN) |
Energy Absorption (KJ) |
||||
| Ø 500×1000L | 500 | 1000 | 71 | 8 | 34 |
| Ø 600×1000L | 600 | 1000 | 86 | 12 | 45 |
| Ø 700×1500L | 700 | 1500 | 161 | 27 | 101 |
| Ø 1000×1500L | 1000 | 1500 | 205 | 49 | 206 |
| Ø 1000×2000L | 1000 | 2000 | 274 | 64 | 275 |
| Ø 1200×2000L | 1200 | 2000 | 337 | 93 | 405 |
| Ø 1200×2400L | 1200 | 2400 | 390 | 110 | 475 |
| Ø 1350×2500L | 1350 | 2500 | 463 | 145 | 626 |
| Ø 1500×3000L | 1500 | 3000 | 624 | 216 | 927 |
| Ø 1700×3000L | 1700 | 3000 | 696 | 273 | 1191 |
| Ø 2000×3500L | 2000 | 3500 | 990 | 456 | 1923 |
| Ø 2000×4000L | 2000 | 4000 | 1110 | 505 | 2298 |
| Ø 2200×4500L | 2200 | 4500 | 1396 | 679 | 2992 |
| Ø 2500×4000L | 2500 | 4000 | 1386 | 781 | 3434 |
| Ø 2500×5000L | 2500 | 5000 | 1750 | 985 | 4272 |
| Ø 3000×5000L | 3000 | 5000 | 2050 | 1410 | 6411 |
| Ø 3000×6000L | 3000 | 6000 | 2460 | 1695 | 7293 |
| Ø 3300×6500L | 3300 | 6500 | 2950 | 2245 | 8335 |
| Ø 4500×9000L | 4500 | 9000 | 19650 | 7860 | 21460 |
if there is customizing size requirement, please kindly contact our sale service staff.
Proportional increase of energy and reaction
Extremely robust
No performance loss and unsinkable even if damaged
Smaller skin damages can easily be repaired on site
Low hull pressure and non-marking Polyurethane skin
Navy vessel berths and cruise terminals
Ship-to-ship operations
Ship-to-shore operations
Oil & Gas Terminals
