High Pressure 1.5*14m 4-10 Layers Ship Rubber Airbags
Marine Rubber Airbag Introduction
Marine Rubber Airbag also known as rubber airbag, ship air bags, ship launching airbag, ship salvage airbag, boat salvage airbags, inflatable airbag, ship lifting bag, air balloon, made by rubber & multi layer of rubber-dipped tyre fabric.
Marine Rubber Airbag are widely used in launching and landing ship/ boat/vessel, lifting and moving heavy goods, salvaging stranded boats.
Marine Rubber Airbag are very popular with shipyard, ship owner, and marine supplies company now.
Product Advantage
The possibility of air leakage in the joint area of metal part and rubber part is also increasing as working pressure of airbag is added. After using for times under high working pressure, the airbag would burst and metal part would hurt workers.
Henger invented new anti-explosion design of the airbag end part, increasing the bonding strength and air tightness between rubber body part and end metal part. Henger airbag is working very well under higher working pressure without potential safety hazard.
Framework
“HENGER” airbag structure are consist of the outer rubber + synthetic cord reinforced rubber layers.
Its shape characteristics: central body cylindrical + tapered on both ends.
Cord layers: 4,5,6,7,8,9,10,11,12 layers.
Accessories of Airbag
Pressure gage Pipe fitting Inlet valve Seal end ring
Specifications
| Diameter | Working Pressure | Working height | Bearing capacity per unit length | |
| KN/m | Ton/m | |||
| D=1.0m | 0.20Mpa | 0.6m | 125.76 | 12.82 |
| 0.5m | 157.16 | 16.02 | ||
| D=1.2m | 0.17Mpa | 0.7m | 133.61 | 13.62 |
| 0.6m | 160.3 | 16.34 | ||
| D=1.5m | 0.13Mpa | 0.9m | 112.63 | 12.5 |
| 0.8m | 143.03 | 14.58 | ||
| 0.7m | 163.43 | 16.66 | ||
| D=1.8m | 0.11Mpa | 1.1m | 120.96 | 12.33 |
| 1.0m | 138.22 | 14.09 | ||
| 0.9m | 155.59 | 15.86 | ||
| 0.8m | 172.85 | 17.62 | ||
| 0.7m | 190.22 | 19.39 | ||
| D=2.0m | 0.10Mpa | 1.2m | 125.76 | 12.82 |
| 1.1m | 141.46 | 14.42 | ||
| 1.0m | 157.16 | 16.02 | ||
| 0.9m | 172.85 | 17.62 | ||
| 0.8m | 188.64 | 19.23 | ||
Application

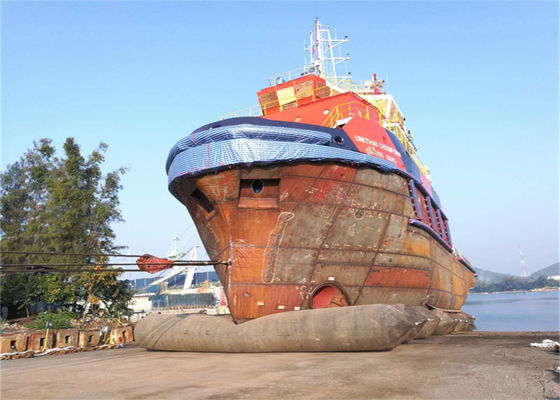

1.Ship Launching & Upgrading

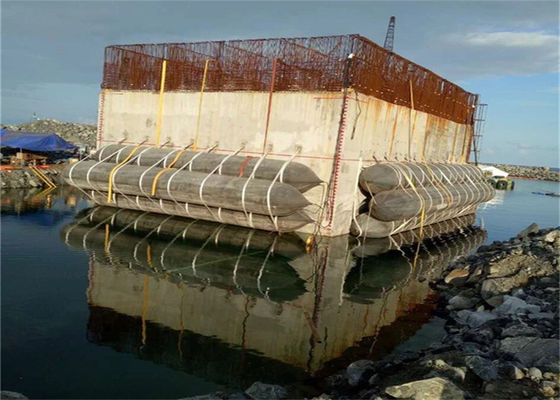

2.Weight Lifting & Moving

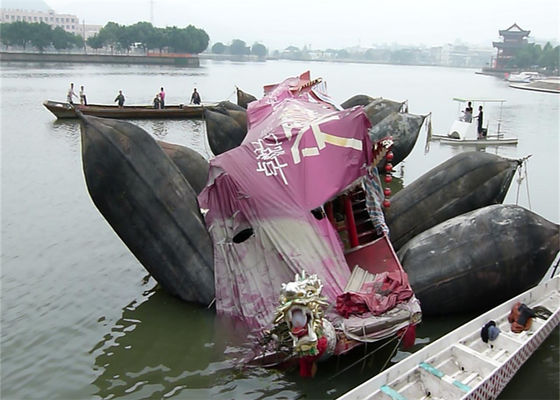

3.Buoyancy Aid & Salvage
If you want to work with us, please contact me.
Our Services
1.One-to-one VIP service.
2.Lifelong after-sale service.
3.Professional suggestions for suitable marine rubber airbag size and quantity.
4.Teach customers to use the marine rubber airbag on site .
5.Any questions will be replied within 24 hours.
1. Minimum Order Quantity ( MOQ): 1 Pcs
2. Delivery time: 7 days ( depends on the quantity of order)
3. Certificates: ISO 9001:2008, CCS, SGS, BV etc.
4. Production standard: ISO14409 & GB/T 3795-1996
5. Expected lifespan: 10-15 years.
6. Warranty period: 24 Monthes
7. Factory direct selling of Marine rubber airbags Please inquiry our salespersons for the best price.
