specification of natural rubber yacht boat floating dock fender
Henger pneumatic rubber fenders have a three-layer body (as per ISO 17357:2014): outer layer, tire cord and inner layer. The fenders have a standard internal pressure of 50kPa and can also be delivered with 80kPa.
1.Net-type fender: fenders which are covered by a tire chain net, each end shall be linked together with one to two ring(s).
2.Sling-type fender: fenders which are designed to be used without a protection net.
Initial internal pressure:
1.Pneumatic fender 50 (initial internal pressure 50 KPa)
2.Pneumatic fender 80 (initial internal pressure 80 KPa)

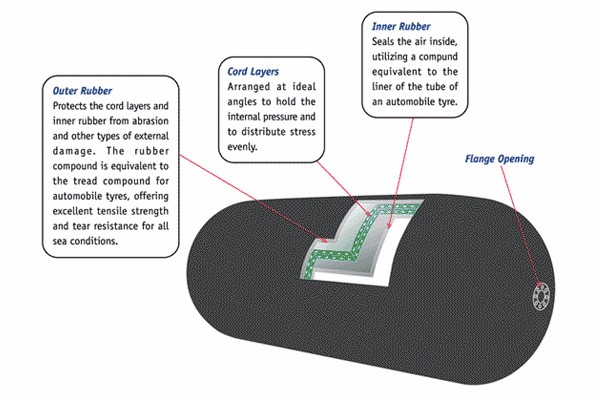

1)Outer rubber layer
Rubber layer that covers the outside of the fender to protect the cord layers and the inner liner rubber from
abrasion and other external forces.
2)Inner rubber layer
liner of a rubber membrane that seals the pressurized air inside the fender.(In general,we will make some inner
rubber container in advance and inflate them.few days later,we will test the pressure again.The one which it's
pressure did not change is good one.We will put it into store and when clients order we can use it directly.
This can ensure every fender we send to client is airtight one)
3)Synthetic-tyre-cord layer for reinforcement layer
layer made of synthetic-tyre-cord fabric which maintains the internal air pressure of the fender.
which is mounted on the fender to which an air valve can be adapted.(our flange are all
Embedded welding, very stable)
5)Initial internal pressure
Air pressure at which an uncompressed fender operates.
Logistic supply operation and / or marine salvage of naval fleet; For large tankers,normally 4-6 sets of pneumatic rubber fenders are hanged at the water line of the shipside. A hanging example of fenders is shown in the figure right.When 4 fenders are used,2 sets are placed at the front and 2 sets at the rear,they are all large scale fenders.In case 6 fenders are hanged on the shipside,1 small fender will be placed at ship bow and another small fender at ship stern.
When fenders are not used,they should be craned to the deck and placed on the anti-rolling seats.

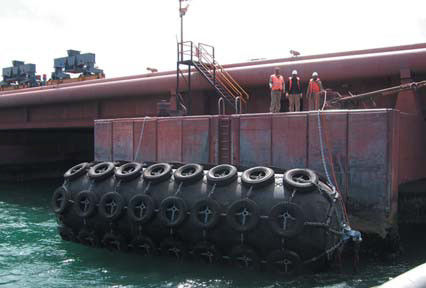

In recent years,there is a new upsurge of wharf and port building.Because of the super large ships,the berthing collision energy is multiplied.Due to the low energy absorption and large reaction force of previous rubber fenders at the wharfs, The ship side and docks usually may be damaged.The low compression reaction force property of pneumatic rubber fender conforms to the dock construction light-weighting trend and protects the ship side from damage as well.Therefore,Florescence Pneumatic rubber fenders are widely used in large-scale docks,wharves and offshore platforms.
Henger manufactures Pneumatic Rubber Fenders in a wide range of sizes. We can offer sizes from 0.5m diameter and 1m length up to 4.5m diameter and 12m length. The Henger series comes with or without chain and tire netting made of used truck tires (aircraft tires are optional).
Henger Pneumatic Rubber Fenders are manufactured and tested in accordance with ISO 17357:2014. This is the only standard ensuring the high quality of fenders. Our fenders are suitable for all marine conditions and built to withstand the harsh forces involved in STS and STD operations.
Henger series fenders can be delivered with class certification (BV/CCS/ABS/DNV etc.).

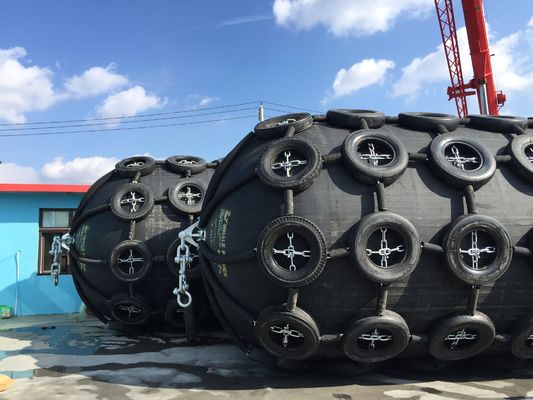

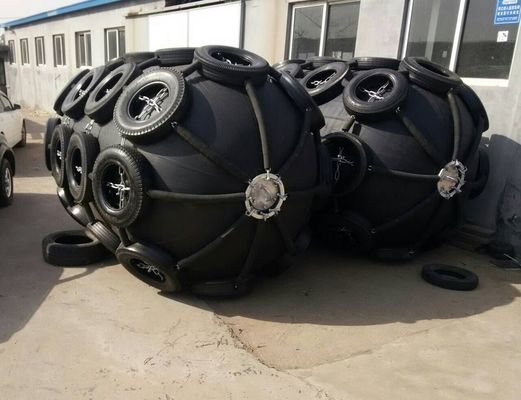

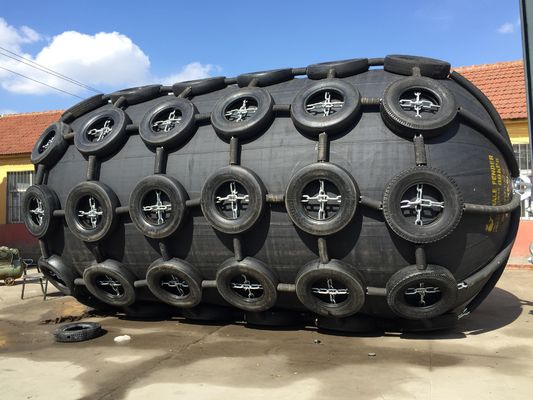

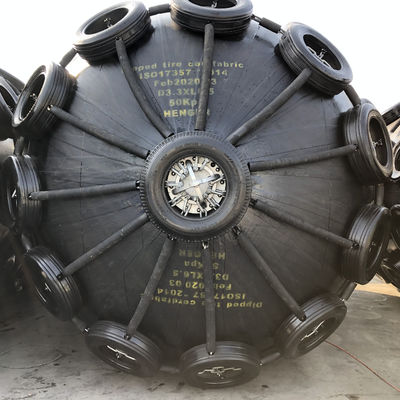

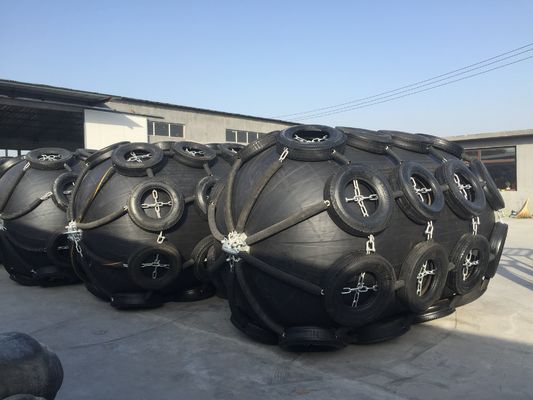

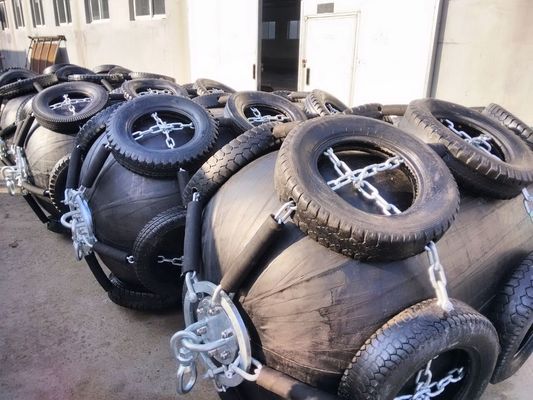

Henger Pneumatic Rubber Fenders Photos of different size
At Henger, we have a strong focus on developing the fender business further to meet the demands of tomorrow. Next to high quality, innovation is one of our main objectives. We are now introducing our new Henger submarine pneumatic fender to customers worldwide.
The Henger submarine series covers all the most popular sizes of Pneumatic Rubber Fender with Tire Chain Net.
Our submarine pneumatic fender system is developed to provide our customers with a additional weight that offers low maintenance costs and safe operation in harsh conditions.
Qingdao Henger Marine Supplies Co.,Ltd.specialized in manufacturing marine airbags and pneumatic rubber fenders from 2005.
We have established long-term cooperation relationship with many shipyards and ship owners, trading companies in China mainland.
We also export to Malaysia, Singapore, India, Indonesia, Philippinesand many other countries in the world .
1."I have ships but don't know how to choose the size of marine fenders ,can you help me."
Answer: Don't worry .We have more than 20 years' experience. Pls tell me information of your ship, we can suggest suitable size for you.
2."I want to try your marine fenders, but I never use it and don't know how to use ,can you help me?"
Answer: Don't worry. We will send instruction book together with marine fenders.
3."What's your MOQ?"
Answer: Our MOQ is 1PC.
4."How about the lifespan of your marine fenders?"
Answer: Designed lifespan of our marine fender is 6 to 12 years
5."What's your warranty period ?"
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.
6."What kind of certificate can you provide ?"
Answer: CCS, SGS, BV, ISO17357 etc. certificate is available
