Payment & Shipping Terms:
|Size:||Customized Size,As Per Customer's Requirements||Packing:||Standard Package,Normal Packing|
|Warranty:||24 Months||Certification:||CCS BV Certification ISO17357 ISO9001,LR,CCS|

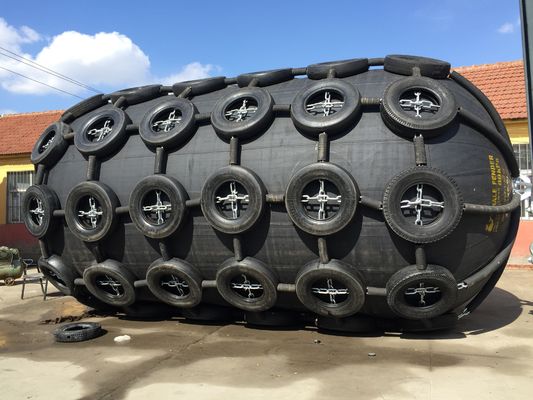

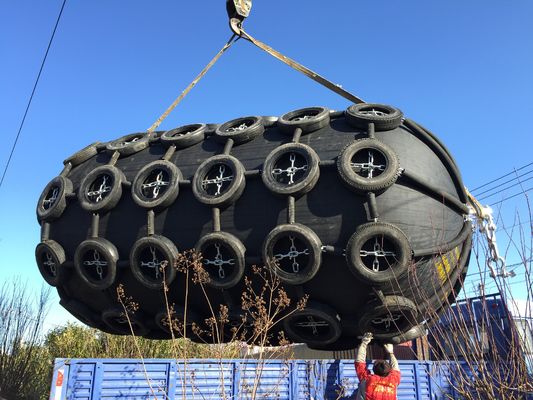

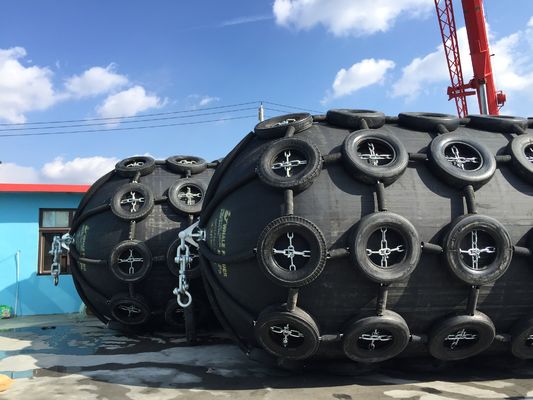

3.3D*6.5L Yokohama Rubber Fender,
50kpa Yokohama Rubber Fender,
50kpa d type rubber fender
1. Pneumatic rubber fender introduction
What is Pneumatic Rubber Fender?
The "Yokohama Type Pneumatic Rubber Fender" was developed in 1958. Progress in the development of such floating pneumatic rubber fenders is closely related to the progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures. Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today, more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers. These fenders play a critical role in the safe operation of ship berthing and mooring
|Pneumatic 50 fender size and performance requirements|
|Guaranteed energy absorption (GEA)||Reaction force at GEA deflection(R)||Hull pressure (Internal pressure) at GEA deflection (P)|
|Minimum value at deflection 60±5% kJ||Tolerance±10 % kN|
|500 x 1000||50||6||64||132|
|600 x 1000||50||8||74||126|
|700 x 1500||50||17||137||135|
|1000 x 1500||50||32||182||122|
|1000 x 2000||50||45||257||132|
|1350 x 2500||50||102||427||130|
|1500 x 3000||50||153||579||132|
|1700 x 3000||50||191||639||128|
|2000 x 3500||50||308||875||128|
|2500 x 4000||50||663||1381||137|
|3300 x 4500||50||1175||1884||130|
|3300 x 6500||50||1814||3015||146|
|3300 x 10600||50||3067||5257||158|
|4500 x 9000||50||4752||5747||146|
|4500 x 12000||50||6473||7984||154|
|Pneumatic 80 fender size and performance requirements|
|Guaranteed energy absorption (GEA)||Reaction force at GEA deflection (R)||Hull pressure (Internal pressure) at GEA deflection (P)|
|Minimum value at deflection 60±5% kJ||Tolerance±10% kN|
|500 x 1000||80||8||85||174|
|600 x 1000||80||11||98||166|
|700 x 1500||80||24||180||177|
|1000 x 1500||80||45||239||160|
|1200 x 2000||80||88||390||166|
|1350 x 2500||80||142||561||170|
|1500 x 3000||80||214||761||174|
|1700 x 3000||80||267||840||168|
|2000 x 3500||80||430||1150||168|
|2500 x 4000||80||925||1815||180|
|2500 x 5500||80||1317||2653||195|
|3300 x 4500||80||1640||2476||171|
|3300 x 6500||80||2532||3961||191|
|3300 x 10600||80||4281||6907||208|
|4500 x 9000||80||6633||7551||192|
|4500 x 12000||80||9037||10490||202
1. Guaranteed energy absorption
2. Chain tyre net and sling type
3. Thick skin construction
4. Good angular performance
5. Less surface pressure onto the side wall of ships. (The capability of accepting surface pressure of the fender is up to 14 ton/m2).
6. No reduction on the performance of compression when inclined.
7. Suitable for areas with large or small tides.
8. Suitable in cold weather because the compressed air as buffering medium.
9. Especially in mooring of large scale ships in sea docks and lightering.
10. Maintains large clearances between hull and structure
Qingdao Henger Marine Supplies Co., Ltd. has long been committed to the product development, production and sales of lifting and moving airbags, inflatable rubber fenders (by ball), and solid polyurethane fenders for the upper and lower discharges of ships. Testing equipment, strict quality management system, the product selection of high-quality materials and special explosion-proof technology, smooth appearance, wear resistance, aging resistance, good air tightness, high strength, long service life, excellent quality, and passed ISO9001: 2000 international quality management system certification, and China Classification Society (CCS) quality certification, and exported to the United Kingdom, Italy, Germany, Pakistan, Malaysia, Singapore, South Korea and other countries and regions, and provide product services for large-scale national construction (Rubber fender, handling air bag, air bag mandrel).
Rubber fender is one of the inflatable fender products and one of the most advanced fender products in the world. It uses compressed air as a buffer medium to absorb the impact energy of the hull, which is similar to the general compressed rubber fender products. It has a special air-impact function, so it is an ideal protective equipment for ships when berthing at sea and port terminals.
Service and transportation:
The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.
After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.
Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
Thank you for reading. If you have any needs and interests, you can contact me.
