Best Supplier 2.5*4m marine pneumatic rubber fender with galvanized and tyre sheath for dock and ship 1. Pneumatic rubber fender Introduction Pneumatic rubber fender is one kind of ship berthing, cushioning and protection equipment, which uses compressed air as the buffer medium to prevent collision ...

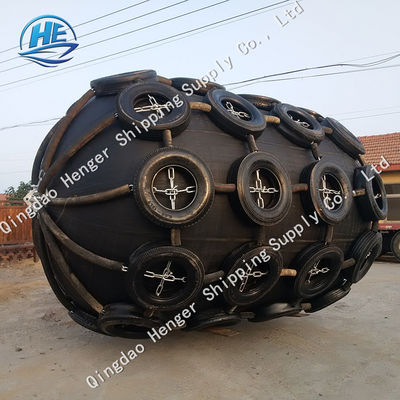

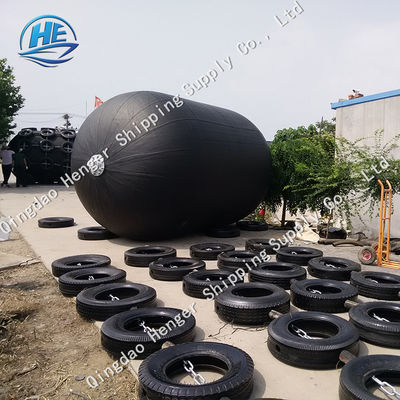

Best Supplier 2.5*4m marine pneumatic rubber fender with galvanized and tyre sheath for dock and ship
Pneumatic rubber fender is one kind of ship berthing, cushioning and protection equipment, which uses compressed air as the buffer medium to prevent collision when the ship is berthing. The pneumatic rubber fender is more economical and durable than the ordinary rubber fender, so it is more popular and widely used.
Pneumatic Rubber Fender is a leading anti-collision device for marine application in the world today and has become an idea ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbors and wharves.
| Pneumatic 80 fender size and performance requirements | ||||
|
Nominal size diameter x length |
Initial internal pressure |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10% kN |
Reference value |
||
| 500 x 1000 | 80 | 8 | 85 | 174 |
| 600 x 1000 | 80 | 11 | 98 | 166 |
| 700 x 1500 | 80 | 24 | 180 | 177 |
| 1000 x 1500 | 80 | 45 | 239 | 160 |
| 1000 x2000 | 80 | 63 | 338 | 174 |
| 1200 x 2000 | 80 | 88 | 390 | 166 |
| 1350 x 2500 | 80 | 142 | 561 | 170 |
| 1500 x 3000 | 80 | 214 | 761 | 174 |
| 1700 x 3000 | 80 | 267 | 840 | 168 |
| 2000 x 3500 | 80 | 430 | 1150 | 168 |
| 2500 x 4000 | 80 | 925 | 1815 | 180 |
| 2500 x 5500 | 80 | 1317 | 2653 | 195 |
| 3300 x 4500 | 80 | 1640 | 2476 | 171 |
| 3300 x 6500 | 80 | 2532 | 3961 | 191 |
| 3300 x 10600 | 80 | 4281 | 6907 | 208 |
| 4500 x 9000 | 80 | 6633 | 7551 | 192 |
| 4500 x 12000 | 80 | 9037 | 10490 | 202 |
1. Guaranteed energy absorption
2. Chain tyre net and sling type
3. Thick skin construction
4. Good angular performance
5. Less surface pressure onto the side wall of ships. (The capability of accepting surface pressure of the fender is up to 14 ton/m2).
6. No reduction on the performance of compression when inclined.
7. Suitable for areas with large or small tides.
8. Suitable in cold weather because the compressed air as buffering medium.
9. Especially in mooring of large scale ships in sea docks and lightering.
10. Maintains large clearances between hull and structure
Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
Pneumatic Rubber Fenders are suitable for many applications including:
1. Tankers, Gas Carries and Bulk Cargo Ships;
2. Fast ferries and aluminum hulled vessels;
3. Temporary of permanent installations;
4. Rapid response and emergency fendering;
5. As stand-off fenders to realign ships with shore facilities.
1. When the Pneumatic rubber fender is not used for a long time, it should be washed and dried, filled with appropriate compressed air, placed in a dry, cool, ventilated place.Inventory temperature is maintained at -15 ℃ -40 ℃ .
2 .The place where the fender is stored should be kept away from the heat source.
3 .Fenders shall not be in contact with acids, alkalis, greases and organic solvents.
4 .When the fenders are not in use, they must not be stacked and should not be stacked on the ba. In order to better extend the service life of pneumatic rubber fenders, it is recommended that you store them in strict accordance with the above recommendations.
1. Install the inflatable rod
2. Remove the valve core with the wrench
3. Link up quick connector inflation, inflation pressure 0.05-0.08mpa, recommended pressure 0.05mpa.
4. pressure by gauge
5. Screw the valve core with the wrench
Quality is the cornerstone, service is the soul.
We continue to provide our customers with stable & reliable quality pneumatic rubber fenders with a comprehensive system of technical support, meticulous and thoughtful after-sales service to win customers trust and satisfaction.
Qingdao Henger Shipping Supplies Co., Ltd provides following services to all customers.
1. 24 hours instant online technical consultation and support.
2. 24 months warranty period(without any artificial damage) and free repairing service within warranty period.
3. lifetime reparing service.
Q: What’s the material of your pneumatic fender products ?
A: the main raw materials are natural rubber, synthetic-tyre-cord fabric and customized hardwares, etc.
Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao airport, which is convenient in transportation logistics.
Q: Is OEM service available ?
A: yes
Q: What’s the delivery time and payment terms ?
A: Delivery time is based on product model and order quantity. normally it is around 7-15 working days.
The payment could paid by T/T, L/C, Western Union, Paypal, etc.
