Product Details:
Payment & Shipping Terms:
|
| Material: | Natural Rubber | Application: | Ship Launching |
|---|---|---|---|
| Diameter: | 0.8 /1.0 / 1.5 / 1.8 / 2.0 / 3.0 / 4.0m | Working Pressure: | 0.05MPa-0.17MPa |
| Color: | Black | Size: | Customized Size |
| Layer: | 5/ 6/ 7 / 8 / 9 / 10 Layers | Packing: | Pallet |
| High Light: | 12 Layers Marine Rubber Airbag,1.5*8m Marine Rubber Airbag,4 Layers boat launching airbag |
||

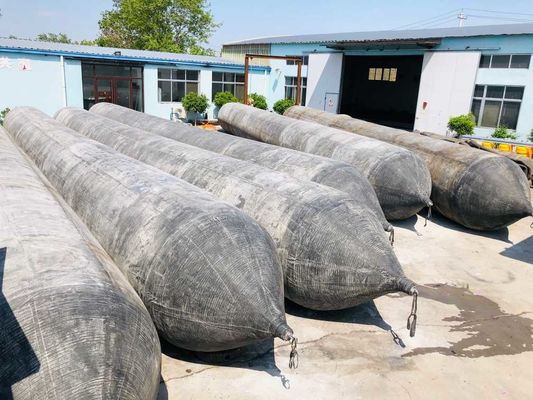

Natural Rubber 1.5*8m 4-12 Layers Marine Rubber Airbag Boat Launching
If you want to work with us, please contact me.
My email address: ediwn-xaio@hengergroup.com
My WhatsApp: +86 13371482686
Product Advantage
1. Our rubber has passed SGS certificate, and the rubber content has reached more than 60%. As you know the quality of rubber determines the service life and frequency of the airbag.
2. Our ship launching airbag uses reinforced synthetic cords, which doubles its carrying capacity.
3. There are explosion-proof designs on both ends, which improves the degree of bonding between the rubber theme and the metal parts, ensures air tightness, and solves hidden safety hazards to prevent explosions.
Manufacturing technology
Whole Intertwine Technology
"HENGER" Airbags overall frame structure uses cross whole intertwine technology, the overall structure is more reasonable, texture clear, no juncture, high loads, more safety than lap technology (roller), more than 20% bearing capacity.
Framework
“HENGER” airbag structure are consist of the outer rubber + synthetic cord reinforced rubber layers.Its shape characteristics: central body cylindrical + tapered on both ends. Cord layers: 4,5,6,7,8,9,10,11,12 layers.
Specifications
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
Marine Rubber Airbag Application

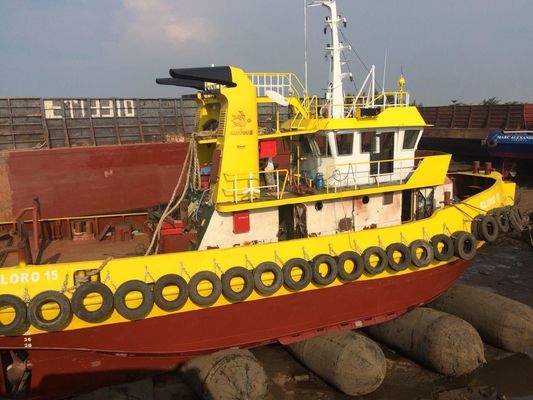

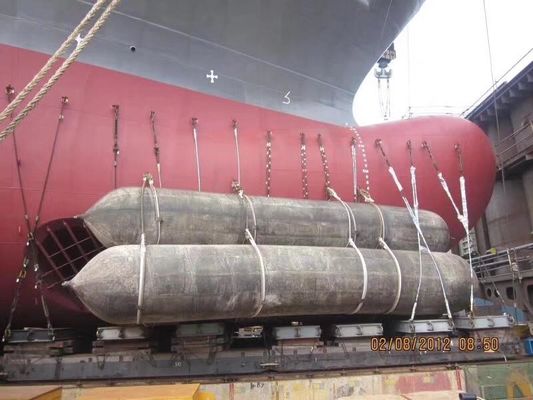

1.Ship Launching & Upgrading
2.Weight Lifting & Moving
3.Buoyancy Aid & Salvage
1.One-to-one VIP service.
2.Lifelong after-sale service.
3.Professional suggestions for suitable marine rubber airbag size and quantity.
4.Teach customers to use the marine rubber airbag on site .
5.Any questions will be replied within 24 hours.
Qingdao Henger Shipping Supplies Co., Ltd
Lies in Qingdao, a beautiful coastal city. Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as pneumatic rubber fenders, foam filled fenders, marine rubber airbags, navigation mark, marine buoys, highway safety roller barrier. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
