Marine Launching Ship Airbag Marine Launching Ship Airbag are widely used worldwide. They are less restricted by space, saving unnecessary costs. Through development and practice, marine rubber airbags are very safe and environmentally friendly. Ship Rubber Balloon Airbag Introduction Marine ...
Marine Launching Ship Airbag are widely used worldwide. They are less restricted by space, saving unnecessary costs. Through development and practice, marine rubber airbags are very safe and environmentally friendly.
Ship Rubber Balloon Airbag Introduction

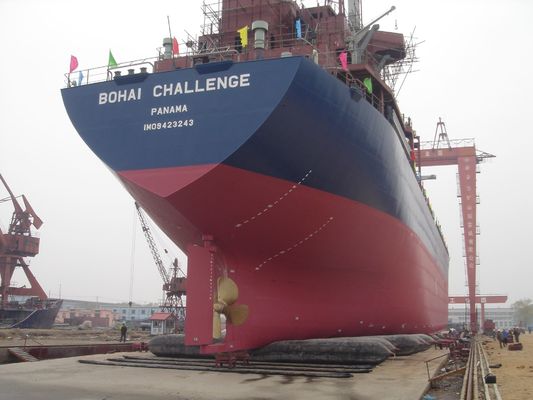

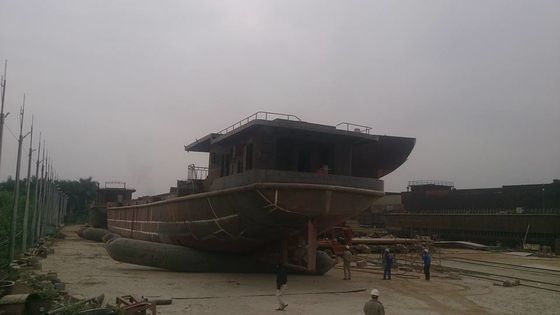

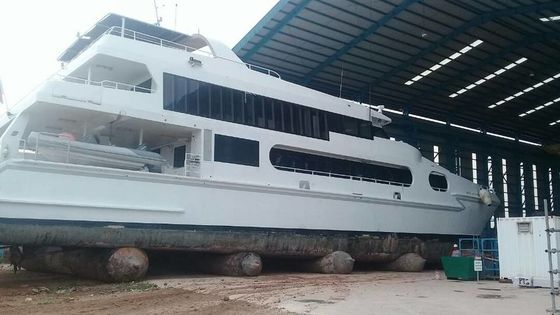

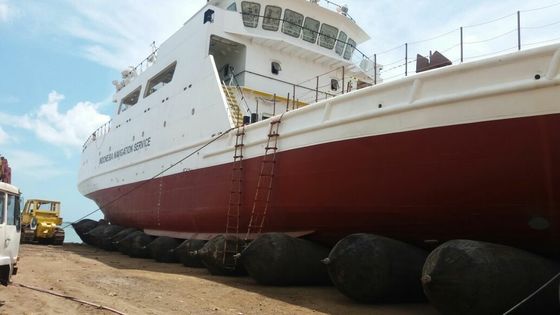

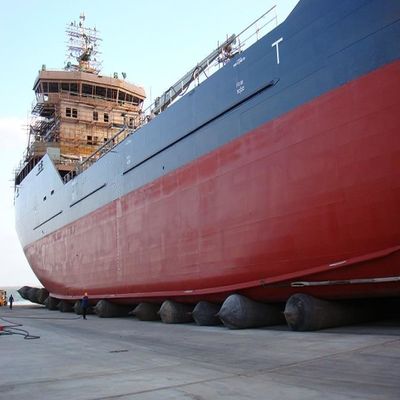

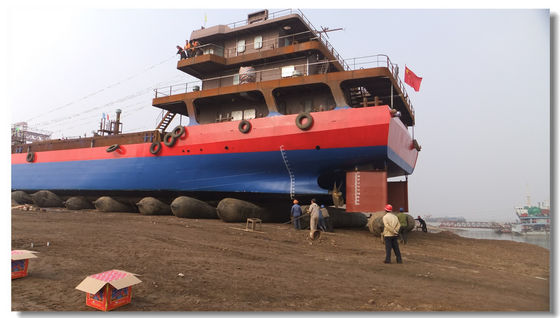

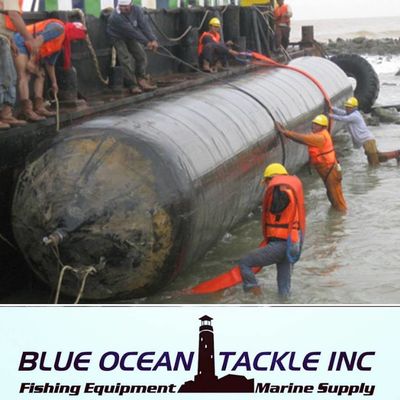

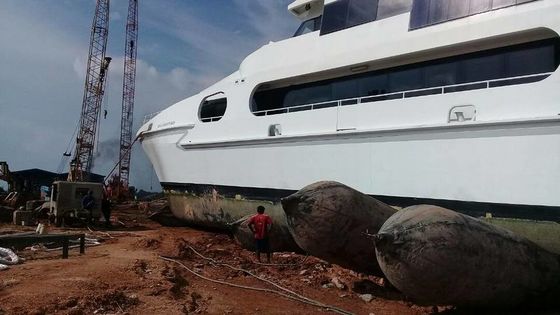

Marine Launching Ship Airbag are widely used worldwide. They are less restricted by space, saving unnecessary costs. Through development and practice, marine rubber airbags are very safe and environmentally friendly. The marine launching airbag is an innovative product with independent intellectual property rights in my country. The product is mainly used for ship launching, lifting, loading and unloading, installation of underwater buoyancy aids, etc.
Ship Airbag Parameter
| Diameter(m) | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | |
| Medium Pressure (4-5) |
Test Pressure | 0.14-0.16 | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 |
| Working Pressure | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 | 0.06-0.08 | |
| High Pressure (6-8) |
Test Pressure | 0.22-0.26 | 0.20-0.24 | 0.15-0.20 | 0.13-0.16 | 0.12-0.15 |
| Working Pressure | 0.20-0.24 | 0.17-0.22 | 0.13-0.18 | 0.11-0.14 | 0.10-0.13 | |

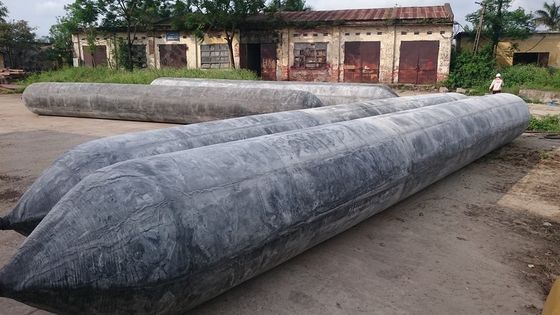

Some normal sizes of our Marine Rubber Airbag, customized sizes are also available
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
Ship Launching Airbag Advantage
High Bearing Capacity
We adopted a new rubber formula and used a high-strength reinforced synthetic cord layer to increase the carrying capacity of the airbag by more than twice. The synthetic cord layer of Henger Marine Launching Ship Airbag adopts impregnated Nylon-6 1400dtex / 3-V2 tire cord. Compared with ordinary polyester tire cord, its strength and durability are increased by 20%.
High Kneading-resistance Capability
When the airbag rolls under the bottom of the ship, the rolling speed is uneven, and the airbag will withstand the "kneading force" from the bottom of the ship and the ground, which may cause problems such as delamination and buckling.
We (Henger) improved the manufacturing process and raw material formula to enhance the anti-kneading ability of the Marine Launching Ship Airbag to avoid more serious accidents, and each layer is coated with a specially formulated adhesive to dissolve dust and impurities. The use of specially formulated mucus also improves the adhesion between the layers to ensure air tightness.
Company introduction
Qingdao Henger Shipping Supplies Co., Ltd
Henger is committed to building a high-tech production company in Qingdao, China. Our products will become world-class competitive products. We will also strive to become a first-class marine product manufacturer, providing all customers with high-quality products and perfect services, and shouldering the responsibility of mutually beneficial cooperation with friends from all over the world to ensure global marine safety. responsibility. Providing customers with the highest quality service is our aim.
