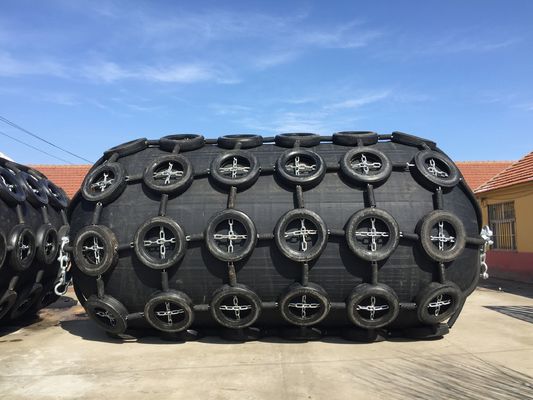

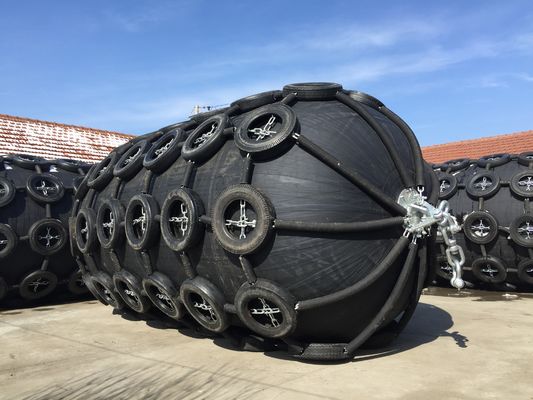

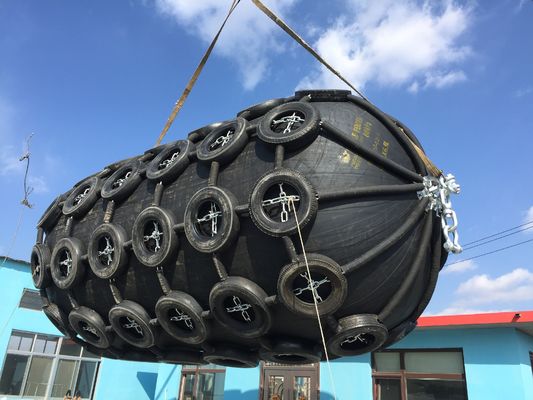

Marine Yokohama 2.5*4m Inflatable Jetty Pneumatic Rubber Fender Sea Guard

Best Marine 1.5*3m Jetty Inflatable Buoyancy Yokohama Rubber Fender

1.Type of Yokohama Rubber Fender

2.introduction of Yokohama Rubber Fender

Progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.

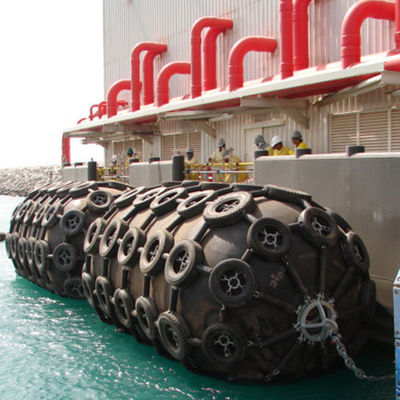

Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.

Since its creation until today, Henger more than 10,000 fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations serving our valuable customers.These fenders play a critical role in the safe operation of ship berthing and mooring.

3. Structure of Yokohama Rubber Fender

4.Technology Data of Yokohama Rubber Fender

5.Advantage of Yokohama Rubber Fender

5.1 Safety and Reliability

Yokohama Pneumatic Rubber Fenders are constructed of several layers of strong
tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the
design of this fender is based on accepted theory and has been proven by extensive
experimentation. Operational experience over a long period of time attests to its high
safety and reliability, and hydraulic pressure tests have proven the strength to be suitable.

5.2 Advantages at Inclined Berthing

Ships usually make initial contact with the dock or another ship on STS operations at an
oblique angle.

In the case of Yokohama Pneumatic Rubber Fenders, energy absorption does not
decrease at inclined compression up to 15 degrees.

5.3 Most Cost Competitive System

The utilization of the compressive elasticity of air, unlike other fenders which need protector panels, provides completely uniform surface pressure on contact. The surface pressure is equal to the internal air pressure

5.4 Stronger against Shearing Force

After contacting a dock, a ship is usually shifted to the correct mooring position. The
shifting exerts shearing and compression forces on the fenders. This combined force is
very severe in the case of solid rubber fenders because they are not reinforced against
such force. In contrast, Yokohama Pneumatic Rubber Fenders are adequately
reinforced using strong tire-cord to cope against such forces as well as internal
pressure.

5.5 Simple and Low Cost Installation

The weight of Yokohama Pneumatic Rubber Fenders is supported by the water on which it floats.
Therefore, the fender can be moored simply by means of a guy rope or chain, requiring minimal extra
cost. It can be removed easily to a suitable jetty or quay when not in use, or transferred to another
mooring point whenever required.

4. No Deterioration or Variation in Performance

Yokohama Pneumatic Rubber Fenders utilize the compressive elasticity of air, therefore
performance deterioration due to fatigue is absent.
In the case of solid rubber fenders or foam-filled fenders, based on data were taken
from comparison tests of Yokohama Fenders, there are variations in performance. Such
performance variations are associated to changes of rubber or foam hardness occurring
as a result of cyclic compression and temperature change.

The good performance of the Yokohama Pneumatic Rubber Fenders remains unchanged
even at temperatures under -50 degrees Centigrade (-58 degrees Fahrenheit).

5.7 Low Maintenance Cost

Maintenance cost is very low. Although the internal pressure will vary with seasonal changes, the air leakage is so minimal that it is sufficient to check the air pressure only once a year. The chain net needs to be replaced only once in 3 or 4 years, depending on ambient conditions.

5.8 Shipping Cost Minimization

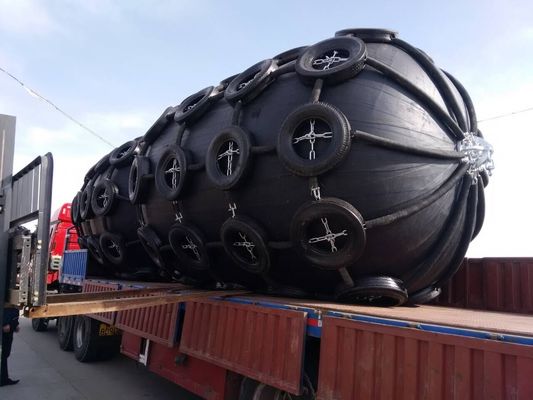

In order to minimize the shipping cost of Yokohama Pneumatic Rubber Fenders, the fenders are usually packed and shipped in containers or on pallets in vacuumed and folded down state.

6.Production Process of Yokohama Rubber Fender

7.Yokohama Pneumatic Inflatable Rubber Fender Installation Methods

At both ends of the fender, first shackles, then swivel joints, followed by a further shackle
should be installed. A guy chain or guy rope is secured to the outer shackle. The swivel
joint prevents twisting of the guy chain or wire.

8.Choose our advantages:

• We have our own production workshop, the production time is decided by ourselves, so we can freely adjust the delivery time.
• As a factory, we can communicate with me directly on production technology issues, which improves the communication efficiency.

We are a manufacturer, no traders make the difference, and the price advantage is obvious.

9.If you have requirements please send the details:

• Product type and quantity
• Product size

• FOB or CIF is required, where is the destination port.

10.What I will offer you:

• The most competitive price
• The most active and professional service
• The most timely reply
