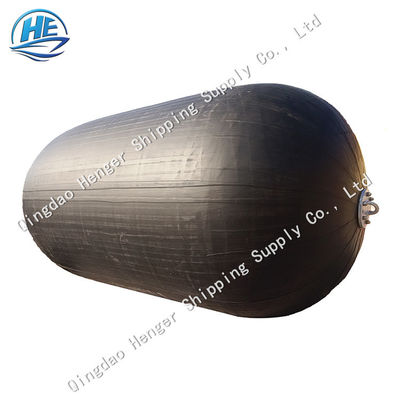

Sling Type Yokohama Fender Boat Fender Strip Marine Roller Fenders

Key Attributes
Brand Name: Henger
Model Number: 2500mm x 5500mm
Place of Origin: China
Certification: BV/CCS/SGS/LR/DNV/ABS
Minimum Order Quantity: 1
Price: $1000-$1000
Supply Ability: 99
Delivery Time: 7-20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Standard Packaging: Pallet packaging

Product Summary

Sling Type Yokohama Fender For light ships, only two contact points are required. However, when berthing on a large ship, in order to ensure safety, 1-3 fenders of the same specification must be arranged separately. Qingdao Henger Ship Supplies Co., Ltd. We are a manufacturer of marine supplies, and ...

Product Custom Attributes

Highlight

Sling Type Yokohama Fender

,

Sling Type Boat Fender

,

Strip Marine Roller Fenders

Part:
Marine Equipments,Flange,Pneumatic Boat Fender,Marine Fender,pneumatic Rubber Fender
Color:
Black,Blue,Black/As Requirements,All Color Can Be Accept,Black/White Or Any Color
Material:
Natural Rubber,EPDM,SBR,SILICONE,EVA
Application:
STD,STS,Ships And Boats,Ship Fender,Marine/quay/dock/boat
Size:
Customized,D3.3*L6.5m Pneumatic Rubber Fender,ALL,2*3.5m,3.3x6.5m
Name:
Pneumatic Rubber Fender,Pneumatic Boat Fender,Marine Floating Pneumatic Inflatable Rubber Fender For Sales,Floating Dock Marina Manofacturer,Marine Airbag
Product Name:
Pneumatic Rubber Fender,Marine/Dock Fender
Warranty Period:
24 Months,3 Years
Type:
DO,50Kpa,Pneumatic,D,UV-protection
Packing:
Normal Packing,Nude Packing/As Requirement,Standard Package
Warranty:
24 Months
Diameter:
0.5m-3.3m,0.5~4.5m
Certification:
CCS BV Certification ISO17357 ISO9001,ABS,DNV,LR,CCS
Usage:
Pneumatic Marine Fenders Cone Fender,Protects Ship During Ship-to-ship Operations Or Mooring At Quay,Protect Boat
Length:
0.5m~12.0m,1.0m-6.5m,1~9m
Chain:
312,hot Galvanizing Or Stainless Steel(304,316)
Quality:
Excellent
Design Using Life:
10 Years
Feature:
Aging Resistance
Product Description

Sling Type Yokohama Fender

For light ships, only two contact points are required. However, when berthing on a large ship, in order to ensure safety, 1-3 fenders of the same specification must be arranged separately.

Qingdao Henger Ship Supplies Co., Ltd.
We are a manufacturer of marine supplies, and our products involve many areas of marine use! The photo below is a product map of my company!
Because we are a manufacturer, our prices are very competitive!
Ship docking, ship launching, ship mooring, ship navigation, we can provide you with products in all fields. We are the largest production base in Qingdao. Our products are self-made and sold, and no third-party traders earn the difference!
If you want to work with us, please contact me!
My email address: tom-li@hengergroup.com
My WhatsApp: +86 15662503695
My WeChat: Lxc667381
Our company website: www.pneumaticrubberfenders.com

The role of marine supplies boat fender:



For light ships, only two contact points are required. However, when berthing on a large ship, in order to ensure safety, 1-3 fenders of the same specification must be arranged separately. These large inflatable fenders can be used as the main protection system, and several small fenders are also required to be used as auxiliary protection.

Inflatable rubber fenders need to be hung with ropes at both ends of the fender when hung on a ship or dock, and the specifications of the fender should be selected according to the size of the fender and the use environment.



Sling Type Yokohama Fender Boat Fender Strip Marine Roller Fenders 0



Advantages of Floating Yokohama Fender and Henger Cooperation:


1. Production advantage

Qingdao henger has 30 years of professional rubber product production experience. Qingdao henger is located near Qingdao Port and has a geographical advantage. And with strong technology and capital, it is a stable supplier of various fenders.


2. Quality advantage

Qingdao henger has raw material inspection and finished product inspection equipment, which can inspect the quality of products before leaving the factory without paying for inspection fees. It is the first fender manufacturer in Qingdao that has passed the ISO 9001: 2000 international quality management system certification, and its products are sold all over the world. Each product is produced in accordance with the industry standard code ISO17357-2014. The excellent quality and considerate service have been praised and repurchased by many buyers.


3. Price advantage

Qingdao Henger's raw material rubber is imported rubber, and other auxiliary materials are purchased from suppliers that have cooperated for many years, which not only improves the quality, but also reduces the cost. Qingdao henger company has a complete production line, avoiding the extra cost of take-out processing, which will also bring customers the best price.

At the same time, the perfect management system and rich production experience have greatly reduced unnecessary man-hours and material waste in production, thereby obtaining high-quality fenders. In the same price range, the quality of Henger's products is definitely the most outstanding. This is the advantage of Hunger products.



Sling Type Yokohama Fender Boat Fender Strip Marine Roller Fenders 1



Detailed specifications and parameters of marine air fender:

Pneumatic 50 fender size and performance requirements

Nominal size diameter

x length
mm

Initial internal

pressure
kPa

Guaranteed energy

absorption (GEA)

Reaction force at

GEA deflection(R)

Hull pressure

(Internal pressure)

at GEA deflection (P)

Minimum value at

deflection 60±5% kJ

Tolerance±10 % kN Reference value
kPa
500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154



Pneumatic 80 fender size and performance requirements

Nominal size diameter

x length
mm

Initial internal

pressure
kPa

Guaranteed energy

absorption (GEA)

Reaction force at

GEA deflection (R)

Hull pressure

(Internal pressure)

at GEA deflection (P)

Minimum value at

deflection 60±5% kJ

Tolerance±10% kN Reference value
kPa
500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000 x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202



Sling Type Yokohama Fender Boat Fender Strip Marine Roller Fenders 2



Precautions for inflatable rubber fenders:



1. Regularly check whether there is damage to the outside of the fender sphere and whether the air pressure is normal. It is recommended to replace the spool every six months. Hener will equip the spare spool at the time of shipment.

2. Check whether there are sharp objects at the installation site, because the surfaces or objects in contact with the ball must not have sharp hard objects to avoid piercing the ball.

3. During the internal pressure adjustment of the fender, the nuts of the fittings and fixing devices must not be loosened.

4. When using the fender, check whether the sheath is firm, and the wire ropes and shackles hanging metal parts at both ends must not be knotted.



Sling Type Yokohama Fender Boat Fender Strip Marine Roller Fenders 3



FAQ:



Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao airport, which is convenient in transportation logistics.


Q: Is OEM service available ?
A: yes
