Marine Inflatable Boat Hydropneumatic Fender Rubber Inflatable Floating Boat Fender

Marine Inflatable Boat Hydropneumatic Fender Rubber Inflatable Floating Boat Fender
Marine Inflatable Boat Hydropneumatic Fender Rubber Inflatable Floating Boat Fender Marine Inflatable Boat Hydropneumatic Fender Rubber Inflatable Floating Boat Fender Marine Inflatable Boat Hydropneumatic Fender Rubber Inflatable Floating Boat Fender Marine Inflatable Boat Hydropneumatic Fender Rubber Inflatable Floating Boat Fender Marine Inflatable Boat Hydropneumatic Fender Rubber Inflatable Floating Boat Fender Marine Inflatable Boat Hydropneumatic Fender Rubber Inflatable Floating Boat Fender

Large Image :  Marine Inflatable Boat Hydropneumatic Fender Rubber Inflatable Floating Boat Fender

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: BV/CCS/SGS/LR/DNV/ABS
Model Number: 1700mm x 3000mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1000-$1000
Packaging Details: Pallet packaging
Delivery Time: 7-20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99
Detailed Product Description
Part: Marine Equipments,Flange,Pneumatic Boat Fender,Marine Fender,pneumatic Rubber Fender Color: Black,Blue,Black/As Requirements,All Color Can Be Accept,Black/White Or Any Color
Material: Natural Rubber,EPDM,SBR,SILICONE,EVA Application: STD,STS,Ships And Boats,Ship Fender,Marine/quay/dock/boat
Size: Customized,D3.3*L6.5m Pneumatic Rubber Fender,ALL,2*3.5m,3.3x6.5m Name: Pneumatic Rubber Fender,Pneumatic Boat Fender,Marine Floating Pneumatic Inflatable Rubber Fender For Sales,Floating Dock Marina Manofacturer,Marine Airbag
Product Name: Pneumatic Rubber Fender,Marine/Dock Fender Warranty Period: 24 Months,3 Years
Type: DO,50Kpa,Pneumatic,D,UV-protection Packing: Normal Packing,Nude Packing/As Requirement,Standard Package
Warranty: 24 Months Diameter: 0.5m-3.3m,0.5~4.5m
Certification: CCS BV Certification ISO17357 ISO9001,ABS,DNV,LR,CCS Usage: Pneumatic Marine Fenders Cone Fender,Protects Ship During Ship-to-ship Operations Or Mooring At Quay,Protect Boat
Length: 0.5m~12.0m,1.0m-6.5m,1~9m Chain: 312,hot Galvanizing Or Stainless Steel(304,316)
Quality: Excellent Design Using Life: 10 Years
Feature: Aging Resistance
High Light:

Inflatable Boat Hydropneumatic Fender

,

Marine Boat Hydropneumatic Fender

,

Hydropneumatic Floating Boat Fender

Hydropneumatic Fender

Hydropneumatic Fender is a special version of the inflatable fender developed for submarines. Because they can be filled with water or air and equipped with counterweights, they can stand upright against the diving hull.

Description:

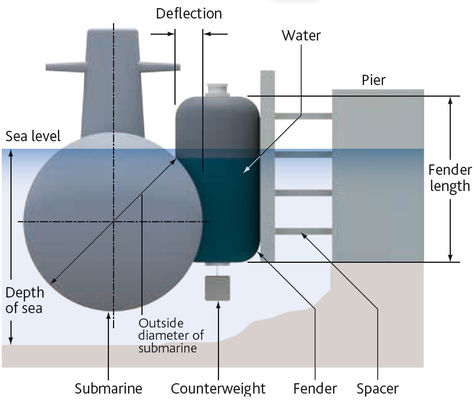

Hydropneumatic Fender is a special version of the inflatable fender developed for submarines. Because they can be filled with water or air and equipped with counterweights, they can stand upright against the diving hull. The water-filled fender is designed to be installed vertically, which is very suitable for use with submarines or ships whose impact point may be below the waterline, such as catamarans, semi-submersible platforms and drilling rigs, to protect submarines and other ships that come into contact below the waterline .

In use, you can "adjust" Hener's water-filled fender performance by changing the initial pressure, the ratio of water to air and the ballast weight to adapt to the hull curvature and sensitivity of the latest submarine.

Water-filled fenders can be installed on most wharf structures and come in various sizes to suit various applications and various ships.



Hydro-pneumatic fenders are specially adapted to submarines



Hydropneumatic Fender Parameters:

Fender size

diameter*length
/mm

Initial internal pressure 50kPa Initial internal pressure 80kPa

Guaranteed energy

absorption (GEA)

Reference value

kPa

Guaranteed energy

absorption (GEA)

Reference value

kPa

500 x 1000 6 67 8 85
600 x 1000 8 74 11 98
700 x 1500 17 137 24 180
1000 x 1500 32 182 45 239
1000 x 2000 45 257 63 338
1200 x2000 63 297 88 390
1350 x 2500 102 427 142 561
1500 x 3000 153 579 214 761
1700 x 3000 191 639 267 840
2000 x 3500 308 875 430 1150
2500 x 4000 663 1381 925 1815
2500 x5500 943 2019 1317 2653
3300 x 4500 1256 1884 1752 2742
3300 x 6500 1814 3015 2532 3961
3300 x 10600 3067 5257 4281 6907
4500 x 12000 6473 7984 9037 10490



ISO 17357 Certificated Yokohama Type Pneumatic Rubber Fenders_1



Hydropneumatic Fender Features:



The performance can be adjusted by changing the air-water ratio

The required draft can be adjusted

Low hull pressure

Self-regulation when the tide changes

Low installation and maintenance costs



submarine hydro-pneumatic fender_1



ISO 17357 Certificated Yokohama Type Pneumatic Rubber Fenders FAQ:



1."What's the lifespan of your submarine fenders?"
Answer: Designed lifespan of our submarine fenders is 6 to 10 years
2."What's the warranty period of your submarine fenders ?"
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new submarine fenders for you if it proved to be our quality problem.

3."What kind of certificate can you provide for submarine fenders ?"
Answer: CCS, BV, SGS etc. certificate is available.



Featured fender for submarine
