Hip Upgrading And Launching Black Inflatable Marine Rubber Airbag

Hip Upgrading And Launching Black Inflatable Marine Rubber Airbag
Hip Upgrading And Launching Black Inflatable Marine Rubber Airbag
video play

Large Image :  Hip Upgrading And Launching Black Inflatable Marine Rubber Airbag

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: CCS, ABS, LRS, BV, GL, DNV, NK
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 50-3000 PER PIECE
Packaging Details: NUDE/PALLET
Delivery Time: 7-15 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10PCS PER WEEK
Detailed Product Description
Product Nam: Marine Airbag Brand: Henger
Material: Rubber Certification: CCS/BV/ABS/ISO17357/ISO9001
Color: Black Warranty: 18 Months
High Light:

Hip Upgrading Marine Rubber Airbag

,

Launching Marine Rubber Airbag

,

Hip Upgrading ship launching airbags

Ship Upgrading and Launching Inflatable Marine Rubber Airbag

1. Product Introduction

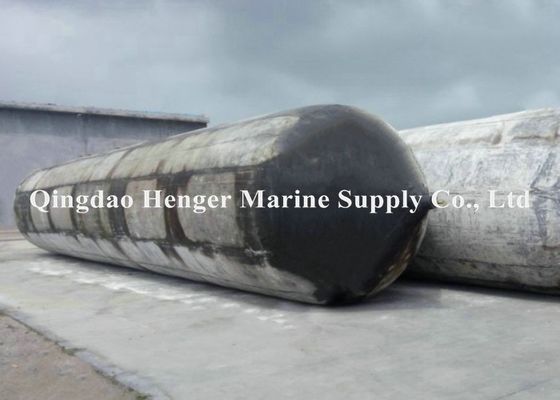

Marine Rubber Airbag also known as rubber airbag, ship air bags, ship launching airbag, ship salvage airbag, boat salvage airbags, inflatable airbag, ship lifting bag, air balloon, made by rubber & multi layer of rubber-dipped tyre fabric.

Marine Rubber Airbag are widely used in launching and landing ship/ boat/vessel, lifting and moving heavy goods, salvaging stranded boats.

Marine Rubber Airbag are very popular with shipyard, ship owner, and marine supplies company now.

Hip Upgrading And Launching Black Inflatable Marine Rubber Airbag 0

2. Technical Requirement

According to CB/T 3795--1996, marine rubber fender should meet the following requirements.

  • Dimensional Deviation:

Diameter & Effective Length Deviation: ±2%

Total Length Deviation: ±4%

  • Amount of Elastic Deformation: diameter deformation amount ≤ 5% under 1.2 times working pressure.
  • Safety Factor: >4.5
  • Air Tightness: depressurization < 5% after 1hour inflation
  • Surface Quality: fairing line shape, no crack, no bubble, no double skin, no impurities, no distinct dirt and other apparent defect.
  • Anti-explosion design of end part.

Hip Upgrading And Launching Black Inflatable Marine Rubber Airbag 1

3. Advantages

1. Long lifespan

2. Movable and reusable

3. Saving investment costs

4. Saving labor and time



Hip Upgrading And Launching Black Inflatable Marine Rubber Airbag 2

4. Marine Rubber Airbag Application

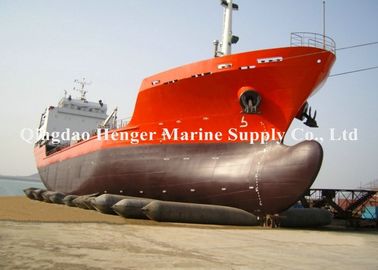

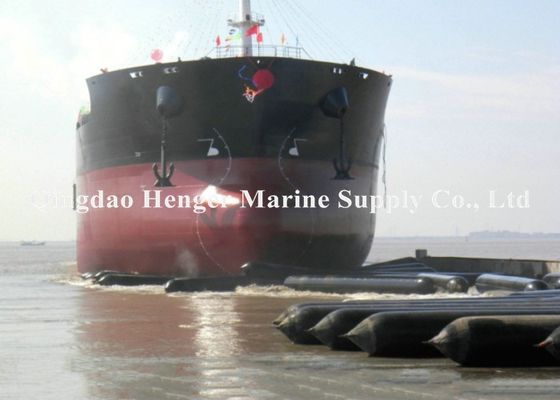

  • Ship Launching & Upgrading

With more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.

  • Weight Lifting & Moving

Marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects

  • Buoyancy Aid & Salvage

Because marine rubber airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.

Hip Upgrading And Launching Black Inflatable Marine Rubber Airbag 3

5. Some normal sizes of our Marine Rubber Airbag, customized sizes are also available



Diameter(m) Effective Length(m) Layer Pressure(MPa)
1.0 10 5~6 0.07~0.10
1.0 12 5~6 0.07~0.10
1.0 15 5~6 0.07~0.10
1.2 10 5~6 0.08~0.12
1.2 12 5~6 0.08~0.12
1.2 15 5~6 0.08~0.12
1.5 12 5~8 0.08~0.16
1.5 15 5~8 0.08~0.16
1.5 18 5~8 0.08~0.16
1.5 20 4~8 0.08~0.16
1.5 24 5~8 0.08~0.16
1.8 12 5~8 0.08~0.15
1.8 15 5~8 0.08~0.15
1.8 18 5~8 0.08~0.15
1.8 20 5~8 0.08~0.15
1.8 24 5~8 0.08~0.15
2.0 18 6~10 0.08~0.18
2.0 20 6~10 0.08~0.18
2.0 24 6~10 0.08~0.18
2.5 18 7~10 0.07~0.13
2.5 20 7~10 0.07~0.13
2.5 24 7~10 0.07~0.13









6. Notice during using



1. While the shipping air launching airbags are in use, strictly control the pressure, prohibit use of exceeding the work pressure.



  • The surface in contact with the shipping lifting airbag must not have a sharp protruding hard object to prevent the airbag skin from being pierced.
  • Try to avoid distortion in the length of the airbag.
  • Should avoid the inflatable load after we have in charged the air into the airbag.
  • For example, when the ship is erected, when the lifting airbag has lifted most of the hull, remove most of the pier and fill the rolling airbag. If there are 1-2 piers still under compression, the internal pressure between the airbags should be adjusted so that the ship can be removed from the side of the ship. And the pier can not be manually used. Otherwise, the ship may be forced to impact the airbag that has been filled.
  • Another example is the collision with other objects for various reasons during the ship transfer process. In severe cases, the impact airbag may be damaged.
  • Before long time no use or re-use after repair, we should carry out the air filling test again. The air internal pressure should be the same as the factory test value of our factory. The test worker should keep away three meters from the airbag during the test. If the airbag repaired by a large area damage, we should decrease the use pressure. Therefore, for the airbag often used, still need the above test once a year.
  • Do not drag the ship launch airbag on the hard ground.
  • Hip Upgrading And Launching Black Inflatable Marine Rubber Airbag 4

7. Company Information

Qingdao Henger Shipping Supplies Co.,Ltd. specialized in manufacturing marine airbags and pneumatic rubber fenders. We have established long-term cooperation relationship with many shipyards and ship owners, trading companies in China. We also export to Malaysia, Indonesia, Philippines, Singapore, India,Vietnam etc. and many other countries in the world.



Hip Upgrading And Launching Black Inflatable Marine Rubber Airbag 5

8. FAQ

1."I have ships but don't know how to choose the size of Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China?

Answer: Don't worry .We have more than 20 years' experience. Pls tell me information of your ship, we can suggest suitable size for you.

2."I want to try your Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China, but I never use it and don't know how to use ,can you help me?"

Answer: Don't worry. We will send instruction book together with Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China.

3."What's your MOQ?"

Answer: Our MOQ is 1PC.

4."How about the lifespan of your Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China?"

Answer: Designed lifespan of our Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China is 6 to 10 years

5."What's your warranty period ?"

Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.

6."What kind of certificate can you provide ?"

Answer: CCS, SGS etc. certificate is available.
