50kpa Submarine Sling Type Fender Pneumatic Yokohama Fender For Ship Berthing Black Color
QINGDAO HENGER SHIPPING SUPPLIES CO.,LTD
Rubber Marine Fenders is widely used in ship-to-ship (STS) transshipment operations, terminals and various ships worldwide.
Since its establishment, Henger has provided more than 20,000 fenders for ship-to-ship and ship-to-dock operations serving our important customers worldwide. These fenders are used in the safe operation of ship mooring and mooring. Plays a vital role.
Technical advantages
Qingdao Henger inflatable fender has introduced the latest Yokohama Floating Fender production technology from Yokohama, Japan, and hired experienced engineers at home and abroad for training and guidance throughout the year. "Floating inflatable rubber fender" is produced according to international quality standards.
Production advantages
Qingdao Henger has accumulated 20 years of professional rubber product production experience. It is an excellent company in the region, with strong technology and capital, and is a supplier of stable quality marine fenders and government marine supplies.

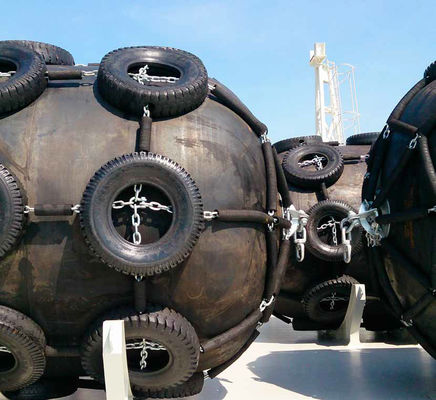

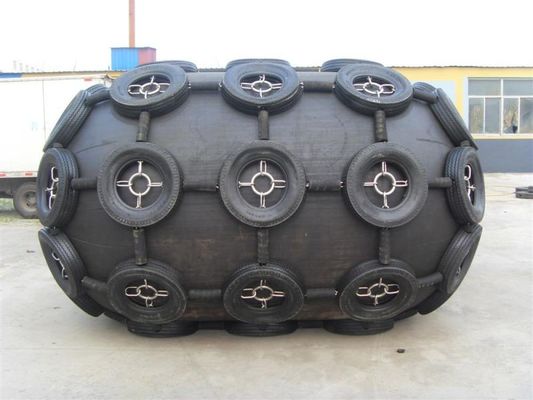

Yokohama Floating Fender Features:
1. Ensure product energy absorption
2. Chain tire net floating pneumatic rubber fender and sling type fender
3. Thick structure of the skin on the surface of the product
4. Good angle performance of the product
5. the deflatable pneumatic fender can reduce the surface pressure on the side wall of the ship. (The ability to withstand the surface pressure of the fender is as high as 14 tons/m²).
6. The fender will not reduce the compression performance when it is impacted and tilted.
7. Pneumatic Floating Rubber Fender is suitable for cold weather, because compressed air can be used as a buffer medium.
8. The floating pneumatic rubber fender is suitable for areas with large or small tides.
9. Especially in the mooring and lighters of large ships at sea piers.
10. The fender can keep a large gap between the hull and the structure
The following are the product specifications and detailed parameters:
|
Pneumatic 50 fender size and performance requirements |
||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) |
Reaction force at GEA deflection(R) |
Hull pressure (Internal pressure) at GEA deflection (P) |
|
Minimum value at deflection 60±5% kJ |
Tolerance±10 % kN |
Reference value kPa |
||
|
500 x 1000 |
50 |
6 |
64 |
132 |
|
600 x 1000 |
50 |
8 |
74 |
126 |
|
700 x 1500 |
50 |
17 |
137 |
135 |
|
1000 x 1500 |
50 |
32 |
182 |
122 |
|
1000 x 2000 |
50 |
45 |
257 |
132 |
|
1200 x2000 |
50 |
63 |
297 |
126 |
|
1350 x 2500 |
50 |
102 |
427 |
130 |
|
1500 x 3000 |
50 |
153 |
579 |
132 |
|
1700 x 3000 |
50 |
191 |
639 |
128 |
|
2000 x 3500 |
50 |
308 |
875 |
128 |
|
2500 x 4000 |
50 |
663 |
1381 |
137 |
|
2500 x5500 |
50 |
943 |
2019 |
148 |
|
3300 x 4500 |
50 |
1175 |
1884 |
130 |
|
3300 x 6500 |
50 |
1814 |
3015 |
146 |
|
3300 x 10600 |
50 |
3067 |
5257 |
158 |
|
4500 x 9000 |
50 |
4752 |
5747 |
146 |
|
4500 x 12000 |
50 |
6473 |
7984 |
154 |
|
Pneumatic 80 fender size and performance requirements |
||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) |
Reaction force at GEA deflection (R) |
Hull pressure (Internal pressure) at GEA deflection (P) |
|
Minimum value at deflection 60±5% kJ |
Tolerance±10% kN |
Reference value kPa |
||
|
500 x 1000 |
80 |
8 |
85 |
174 |
|
600 x 1000 |
80 |
11 |
98 |
166 |
|
700 x 1500 |
80 |
24 |
180 |
177 |
|
1000 x 1500 |
80 |
45 |
239 |
160 |
|
1000 x2000 |
80 |
63 |
338 |
174 |
|
1200 x 2000 |
80 |
88 |
390 |
166 |
|
1350 x 2500 |
80 |
142 |
561 |
170 |
|
1500 x 3000 |
80 |
214 |
761 |
174 |
|
1700 x 3000 |
80 |
267 |
840 |
168 |
|
2000 x 3500 |
80 |
430 |
1150 |
168 |
|
2500 x 4000 |
80 |
925 |
1815 |
180 |
|
2500 x 5500 |
80 |
1317 |
2653 |
195 |
|
3300 x 4500 |
80 |
1640 |
2476 |
171 |
|
3300 x 6500 |
80 |
2532 |
3961 |
191 |
|
3300 x 10600 |
80 |
4281 |
6907 |
208 |
|
4500 x 9000 |
80 |
6633 |
7551 |
192 |
|
4500 x 12000 |
80 |
9037 |
10490 |
202 |
Advantages of Qingdao Hunger marine inflatable fenders:
1. The rubber marine fenders warranty period can be up to 24 months
2. The rubber used for the fender has passed SGS certification and is the best rubber on the market. It is wear-resistant and not easily broken.
3. Yokohama Dock Rubber Fender can pass the certification of major classification societies and fully comply with the ISO17357-2014 standard.
4. We have a professional service team, which can save you communication time
