Product Details:
Payment & Shipping Terms:
|
Material: | EVA, Polyurethane | Size: | D:0.5~4.5m L:1~9m |
---|---|---|---|
Color: | Customized | Application: | Berthing, STS, STD Protection |
Packing: | Nude/Pallet | MOQ: | 1 Piece |
Warranty: | 24 Months | Service Life: | 15-20 Years |
High Light: | EVA Foam Filled Marine Fenders,Boat Berthing Foam Filled Marine Fenders,Lightweight foam filled fender |

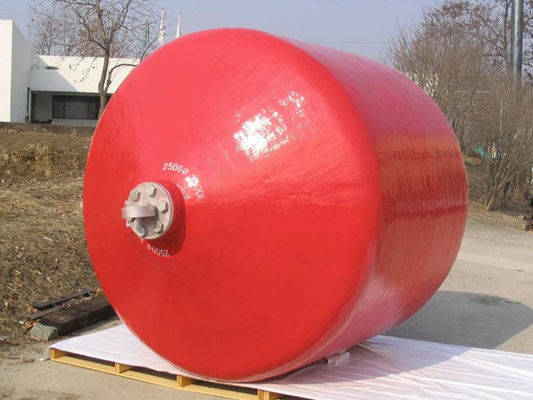

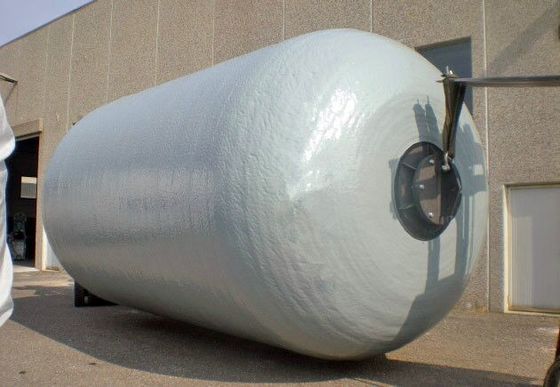

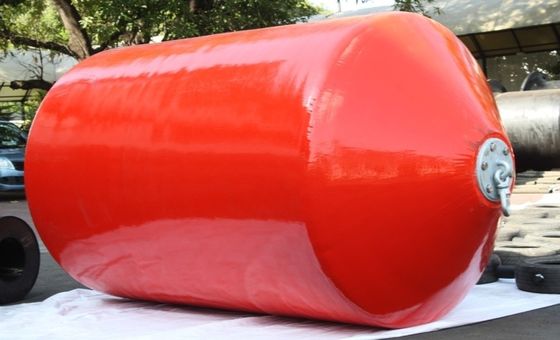

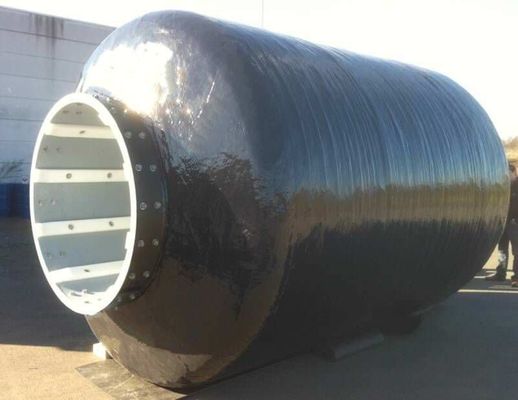

Lightweight Colorful Boat Berthing Marine Solid EVA Faom Filled Fender
1.Type
Polyurethane elastomer is a new kind synthetic polymer whose performance has both advantages of plastic and rubber. The high strength of plastic and good elasticity of rubber
Polyurethane foam filled fender is made of high elastic modulus of new polymerization materials, which has high strength, high elasticity, high adhesion force and the maximum anti-seepage, anti-aging features etc. Polyurethane foam filled fender is mainly choose the closed-cell foam materials as buffered medium to reduce the damage of collision. Currently, Polyurethane foam filled fender produced by HENGER is used very widely in the world, include the port, coastal and ship by ship operation.Polyurethane foam filled fender as a substitute of Pneumatic Rubber fender, which adopting the new coating formular so that the product become more gorgeous and solid. Compared with Pneumatic Rubber Fender, it can using longer time and easy to install in the practices. Polyurethane foam filled fender choose the polyurea material for outer layer and internal using polyurethane foam materials or plastic foam as the cushion medium. It is using compression deformation to absorb the impact energy of the vessels, so that it can help the ship or wharf to reduce the collision damage.
3.Features
1.Colorful
2.unsinkable design
3.Can as float rod on the sea
4.Flexible,cost-saving
5.Remains fully functional even if skin is punctured
6.Easy to install,move and use. Low maintenance.
EVA foam filled fenders are high performance and heavy-duty floating fender system. EVA foam fender is made of polyurethane elastomer skin( or rubber skin), nylon reinforcement layer and closed-cell resilient foam. It has high energy absorption and low reaction force.
● High wear resistance which is 3-5times of nature rubber.
● Excellent oil resistance which is 4times of NBR.
● High mechanical strength.Its tensile intention and tear strength and burden capability are several times of common rubbers.
● Excellent tolerance of acid, alkali, low temperance and organic solvent.
● High metal-bonding performance.
● Wide hardness range from Shore A100 adjustable.
● Installed on the wharf and dock for berthing
● Installed on the shipboard for berthing
● Float chamber
● For moving the cargo
Model |
D (mm) |
L (mm) |
Compressible 60% |
Weight (kg) |
|
|
|
|
Counter-force (KN) |
Energy Absorption (KJ) |
|
Ø 500×1000L |
500 |
1000 |
71 |
8 |
34 |
Ø 600×1000L |
600 |
1000 |
86 |
12 |
45 |
Ø 700×1500L |
700 |
1500 |
161 |
27 |
101 |
Ø 1000×1500L |
1000 |
1500 |
205 |
49 |
206 |
Ø 1000×2000L |
1000 |
2000 |
274 |
64 |
275 |
Ø 1200×2000L |
1200 |
2000 |
337 |
93 |
405 |
Ø 1200×2400L |
1200 |
2400 |
390 |
110 |
475 |
Ø 1350×2500L |
1350 |
2500 |
463 |
145 |
626 |
Ø 1500×3000L |
1500 |
3000 |
624 |
216 |
927 |
Ø 1700×3000L |
1700 |
3000 |
696 |
273 |
1191 |
Ø 2000×3500L |
2000 |
3500 |
990 |
456 |
1923 |
Ø 2000×4000L |
2000 |
4000 |
1110 |
505 |
2298 |
Ø 2200×4500L |
2200 |
4500 |
1396 |
679 |
2992 |
Ø 2500×4000L |
2500 |
4000 |
1386 |
781 |
3434 |
Ø 2500×5000L |
2500 |
5000 |
1750 |
985 |
4272 |
Ø 3000×5000L |
3000 |
5000 |
2050 |
1410 |
6411 |
Ø 3000×6000L |
3000 |
6000 |
2460 |
1695 |
7293 |
Ø 3300×6500L |
3300 |
6500 |
2950 |
2245 |
8335 |
Ø 4500×9000L |
4500 |
9000 |
19650 |
7860 |
21460 |
