Product Nam: | Marine Airbag | Brand: | Henger |
---|---|---|---|
Material: | Rubber | Size: | D:0.5~4.5m L:1~9m |
Certification: | CCS/BV/ABS/ISO17357/ISO9001 | Color: | Black |
Warranty: | 18 Months | ||
High Light: | Inflatable Marine Lifting Airbags,Marine Lifting Airbags For Shipping,Anti Explosion Marine Lifting Airbags |
Whole Intertwine Technology
"HENGER" Airbags overall frame structure uses cross whole intertwine technology, the overall structure is more reasonable, texture clear, no juncture, high loads, more safety than lap technology (roller), more than 20% bearing capacity.

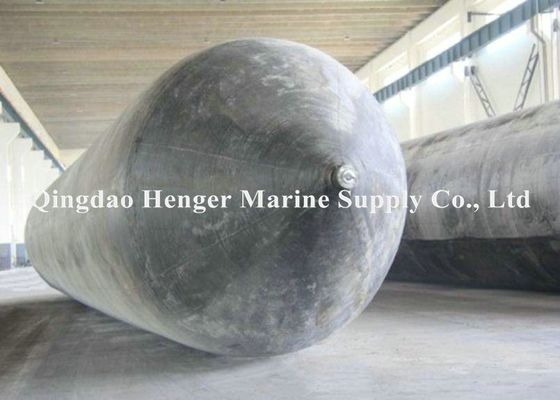

“HENGER” airbag structure are consist of the outer rubber + synthetic cord reinforced rubber layers.Its shape characteristics: central body cylindrical + tapered on both ends. Cord layers: 4,5,6,7,8,9,10,11,12 layers.
According to CB/T 3795--1996, marine rubber fender should meet the following requirements.
Diameter & Effective Length Deviation: ±2%
Total Length Deviation: ±4%
Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
1.0 | 10 | 5~6 | 0.07~0.10 |
1.0 | 12 | 5~6 | 0.07~0.10 |
1.0 | 15 | 5~6 | 0.07~0.10 |
1.2 | 10 | 5~6 | 0.08~0.12 |
1.2 | 12 | 5~6 | 0.08~0.12 |
1.2 | 15 | 5~6 | 0.08~0.12 |
1.5 | 12 | 5~8 | 0.08~0.16 |
1.5 | 15 | 5~8 | 0.08~0.16 |
1.5 | 18 | 5~8 | 0.08~0.16 |
1.5 | 20 | 4~8 | 0.08~0.16 |
1.5 | 24 | 5~8 | 0.08~0.16 |
1.8 | 12 | 5~8 | 0.08~0.15 |
1.8 | 15 | 5~8 | 0.08~0.15 |
1.8 | 18 | 5~8 | 0.08~0.15 |
1.8 | 20 | 5~8 | 0.08~0.15 |
1.8 | 24 | 5~8 | 0.08~0.15 |
2.0 | 18 | 6~10 | 0.08~0.18 |
2.0 | 20 | 6~10 | 0.08~0.18 |
2.0 | 24 | 6~10 | 0.08~0.18 |
2.5 | 18 | 7~10 | 0.07~0.13 |
2.5 | 20 | 7~10 | 0.07~0.13 |
2.5 | 24 | 7~10 | 0.07~0.13 |
Diameter(m) | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | |
Medium Pressure (4-5) |
Test Pressure | 0.14-0.16 | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 |
Working Pressure | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 | 0.06-0.08 | |
High Pressure (6-8) |
Test Pressure | 0.22-0.26 | 0.20-0.24 | 0.15-0.20 | 0.13-0.16 | 0.12-0.15 |
Working Pressure | 0.20-0.24 | 0.17-0.22 | 0.13-0.18 | 0.11-0.14 | 0.10-0.13 |
With more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.

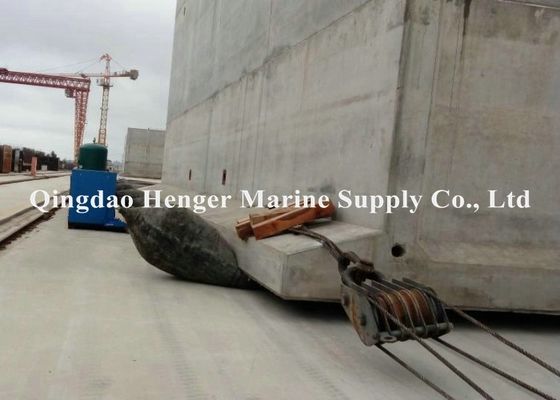

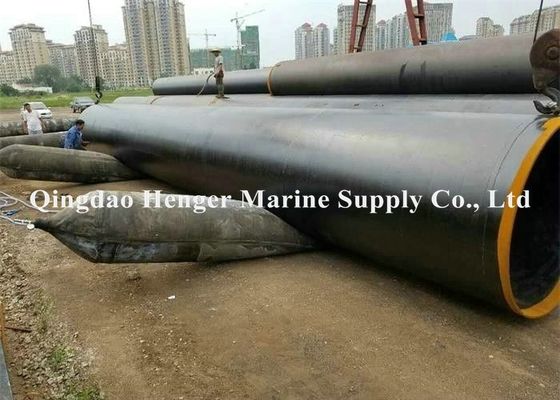

Marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects
Because marine rubber airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.
6.Features of Marine Rubber Airbag
1. Long lifespan
2. Movable and reusable
3. Saving investment costs
4. Saving labor and time
1."I have ships but don't know how to choose the size of Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China?
Answer: Don't worry .We have more than 20 years' experience. Pls tell me information of your ship, we can suggest suitable size for you.
2."I want to try your Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China, but I never use it and don't know how to use ,can you help me?"
Answer: Don't worry. We will send instruction book together with Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China.
3."What's your MOQ?"
Answer: Our MOQ is 1PC.
4."How about the lifespan of your Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China?"
Answer: Designed lifespan of our Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China is 6 to 10 years
5."What's your warranty period ?"
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.
6."What kind of certificate can you provide ?"
Answer: CCS, SGS etc. certificate is available.
