|Roduct Name:||Pneumatic Rubber Fender/Marine Fender/Yokohama Fender||Material:||Rubber|
|Application:||Berthing/mooring/STS||Production Time:||5-8 Days|
|Warranty:||24 Months||Working Pressure:||50kPa/80kPa|
Yokohama Type Pneumatic Rubber Fender,
2.4x4m Pneumatic Rubber Fender,
2.4x4m yokohama floating fenders

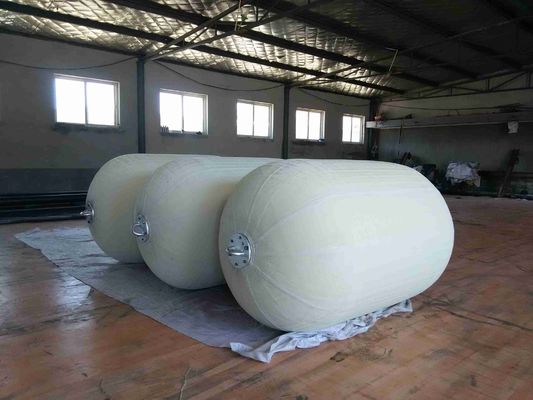

Inflatable Marine Boat Yokohama Type 2.4x4m Ship Berth Pneumatic Fender
The pneumatic fender or inflatable rubber fender or Yokohama fender compressed air is used as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and flexibility when docking, so as to prevent The impact of collisions and collisions.
1 Outer rubber
The outer rubber layers that covers the outside of fender protects the cord layers and the inner rubber from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage. Standard color is black, but other colors are available on request.
2 Inner rubber
The liner of a rubber membrane seals the pressurized air inside the fenders.
3 Synthetic tire cord layers for reinforcement
The reinforcement layers, which are made of synthetic tire cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly providing strong efficient reinforcement.
4 Beading ring
A steel ring is placed at one end (or both ends) of the fender and holds the end of cord layers.
A steel flange is mounted on the fender, to which an air valve or safety valve can be adapted.
6 Safety valve
Fenders of diameter 2500mm and larger shall be equipped with safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally. Fender which are smaller than 2500mm in diameter, can be equipped with a safety valve if required.
7 Metal accessories
All the relevant metal accessories of pneumatic fenders, include shackles, towing rings, swivels, chain net, are made of stainless steel, which are resistant for sea water corrosion.

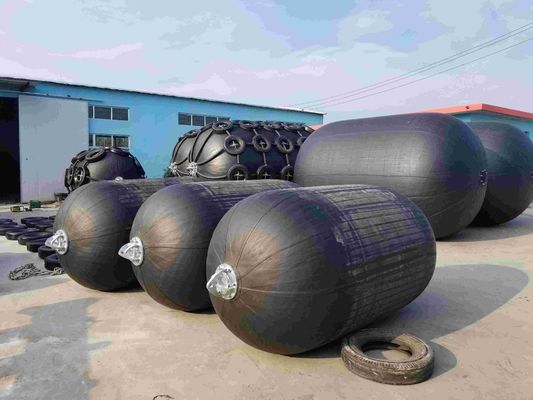

Type I: pneumatic rubber fender with Chain & tyre net protective jacket
Type II: Sling type with rubber plate, rubber tube & ropes protective jacket

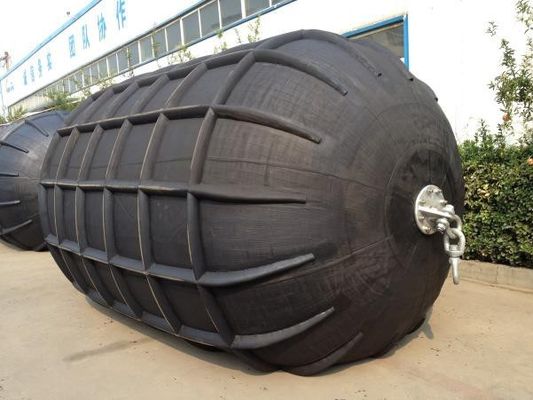

Type III: Ribbed type rubber fender
Type IV: Rope net type protective jacket rubber fender

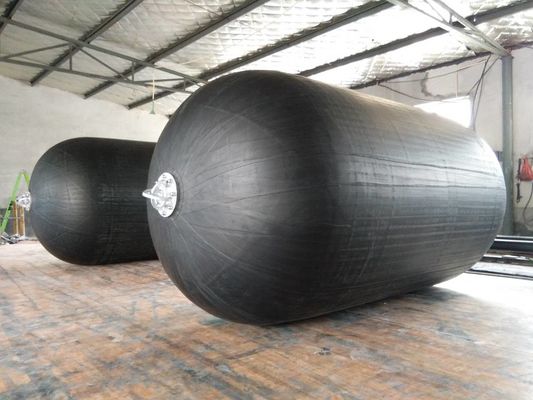

Type V: Standard type without any protective jackets
Type VI: hydro pneumatic rubber fender
Model Selection Of Pneumatic Rubber Fender For Small & Middle Size Ship
D X L (m)
|50||0.5 x 1.0||Fishing Ship|
|100||0.7 x 1.5 ~ 1.0 x 1.5||Fishing Ship|
|200||1.0 x 1.5 ~ 1.2 x 2.0||Fishing Ship, Towing Ship|
|300-500||1.2 x 2.0 ~ 1.5 x 2.5||Fishing Ship, Towing Ship|
|1000||1.5 x 2.5 ~ 1.5 x 3.0||Towing Ship, Cargo Ship|
|3000||2.0 x 3.0 ~ 2.0 x 3.5||Cargo Ship, Ocean Trawler|
|10000||2.0 x 3.5 ~ 2.5 x 4.0||Cargo Ship|
Model Selection Of Pneumatic Rubber Fender For Large-tonnage Ship
|Assumed Boarding Speed (M/S)||Effective Kinetic Energy (KNM)||
Fender Size D x L
|200000||0.15||1890||3.3 x 6.5|
|150000||0.15||1417||3.3 x 6.5|
|100000||0.15||945||3.0 x 5.0|
|85000||0.17||1031||3.0 x 6.0|
|50000||0.18||680||2.5 x 5.5|
|40000||0.20||672||2.5 x 5.5|
|30000||0.22||609||2.5 x 4.0|
|20000||0.25||525||2.5 x 4.0|
|15000||0.26||425||2.5 x 4.0|
|10000||0.28||329||2.0 x 4.0|
|5000||0.33||228||2.0 x 3.5|
Meet the requirements of ISO17357:2002
2. More secure and reliable
3. Smaller parking force
4. Adapt to the tide
5 Low maintenance costs
6. Low reactivity and Hull pressure
7. The most cost-effective system
8. Advantages of reducing shear force
9. Simple installation and low cost
10. There are many optional accessories.
Pneumatic Rubber Fender Application
Pneumatic Rubber Fender is constructed of synthetic-cord-reinforced rubber sheets with compressed air inside to keep floating over the water surface and work as a shock absorber between two ships or between ships and berthing structure when they come alongside each other on the water.
Pneumatic Rubber Fender is a leading anti-collision device for marine application in the world today. Pneumatic Fender has become an idea ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbors and wharves.
Pneumatic Rubber Fender Transportation
Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
Install the inflatable rod
Remove the valve core with the wrench
Link up quick connector inflation, inflation pressure 0.05-0.08mpa, recommended pressure 0.05mpa.
pressure by gauge
Screw the valve core with the wrench
1. When the Pneumatic rubber fender is not used for a long time, it should be washed and dried, filled with appropriate compressed air, placed in a dry, cool, ventilated place.Inventory temperature is maintained at -15 ℃ -40 ℃ .
2 .The place where the fender is stored should be kept away from the heat source.
3 .Fenders shall not be in contact with acids, alkalis, greases and organic solvents.
4 .When the fenders are not in use, they must not be stacked and should not be stacked on the ba. In order to better extend the service life of pneumatic rubber fenders, it is recommended that you store them in strict accordance with the above recommendations.
|Quality is the cornerstone, service is the soul. We continue to provide our customers with stable & reliable quality pneumatic rubber fenders with a comprehensive system of technical support, meticulous and thoughtful after-sales service to win customers trust and satisfaction. Qingdao Henger Shipping Supplies Co., Ltd provides following services to all customers.|
|1. 24 hours instant online technical consultation and support.|
|2. 24 months warranty period(without any artificial damage) and free repairing service within warranty period.|
3. lifetime reparing service.
