| Certification: | CCS BV Certification ISO17357 ISO9001,ABS,DNV,LR,CCS | Part: | Marine Equipments,Flange,Pneumatic Boat Fender,Marine Fender,pneumatic Rubber Fender |
|---|---|---|---|
| Color: | Black,Blue,Black/As Requirements,All Color Can Be Accept,Black/White Or Any Color | Material: | Natural Rubber,EPDM,SBR,SILICONE,EVA |
| Application: | STD,STS,Ships And Boats,Ship Fender,Marine/quay/dock/boat | Size: | Customized,D3.3*L6.5m Pneumatic Rubber Fender,ALL,2*3.5m,3.3x6.5m |
| Name: | Pneumatic Rubber Fender,Pneumatic Boat Fender,Marine Floating Pneumatic Inflatable Rubber Fender For Sales,Floating Dock Marina Manofacturer,Marine Airbag | Product Name: | Pneumatic Rubber Fender,Marine/Dock Fender |
| Warranty Period: | 24 Months,3 Years | Type: | DO,50Kpa,Pneumatic,D,UV-protection |
| Packing: | Normal Packing,Nude Packing/As Requirement,Standard Package | Warranty: | 24 Months |
| Diameter: | 0.5m-3.3m,0.5~4.5m | Usage: | Pneumatic Marine Fenders Cone Fender,Protects Ship During Ship-to-ship Operations Or Mooring At Quay,Protect Boat |
| Length: | 0.5m~12.0m,1.0m-6.5m,1~9m | Chain: | 312,hot Galvanizing Or Stainless Steel(304,316) |
| Quality: | Excellent | Design Using Life: | 10 Years |
| Feature: | Aging Resistance | ||
| High Light: | Boat Pneumatic Marine Fender,50 kpa Pneumatic Marine Fender,Roller Marine Jetty Fenders |
||
The outer rubber layer covering the outside of the fender protects the cord layer and the inner rubber from wear and other external forces.

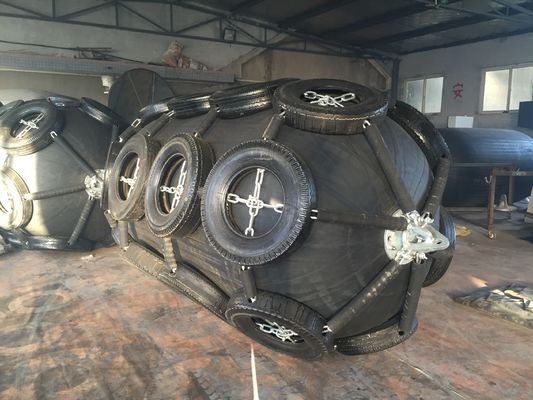

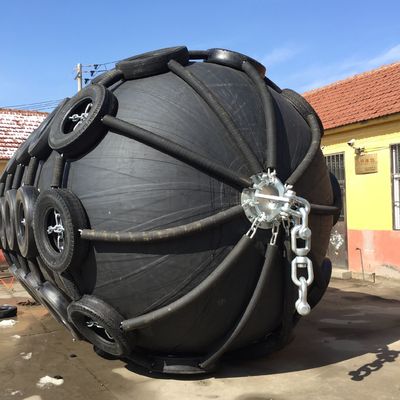

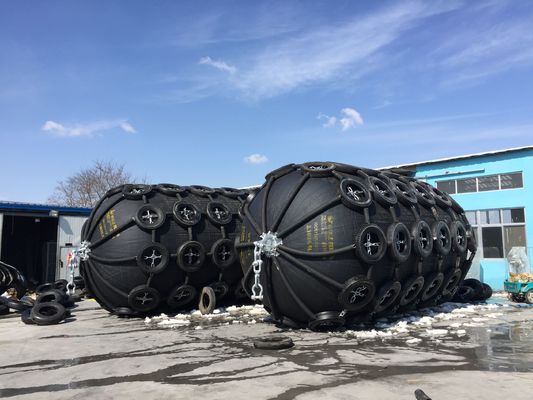

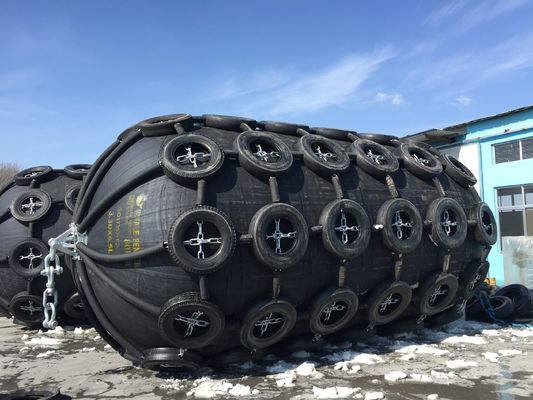

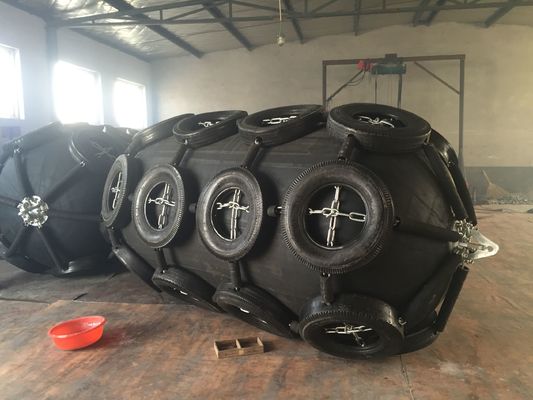

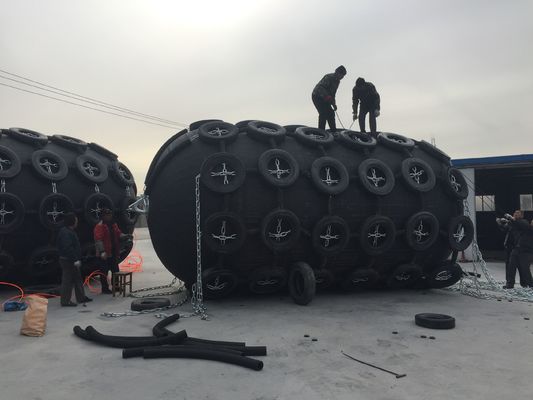

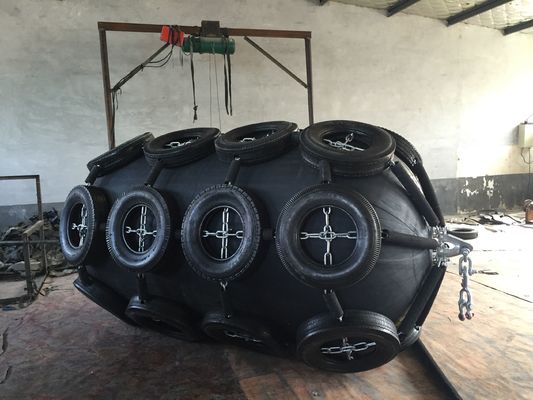

What is Rib type fender?
In 1958, the "Yokohama type inflatable rubber fender" was developed. The subsequent further development and development is the "ribbed pneumatic rubber fender". The development of this Rib type fender is closely related to the advancement of ship technology, and it must continue to meet the needs of large oil tankers such as VLCC and ULCC. Large gas carriers, bulk carriers, floating structures and docks are all inseparable from the use of inflatable fenders. Floating pneumatic fenders are widely used in ship-to-ship (STS) transfers, docks and various ships worldwide. Since its establishment, it has provided millions of fenders for the global shipboard and shipboard (STD) business, serving our important customers. These fenders play a vital protective role in the mooring and safe operation of ships.
Structure:
1. Outer rubber of ribbed fender
The outer rubber layer covering the outside of the fender protects the cord layer and the inner rubber from wear and other external forces. The compound has sufficient tensile strength and tear strength to withstand any weather conditions and arduous use. The standard color is black, but other colors can be provided upon request. Customers generally customize it as gray and white.
2. Inner rubber of ribbed fender
The rubber membrane lining seals the compressed air inside the fender. The rubber our company uses is more elastic, with higher rubber content, longer life, better cohesion and air retention.
3. Synthetic tire cord reinforcement for ribbed fenders
The reinforcement layer is made of synthetic tire cord commonly used in tires, arranged at an ideal angle to maintain internal pressure and evenly distribute force, thereby providing a powerful and effective reinforcement.

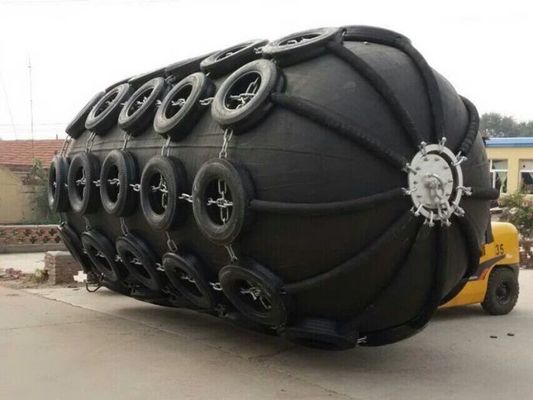

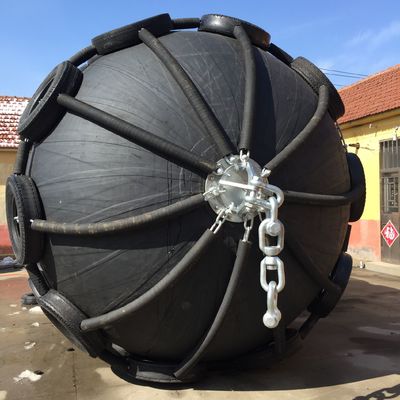

4. The flange of the ribbed fender
Henger flanges are corrosion-resistant iron castings with galvanized anti-corrosion coatings, which can greatly extend the quality and service life of the fender. The strength of Hunger's casting flange is 40% higher than that of the traditional type, and it can also be customized according to customer requirements.
5. Metal fittings of ribbed fender
All relevant metal fittings of the pneumatic fender, including shackles, towing rings, swivels, chain nets, are made of stainless steel, which can resist seawater corrosion.
Rib type fender Specifications:
| Pneumatic 50 fender size and performance requirements | ||||
|
Nominal size diameter x length |
Initial internal pressure |
Guaranteed energy absorption (GEA) |
Reaction force at GEA deflection(R) |
Hull pressure (Internal pressure) at GEA deflection (P) |
|
Minimum value at deflection 60±5% kJ |
Tolerance±10 % kN | Reference value kPa |
||
| 500 x 1000 | 50 | 6 | 64 | 132 |
| 600 x 1000 | 50 | 8 | 74 | 126 |
| 700 x 1500 | 50 | 17 | 137 | 135 |
| 1000 x 1500 | 50 | 32 | 182 | 122 |
| 1000 x 2000 | 50 | 45 | 257 | 132 |
| 1200 x2000 | 50 | 63 | 297 | 126 |
| 1350 x 2500 | 50 | 102 | 427 | 130 |
| 1500 x 3000 | 50 | 153 | 579 | 132 |
| 1700 x 3000 | 50 | 191 | 639 | 128 |
| 2000 x 3500 | 50 | 308 | 875 | 128 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 |
| 2500 x5500 | 50 | 943 | 2019 | 148 |
| 3300 x 4500 | 50 | 1175 | 1884 | 130 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 |
| 3300 x 10600 | 50 | 3067 | 5257 | 158 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 |
| 4500 x 12000 | 50 | 6473 | 7984 | 154 |
| Pneumatic 80 fender size and performance requirements | ||||
|
Nominal size diameter x length |
Initial internal pressure |
Guaranteed energy absorption (GEA) |
Reaction force at GEA deflection (R) |
Hull pressure (Internal pressure) at GEA deflection (P) |
|
Minimum value at deflection 60±5% kJ |
Tolerance±10% kN | Reference value kPa |
||
| 500 x 1000 | 80 | 8 | 85 | 174 |
| 600 x 1000 | 80 | 11 | 98 | 166 |
| 700 x 1500 | 80 | 24 | 180 | 177 |
| 1000 x 1500 | 80 | 45 | 239 | 160 |
| 1000 x2000 | 80 | 63 | 338 | 174 |
| 1200 x 2000 | 80 | 88 | 390 | 166 |
| 1350 x 2500 | 80 | 142 | 561 | 170 |
| 1500 x 3000 | 80 | 214 | 761 | 174 |
| 1700 x 3000 | 80 | 267 | 840 | 168 |
| 2000 x 3500 | 80 | 430 | 1150 | 168 |
| 2500 x 4000 | 80 | 925 | 1815 | 180 |
| 2500 x 5500 | 80 | 1317 | 2653 | 195 |
| 3300 x 4500 | 80 | 1640 | 2476 | 171 |
| 3300 x 6500 | 80 | 2532 | 3961 | 191 |
| 3300 x 10600 | 80 | 4281 | 6907 | 208 |
| 4500 x 9000 | 80 | 6633 | 7551 | 192 |
| 4500 x 12000 | 80 | 9037 | 10490 | 202 |
Features of Rib type fender:
*Hener can provide various sizes of fenders, ranging from 500mm to 4500mm in diameter and 500mm to 12000mm in length, and accept customization.
*There are many colors of fenders, black, milky white, warship-grade gray, orange-red, blue
*The fender is composed of an inner rubber layer, a reinforced wire layer and an outer rubber layer, which is more wear-resistant and has a longer life
*Rib type pneumatic rubber comprehensively test the changes of material and hydrostatic pressure
*Rib type pneumatic rubber correctly evaluates the angle and durability
*Rib type pneumatic rubber is clearly marked with all relevant signs
*Ribbed pneumatic rubber comes with the latest certification
Inflatable fender application:
1. Oil ship and natural gas ship
2. Large cruise ships and container ships
3. The fender can be installed temporarily and permanently
4. The fender can react quickly in an emergency
5. The fender is suitable for all kinds of ports with extreme tidal changes
6. The fender is suitable for ship-to-ship transportation operations
Service and transportation:
The product warranty period of Henger marine rubber fender manufacturer is 24 months.
After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.

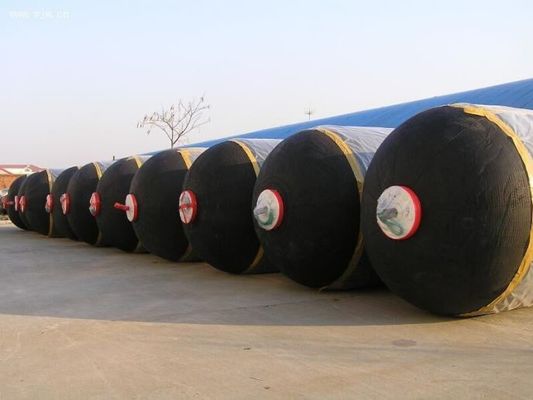

Transportation According to customer requirements, we can carry out deflated pallet transportation and small fender transportation without deflation. We always put the requirements of our customers first.
