| Certification: | CCS BV Certification ISO17357 ISO9001,ABS,DNV,LR,CCS | Part: | Marine Equipments,Flange,Pneumatic Boat Fender,Marine Fender,pneumatic Rubber Fender |
|---|---|---|---|
| Color: | Black,Blue,Black/As Requirements,All Color Can Be Accept,Black/White Or Any Color | Material: | Natural Rubber,EPDM,SBR,SILICONE,EVA |
| Application: | STD,STS,Ships And Boats,Ship Fender,Marine/quay/dock/boat | Size: | Customized,D3.3*L6.5m Pneumatic Rubber Fender,ALL,2*3.5m,3.3x6.5m |
| Name: | Pneumatic Rubber Fender,Pneumatic Boat Fender,Marine Floating Pneumatic Inflatable Rubber Fender For Sales,Floating Dock Marina Manofacturer,Marine Airbag | Product Name: | Pneumatic Rubber Fender,Marine/Dock Fender |
| Warranty Period: | 24 Months,3 Years | Type: | DO,50Kpa,Pneumatic,D,UV-protection |
| Packing: | Normal Packing,Nude Packing/As Requirement,Standard Package | Warranty: | 24 Months |
| Diameter: | 0.5m-3.3m,0.5~4.5m | Usage: | Pneumatic Marine Fenders Cone Fender,Protects Ship During Ship-to-ship Operations Or Mooring At Quay,Protect Boat |
| Length: | 0.5m~12.0m,1.0m-6.5m,1~9m | Chain: | 312,hot Galvanizing Or Stainless Steel(304,316) |
| Quality: | Excellent | Design Using Life: | 10 Years |
| Feature: | Aging Resistance | ||
| High Light: | Salvage Marine Rubber Fenders,Pneumatic Type Marine Rubber Fenders,Boat Protection inflatable marine fender |
||
The outer rubber layer covering the outside of the fender protects the cord layer and the inner rubber from wear and other external forces.

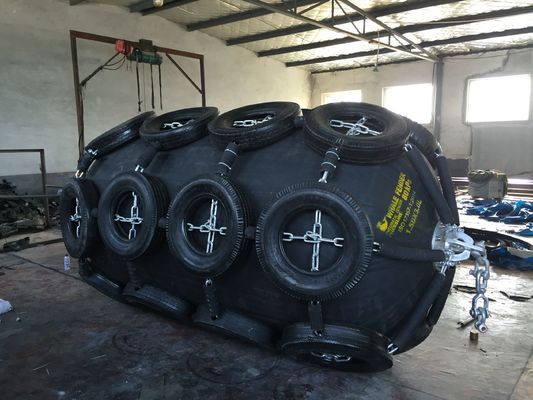

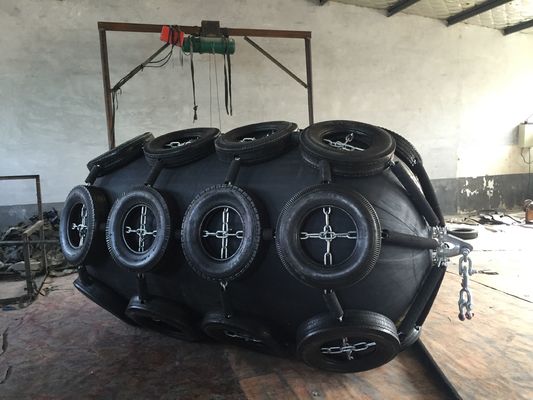

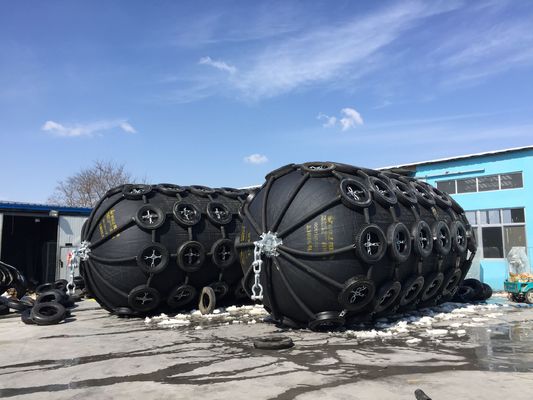

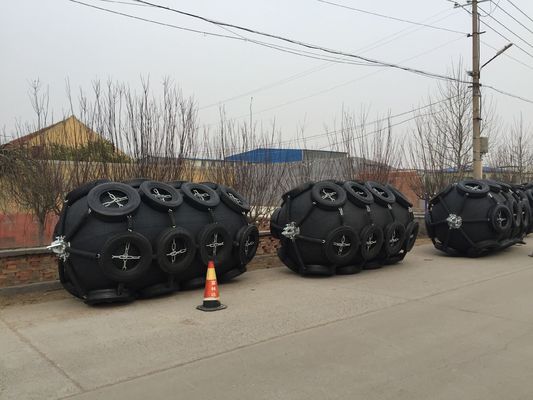

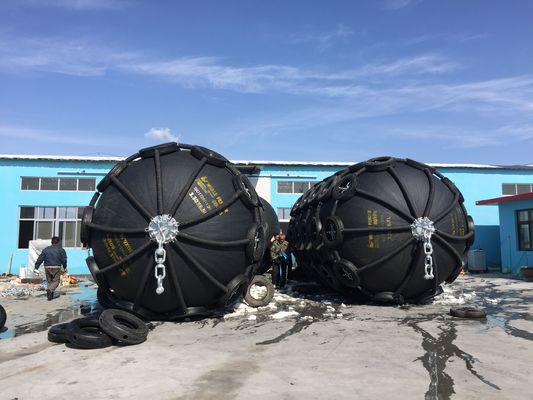

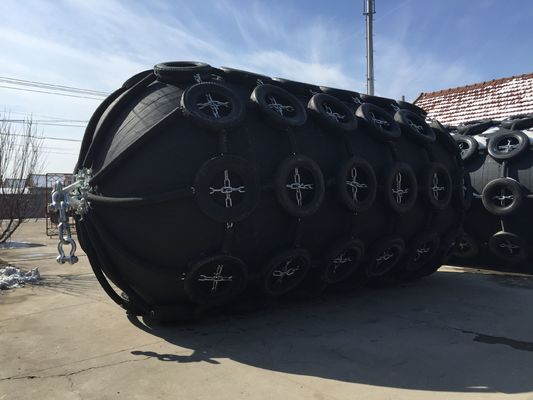

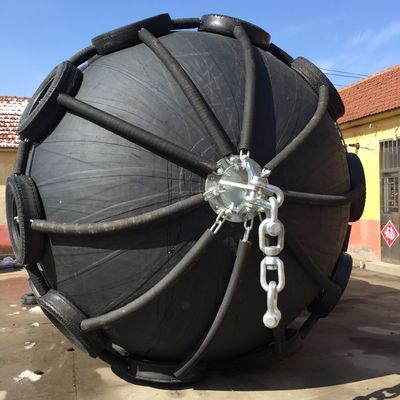

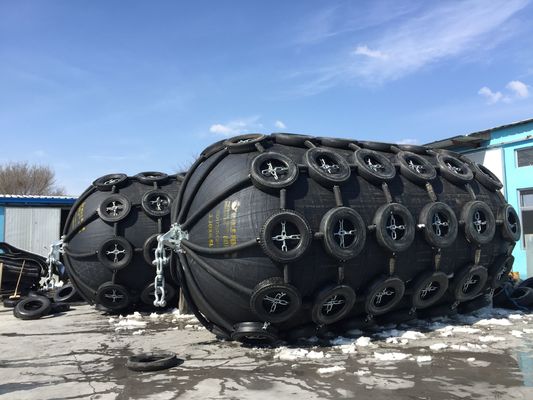

Ribbed Pneumatic Fender Introduction:
1. Outer rubber of pneumatic rubber fender
The outer rubber layer covering the outside of the fender protects the cord layer and the inner rubber from wear and other external forces. The material has sufficient tensile strength and tear strength to withstand any weather conditions and arduous use. The standard color is black, and Hener can provide other colors upon request.
2. The inner rubber of pneumatic rubber fender
The rubber membrane lining seals the compressed air inside the fender.
3. Synthetic tire cord layer for reinforcement
The reinforcement layer is made of synthetic tire cord commonly used in tires, arranged at an ideal angle to maintain internal pressure and evenly distribute stress, thereby providing a powerful and effective reinforcement.
4. Swivel shackles at both ends of the fender
Place a steel ring on one end (or both ends) of the fender and fix one end of the rope layer.
5. Fender flange
A steel flange is installed on the mudguard, and an air valve or safety valve can be installed.
6. The safety valve of the fender
Fenders with a fender diameter of 2500mm and larger should be equipped with safety valves to release excessive internal pressure when the fender is accidentally over-compressed. Mudguards with a diameter less than 2500mm can be equipped with safety valves as required.
7. The metal fittings of the fender
All relevant metal fittings of the pneumatic fender, including shackles, towing rings, swivels, chain nets, are made of stainless steel, which can resist seawater corrosion.
The following are the Yokohama Fenders specifications and detailed parameters:
| Pneumatic 50 fender size and performance requirements | ||||
|
Nominal size diameter x length |
Initial internal pressure |
Guaranteed energy absorption (GEA) |
Reaction force at GEA deflection(R) |
Hull pressure (Internal pressure) at GEA deflection (P) |
|
Minimum value at deflection 60±5% kJ |
Tolerance±10 % kN | Reference value kPa |
||
| 500 x 1000 | 50 | 6 | 64 | 132 |
| 600 x 1000 | 50 | 8 | 74 | 126 |
| 700 x 1500 | 50 | 17 | 137 | 135 |
| 1000 x 1500 | 50 | 32 | 182 | 122 |
| 1000 x 2000 | 50 | 45 | 257 | 132 |
| 1200 x2000 | 50 | 63 | 297 | 126 |
| 1350 x 2500 | 50 | 102 | 427 | 130 |
| 1500 x 3000 | 50 | 153 | 579 | 132 |
| 1700 x 3000 | 50 | 191 | 639 | 128 |
| 2000 x 3500 | 50 | 308 | 875 | 128 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 |
| 2500 x5500 | 50 | 943 | 2019 | 148 |
| 3300 x 4500 | 50 | 1175 | 1884 | 130 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 |
| 3300 x 10600 | 50 | 3067 | 5257 | 158 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 |
| 4500 x 12000 | 50 | 6473 | 7984 | 154 |
| Pneumatic 80 fender size and performance requirements | ||||
|
Nominal size diameter x length |
Initial internal pressure |
Guaranteed energy absorption (GEA) |
Reaction force at GEA deflection (R) |
Hull pressure (Internal pressure) at GEA deflection (P) |
|
Minimum value at deflection 60±5% kJ |
Tolerance±10% kN | Reference value kPa |
||
| 500 x 1000 | 80 | 8 | 85 | 174 |
| 600 x 1000 | 80 | 11 | 98 | 166 |
| 700 x 1500 | 80 | 24 | 180 | 177 |
| 1000 x 1500 | 80 | 45 | 239 | 160 |
| 1000 x2000 | 80 | 63 | 338 | 174 |
| 1200 x 2000 | 80 | 88 | 390 | 166 |
| 1350 x 2500 | 80 | 142 | 561 | 170 |
| 1500 x 3000 | 80 | 214 | 761 | 174 |
| 1700 x 3000 | 80 | 267 | 840 | 168 |
| 2000 x 3500 | 80 | 430 | 1150 | 168 |
| 2500 x 4000 | 80 | 925 | 1815 | 180 |
| 2500 x 5500 | 80 | 1317 | 2653 | 195 |
| 3300 x 4500 | 80 | 1640 | 2476 | 171 |
| 3300 x 6500 | 80 | 2532 | 3961 | 191 |
| 3300 x 10600 | 80 | 4281 | 6907 | 208 |
| 4500 x 9000 | 80 | 6633 | 7551 | 192 |
| 4500 x 12000 | 80 | 9037 | 10490 | 202 |
Ribbed Pneumatic Fender introduction:
With the advancement and development of ship technology, we must continue to deal with increasingly large tankers, such as VLCC, ULCC, large gas carriers, bulk carriers and floating structures, as well as major terminals.
Floating aerodynamic fenders are widely used in ship-to-ship (STS) transshipment operations, docks and previous collision avoidance of various ships worldwide.
Since its establishment, Henger has provided more than 20,000 fenders for ship-to-ship and ship-to-dock collision avoidance operations of our important customers worldwide. These fenders are used in the safe operation of ship mooring and mooring. It plays a vital role.
Boat Fenders and Buoys introduction:
♦Definition:
Ribbed Pneumatic Fender use compressed air as a buffer medium, so that the ship has a better anti-collision effect when it is close to the ship or dock.
♦Features of fender:
●Good external wear resistance
●Strong pressure bearing capacity
●Rubber is resistant to aging
●Long service life of fender
●Good air tightness of the fender
●The fender is easy to store
●The fender is not deformed after use
●Simple fender installation
♦The functions and applications of fenders are more extensive
●Fenders are installed on the docks and piers for mooring
●The fender can be installed on the ship for berth
●The fender can be used to carry cargo
●The fender can be used for pipe sealing
