| Certification: | BV/CCS/ISO17357CCS BV Certification ISO17357 ISO9001 | Name: | EVA Foam Filled Fender |
|---|---|---|---|
| Brand: | Henger | Material: | Polyourethane Foam |
| Size: | As Per Customer's Request | Warranty Period: | 18 Months |
| Diameter: | 0.5m~3.3m | Color: | Customers' Requirments |
| High Light: | 1.5*3mtr Foam Filled Fender,High Polyurethane Foam Filled Fender,1.5*3mtr foam filled marine fenders |
||
high polyurethane eva fender marine guard foam fender
Product Introduction

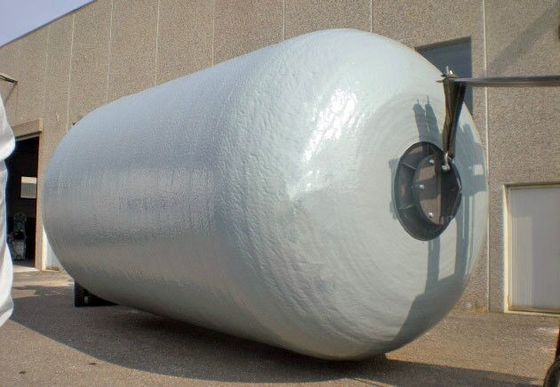

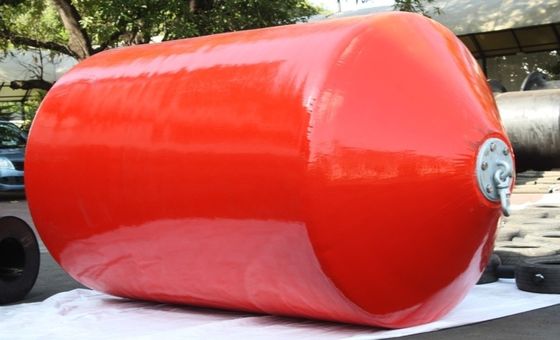

Foam filled fender,also called EVA solid fender, is a new type fender using light weight high elasticity foam as cushion medium, widely applied to harbour, offshore,STS and STD operation.Henger Foam Filled Solid Fender is made of environmental protection material and high elasticity polymeric material. long service life and high economic value of this product is achieved by the high quality material with performance of high strength, high elasticity, high adhesion, anti-leakage,and aging resistance.

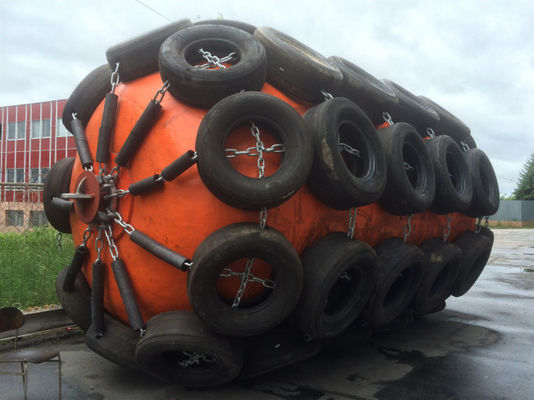

Inside of Foam Filled Solid Fender is filled with environmental protection material-EVA with coating protective layer of polyurea material on outer surface. Polyurea is an new material of adjustable high-elasticity modulus. There are galvanized flange and swivel on the fender two ends. Like pneumatic rubber fender, tyre-chain net protective jacket is also optional spare part to foam filled fender for better anti-collision performance.
EVA Polyurethane Foam Filled Floating Fender Product Feature
Henger Invented new foam fender manufacturing method with blind hole hydrophobic foam as core and polyurea as outer coating, which has following features:
Good Hydrophobicity
The core material of Henger foam filled fender is bind hole hydrophobic foam with light weight and good energy absorption capability. It wont absorb water even cracking
High Performance of Outer Coating Layer
The polyurea protective coating has very good performance of anti collision, anti friction, compression resistance, oil proof, water proof and weather fastness.
Fast and Easy Installation
The fender is made with flange and swivel for fast installation, customer could install it very fast without any professional guidance from experts.
Multiple Color Options
The appearance color could be customized in any colors appointed by customer with provided PANTONE.
Multiple Form & Size Options
The fender is made of high plasticity foam, whose appearance form and dimensional size are highly customizable.various colors, forms & sizes for option
EVA Polyurethane Foam Filled Floating Fender Technical Parameter Table
| Model |
D (mm) |
L (mm) |
Compression 60% | Reference Weight(kg) | |
| Counter-force(KN) |
Energy Absorption (KJ) |
||||
| Ø 500×1000L | 500 | 1000 | 71 | 8 | 34 |
| Ø 600×1000L | 600 | 1000 | 86 | 12 | 45 |
| Ø 700×1500L | 700 | 1500 | 161 | 27 | 101 |
| Ø 1000×1500L | 1000 | 1500 | 205 | 49 | 206 |
| Ø 1000×2000L | 1000 | 2000 | 274 | 64 | 275 |
| Ø 1200×2000L | 1200 | 2000 | 337 | 93 | 405 |
| Ø 1200×2400L | 1200 | 2400 | 390 | 110 | 475 |
| Ø 1350×2500L | 1350 | 2500 | 463 | 145 | 626 |
| Ø 1500×3000L | 1500 | 3000 | 624 | 216 | 927 |
| Ø 1700×3000L | 1700 | 3000 | 696 | 273 | 1191 |
| Ø 2000×3500L | 2000 | 3500 | 990 | 456 | 1923 |
| Ø 2000×4000L | 2000 | 4000 | 1110 | 505 | 2298 |
| Ø 2200×4500L | 2200 | 4500 | 1396 | 679 | 2992 |
| Ø 2500×4000L | 2500 | 4000 | 1386 | 781 | 3434 |
| Ø 2500×5000L | 2500 | 5000 | 1750 | 985 | 4272 |
| Ø 3000×5000L | 3000 | 5000 | 2050 | 1410 | 6411 |
| Ø 3000×6000L | 3000 | 6000 | 2460 | 1695 | 7293 |
| Ø 3300×6500L | 3300 | 6500 | 2950 | 2245 | 8335 |
| Ø 4500×9000L | 4500 | 9000 | 19650 | 7860 | 21460 |
EVA Polyurethane Foam Filled Floating Fender Application
Company Introduction
Qingdao Henger Marine Supply Co., Ltd
Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Marine Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
FAQ
Q1:What’s the material of your products?
A:Our raw material is natural rubber, and rubber-dipped nylon cord fabric
Q2:Can you do OEM?
A:Yes,we can do. As long as receive your request,we could produce accordingly.
Q3: Are you factory or trading company?
A:we are a company and factory,located in jimo city,Qingdao,near to Qingdao port and Qingdao airport, which is convenient for transportation.
Q4:What’s your delivery time and payment terms?
A:Delivery time is according to customers’ size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.
Q5:How can I get samples from you?
A:We are honored to provide you samples for check quality.Customers just confirm freight collect and then we could send out the sample by FedEx,DHL,UPS,TNT and so on.
Q6:What’s certificates can your company provide?
A:We can provide CCS,ABS,DNV,LR,BV certificates.
Q7:What about your warranty time?
A:Our warranty period is 24 months.During this time,any problems about products from our factory,we solemn promise to change and repair them for free;if problems from customers’ improper operati-ng,we could provide free guidance and repair materials.
