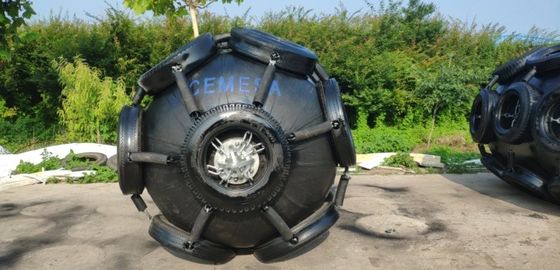

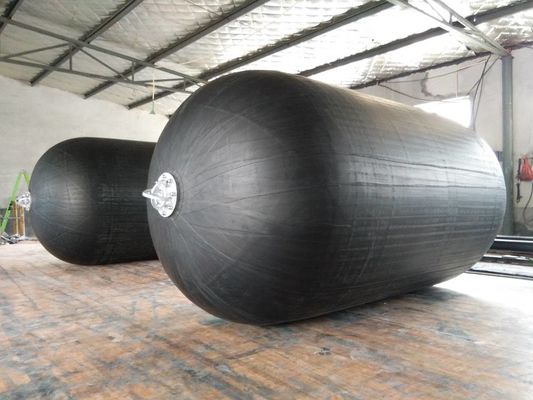

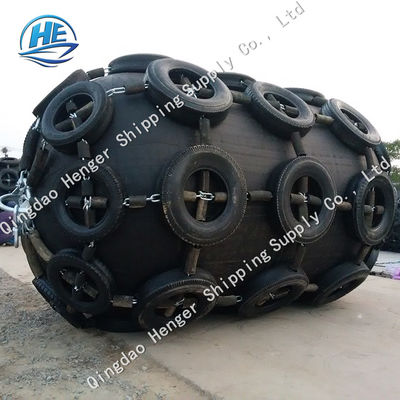

high performance iso 17357 standard 50kpa 80kpa pneumatic rubber fender
Progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.
Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.
Since its creation until today, Henger more than 10,000 fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations serving our valuable customers.These fenders play a critical role in the safe operation of ship berthing and mooring.
♦ Definition:
The pneumatic rubber fender uses compressed air as the buffer medium, which makes the ship have better anti-collision effect when it is near the ship or dock.
♦ Characteristic:
● External wear resistance
● Bearing pressure
● Ageing resistance
● Long service life
● Good air tightness
● Easy storage
● Non deformation
● Simple installation
♦ Functions & Applications
● Installed on the wharf and dock for berthing
● Installed on the shipboard for berthing
● Float chamber
● For moving the cargo
● Pipe seal
How does the fender work?
The ships fender for boats or ships fender compressed air is used as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and flexibility when docking, so as to prevent The impact of collisions and collisions.
Pneumatic rubber fender Parameter
| Pneumatic 50 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10 % kN |
Reference value kPa |
||
| 500 x 1000 | 50 | 6 | 64 | 132 |
| 600 x 1000 | 50 | 8 | 74 | 126 |
| 700 x 1500 | 50 | 17 | 137 | 135 |
| 1000 x 1500 | 50 | 32 | 182 | 122 |
| 1000 x 2000 | 50 | 45 | 257 | 132 |
| 1200 x2000 | 50 | 63 | 297 | 126 |
| 1350 x 2500 | 50 | 102 | 427 | 130 |
| 1500 x 3000 | 50 | 153 | 579 | 132 |
| 1700 x 3000 | 50 | 191 | 639 | 128 |
| 2000 x 3500 | 50 | 308 | 875 | 128 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 |
| 2500 x5500 | 50 | 943 | 2019 | 148 |
| 3300 x 4500 | 50 | 1175 | 1884 | 130 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 |
| 3300 x 10600 | 50 | 3067 | 5257 | 158 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 |
| 4500 x 12000 | 50 | 6473 | 7984 | 154 |
♦ Advantage:
● Safety and Reliability
● No Deterioration or Variation in Performance● Advantages at Inclined Berthing
● Most Cost Competitive System● Soft Reaction Force for Ship and Jetty Structure
● Lower Mooring Forces under Rough Weather Conditions

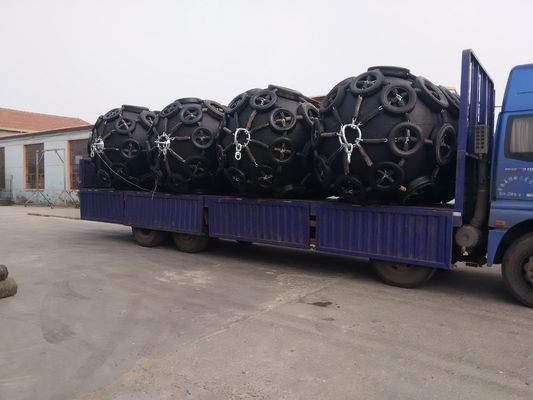

Pneumatic Rubber Fender Transportation
Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
Company Introduction
Qingdao Henger Shipping Supplies Co., Ltd Lies in Qingdao , a beautiful coastal city . Qingdao Henger Shipping Supplies Co., Ltd is a high-
tech enterprise integrated with manufacturing , research and innovation , technical services , specialized in manufacturing marine products , such
as pneumatic rubber fenders, foam filled fenders , marine rubber airbags , navigation mark , marine buoys . We are committed to ensuring
the safe docking of ships and contributing to the development of marine shipping.
