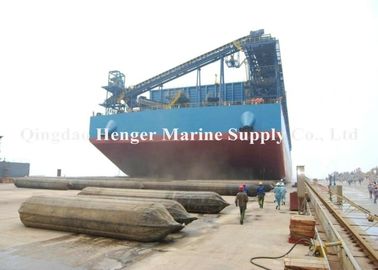

Boat Launching Ship Airbag Marine Rubber Airbag 5-10 Layers

Boat Launching Ship Airbag Marine Rubber Airbag 5-10 Layers
Boat Launching Ship Airbag Marine Rubber Airbag 5-10 Layers
video play

Large Image :  Boat Launching Ship Airbag Marine Rubber Airbag 5-10 Layers

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: CCS, ABS, LRS, BV, GL, DNV, NK
Model Number: HE-HPF
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 50-3000 PER PIECE
Packaging Details: NUDE/PALLET
Delivery Time: 7-15 WORKING DAYS
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10PCS PER WEEK
Detailed Product Description
Product Name: Marine Rubber Airbag / Ship Launching Airbag / Salvage Airbag / Heavy Lifting Airbag Brand: HENGER
Material: Natural Rubber Size: D0.5-4.5
Lifespan: 8~10 Years Layer: 5/ 6/ 7 / 8 / 9 / 10 Layers
Working Pressure: 0.05MPa-0.17MPa Usage: Dock Protection/Ship Protection/Ship To Ship Protection
Production Time: 5-8 Days Color: Black/Blue/As Requirements
High Light:

5 Layers Launching Ship Airbag

,

10 Layers Launching Ship Airbag

,

10 Layers Marine Rubber Airbag

Boat Launching Ship Airbag/airbag shipping machine/Marine Rubber Airbag



Inflatable Marine Rubber Airbag Introduction

1. Technical Requirement

According to CB/T 3795--1996, marine rubber fender should meet the following requirements.

  • Dimensional Deviation:

Diameter & Effective Length Deviation: ±2%

Total Length Deviation: ±4%

  • Amount of Elastic Deformation: diameter deformation amount ≤ 5% under 1.2 times working pressure.
  • Safety Factor: >4.5
  • Air Tightness: depressurization < 5% after 1hour inflation
  • Surface Quality: fairing line shape, no crack, no bubble, no double skin, no impurities, no distinct dirt and other apparent defect.
  • Anti-explosion design of end part.

Boat Launching Ship Airbag Marine Rubber Airbag 5-10 Layers 0

2. Manufacturing technology



The upper and lower launching of airbags for ships overcomes the drawbacks of being restricted by fixed launching slides when repairing and building ships, and has the advantages of low investment, flexible maneuverability, safety and reliability, and high comprehensive economic benefits. It is widely used in the drainage and launching of various types of ships, as well as salvaging sunken ships and moving heavy objects.
The structure of a new type of integrally wound marine high-strength airbag developed by "henger" is composed of two parts: a capsule body and an end iron part. The capsule wall is made of matrix rubber and reinforced fiber material through vulcanization, and the end iron part is made of metal material. The surrounding is tightly integrated with the bag body. One end is used for traction when carrying the air bag; the other end is used for inflation and deflation: connect the pressure gauge, inflation and deflation valve and inflation hose connector through the three-way connecting pipe. If the customer requires, the matching gas-filled pipe joints, pressure gauges and valves can be used as accessories: customers can also equip their own pipe accessories for connection.

Boat Launching Ship Airbag Marine Rubber Airbag 5-10 Layers 1

3. Manufacturing technology



"Henger" marine airbag products meet the quality requirements of CB/T3795-1996 "Airbags for Ship Discharge and Launch", and have the following advantages:

1. High carrying capacity

2. Has a high degree of resistance to kneading

3. New structure of end anti-riot design

4. Optimized structural layout

5. Durable anti-aging ability and wear resistance

6. Higher flexibility and shock absorption ability

Boat Launching Ship Airbag Marine Rubber Airbag 5-10 Layers 2



4. "Henger" brand advantages:

Stable quality: "Gute" guarantees high standards and excellent performance of all products. Each fender is tested according to ISO17357:2014 requirements.

Perfect service: "Gute" people pursue star service and modern information technology management methods ensure comprehensive, fast, active and timely pre-sales and after-sales services. The limit price: scientific management system, reasonable cost control, reduce expenditure and benefit customers.

Boat Launching Ship Airbag Marine Rubber Airbag 5-10 Layers 3



5.. Specifications



Diameter Working Pressure Working height Bearing capacity per unit length
KN/m Ton/m
D=1.0m 0.20Mpa 0.6m 125.76 12.82
0.5m 157.16 16.02
D=1.2m 0.17Mpa 0.7m 133.61 13.62
0.6m 160.3 16.34
D=1.5m 0.13Mpa 0.9m 112.63 12.5
0.8m 143.03 14.58
0.7m 163.43 16.66
D=1.8m 0.11Mpa 1.1m 120.96 12.33
1.0m 138.22 14.09
0.9m 155.59 15.86
0.8m 172.85 17.62
0.7m 190.22 19.39
D=2.0m 0.10Mpa 1.2m 125.76 12.82
1.1m 141.46 14.42
1.0m 157.16 16.02
0.9m 172.85 17.62
0.8m 188.64 19.23



Diameter(m) Effective Length(m) Layer Pressure(MPa)
1.0 10 5~6 0.07~0.10
1.0 12 5~6 0.07~0.10
1.0 15 5~6 0.07~0.10
1.2 10 5~6 0.08~0.12
1.2 12 5~6 0.08~0.12
1.2 15 5~6 0.08~0.12
1.5 12 5~8 0.08~0.16
1.5 15 5~8 0.08~0.16
1.5 18 5~8 0.08~0.16
1.5 20 4~8 0.08~0.16
1.5 24 5~8 0.08~0.16
1.8 12 5~8 0.08~0.15
1.8 15 5~8 0.08~0.15
1.8 18 5~8 0.08~0.15
1.8 20 5~8 0.08~0.15
1.8 24 5~8 0.08~0.15
2.0 18 6~10 0.08~0.18
2.0 20 6~10 0.08~0.18
2.0 24 6~10 0.08~0.18
2.5 18 7~10 0.07~0.13
2.5 20 7~10 0.07~0.13
2.5 24 7~10

0.07~0.13



6. Qingdao Henger Shipping Supplies Co., Ltd



Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc. With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.

Boat Launching Ship Airbag Marine Rubber Airbag 5-10 Layers 4Boat Launching Ship Airbag Marine Rubber Airbag 5-10 Layers 5Boat Launching Ship Airbag Marine Rubber Airbag 5-10 Layers 6



7. Airbag FAQ

FAQ ABOUT MARINE RUBBER AIRBAGS

1."Can I use marine rubber airbags for both ship launching and docking ?"
Answer: Yes, our rubber airbags are widely used for ship launching/ docking/ lifting/ moving and salvage etc.now.
2. "What's the advantage of your marine rubber airbags compared to slipway ?"
Answer:

1) our marine rubber airbags are much cheaper than slipway,but also reusable, it can save money and labor
2) our marine rubber airbags are moveable , it can save time and more flexible
3) our rubber airbags are much soft than slipway,there's no harm to the bottom of the ship.



3. "I have ships but don't know how to choose rubber airbags size ,can you help me?"
Answer: Don't worry .We have more than 20 years' experience. Pls tell me information of your ship, we can suggest suitable size for you.



4."I want to try your marine rubber airbags, but I never use it and don't know how to use ,can you help me?"
Answer: Don't worry. We will send instruction book together with our rubber airbags. We also have video . And we can go to your company to teach you using rubber airbags on site.



5."What's your MOQ of marine rubber airbags?"
Answer: Our MOQ is 1PC.



6."What's the lifespan of your marine rubber airbags?"
Answer: Designed lifespan of our marine rubber airbags is 8 to 10 years.



7."What's the warranty period of your marine rubber airbags?"
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new marine rubber airbags for you if it proved to be our quality problem.



  • "What kind of certificate can you provide for marine rubber airbags?"
    Answer: CCS, BV, SGS etc. certificates are available.

Boat Launching Ship Airbag Marine Rubber Airbag 5-10 Layers 7



1. Air tightness test

Fill the air into the pneumatic lifting bags to a certain internal test pressure without any load. After one hour, measure the internal pressure again. By comparing with two times’ data, the pressure loss should be less than 5%.



2. Performance test

Without any load, fill the air into the airbag balloon by the airbag standard data form or by clients’ requirement.

We will do the strictly inspection before the delivery for the outer appearance and the air loose test. If it is unqualified, can not release definitely.



3. Blasting test

This test should give the minimum burst pressure value of the airbag, as listed in the airbag performance table burst pressure. In order to be safe, since the airbag belongs to the pressure vessel, it is necessary to use a water flushing while filling the airbag until the airbag bursts. The water pressure during airbag blasting should be larger than or equal to the values listed in the standard performance table.



4. Compression-recovery Test

In order to verify the recoverability of the airbag, the airbag should be repeatedly and rapidly compressed and released in a short time. Due to the limitation of the airbag length and the limitation of the compression recovery equipment, the compression recovery test can be reduced by the same number of layers. The airbag is inflated to make the internal pressure reach the pressure of the airbag performance data. And the airbag is vertically compressed until the compression deformation reaches 75%. Keep this state for 1 minute. The pressure is then released and the balloon diameter should be restored to more than 97% of its original diameter within 5 minutes.





Storage of the ship launching airbag



1. When we don’t use the marine airbag roller for a long time, it should be washed and dried. Should sue the external talcum powder on the lifting airbag surface. Should put the airbag in a dry, ventilated room away from the light source. Keep away the shipping airbags safe to avoid stretching, compression and deformation.

2. Keep the airbag away from heat sources.

3. Can not contact the airbags launching to acids, alkalis, greases and organic solvents.

4. When the airbag ship is not in use, we should keep it in the status of stretched flat, not stacked, and no heavy objects piled on it



Notice during the use of the ship balloon:

1. While the shipping air launching airbags are in use, strictly control the pressure, prohibit use of exceeding the work pressure.



  • The surface in contact with the shipping lifting airbag must not have a sharp protruding hard object to prevent the airbag skin from being pierced.



  • Try to avoid distortion in the length of the airbag.
  • Should avoid the inflatable load after we have in charged the air into the airbag.
  • For example, when the ship is erected, when the lifting airbag has lifted most of the hull, remove most of the pier and fill the rolling airbag. If there are 1-2 piers still under compression, the internal pressure between the airbags should be adjusted so that the ship can be removed from the side of the ship. And the pier can not be manually used. Otherwise, the ship may be forced to impact the airbag that has been filled.
  • Another example is the collision with other objects for various reasons during the ship transfer process. In severe cases, the impact airbag may be damaged.
  • Before long time no use or re-use after repair, we should carry out the air filling test again. The air internal pressure should be the same as the factory test value of our factory. The test worker should keep away three meters from the airbag during the test. If the airbag repaired by a large area damage, we should decrease the use pressure. Therefore, for the airbag often used, still need the above test once a year.
  • Do not drag the ship launch airbag on the hard ground.









Why Choose US



(1) Highest Quality



Complified with ISO14409 & ISO17682 standard, best quality natural rubr and enhanced Nylon line. High pressure, anti-aging, wear resistane and anti-explosion.



(2) Perfect after-sale service



7x24 hours online.Our international service hotline is 86-18561375951. Any problem can be solved with the help of our professional technical team.



(3) Fastest delivery time



Highest sense of responsibility and strong production ability ensure Liangang own fastest delivery speed.





Q1:What’s the material of your products?

A:Our raw material is natural rubber, and rubber-dipped nylon cord fabric

Q2:Are you factory or trading company?

A:We are the company and factory,located in Jimo City,Qingdao,near to Qingdao port and Qingdao airport,which is convenient for transportation.

Q3:Can you do OEM?

A:Yes,we can do.As long as receive your request,we could produce accordingly.

Q4:What’s your delivery time and payment terms?

A:Delivery time is according to customers’ size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.

Q5:How can I get samples from you?

A:We are honored to provide you samples for check quality.Customers just confirm freight collect and then we could send out the sample by FedEx,DHL,UPS,TNT and so on.

Q6:What’s certificates can your company provide?

A:We can provide CCS,ABS,DNV,LR,BV certificates.

Q7:What about your warranty time?

A:Our warranty period is 24 months.During this time,any problems about products from our factory,we solemn promise to change and repair them for free;if problems from customers’ improper operating,we could provide free guidance and repair materials
