Product Details:
Payment & Shipping Terms:
|
| Product Name: | Marine Rubber Airbag / Ship Launching Airbag / Salvage Airbag / Heavy Lifting Airbag | Brand: | HENGER |
|---|---|---|---|
| Material: | Natural Rubber | Size: | D0.5-4.5 |
| Lifespan: | 8~10 Years | Layer: | 5/ 6/ 7 / 8 / 9 / 10 Layers |
| Working Pressure: | 0.05MPa-0.17MPa | ||
| High Light: | Boat Launching Marine Salvage Airbags,4.5m Marine Salvage Airbags,4.5m marine rubber airbag |
||
Inflatable Marine Rubber Airbag Introduction
6000 years ago, our ancestor begin to use log-rolling method to lift and move weights, which is still widely used in daily production and actual life nowadays. Marine rubber airbag is designed with soft rubber to lift and carry weights, based on log-rolling method.
Marine rubber airbag is an innovative product of Chinese own proprietary intellectual property rights. It has wide application like ship launching & upgrading, caisson lifting & moving, heavy weights lifting, underwater-engineering buoyancy aid. The marine rubber airbag is not limited to space and heavy machinery, which could efficiently shorten the construction period and save lots of funds.
Marine Rubber Airbag is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, installation of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are widely used in the world. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.
Marine Rubber Airbag also known as rubber airbag, ship air bags, ship launching airbag, ship salvage airbag, boat salvage airbags, inflatable airbag, ship lifting bag, air balloon, made by rubber & multi layer of rubber-dipped tyre fabric.
Marine Rubber Airbag are widely used in launching and landing ship/ boat/vessel, lifting and moving heavy goods, salvaging stranded boats.
Marine Rubber Airbag are very popular with shipyard, ship owner, and marine supplies company now.
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
Inflatable rubber airbag’s main technical requirement is regulated in CB/T 3795--1996 published by China State Shipbuilding Corporation.
Henger adopts new rubber formula and high-strength enhanced synthetic-tyre-cord layer, which improves the airbag’s bearing capacity two times more than CB/T 3795--1996 standard.
The synthetic-tyre-cord layer of Henger marine airbag adopts dipped Nylon-6 1400dtex/3-V2 tyre cord.
The strength & durability of airbag improves 20%, compared to polyester tire cord which is widely used by friendly competitors.
When the airbag is rolling under the ship bottom, it will suffer a “kneading force” from ship bottom and ground because of not uniform rolling speed, which could case problems like delamination, layer buckling, etc.
Henger improved the manufacturing technique and raw material formula to strengthen kneading-resistance capability of the airbag and avoid worse accident .
Each layers of airbag are painting with specially formulated mucilage to dissolve dust & impurities.
The specially formulated mucilage
also higher the adhesiveness among each layers to guarantee the air tightness.
While most of friendly competitors cut this process in production to save manufacturing cost.
The possibility of air leakage in the joint area of metal part and rubber part is also increasing as working pressure of airbag is added. After using for times under high working pressure, the airbag would burst and metal part would hurt workers.
Henger invented new anti-explosion design of the airbag end part, increasing the bonding strength and air tightness between rubber body part and end metal part. Henger airbag is working very well under higher working pressure without potential safety hazard.
casting metal part with chemlok coating.
chemlok coating strengthens the bonding between metal part and rubber body after vulcanization.anti-release structure of the metal part makes the connection more tight.
Henger built a strength and intensity model to test compression performance, stress intensity and direction. After testing for many times, we got the stress changeing regularity and optimized structure configuration design. The new optimized airbag successfully passed blasting experiment and achieved good performance in practical use.
Hydraulic Blasting Test is an all-around ultimate test for the performance, material, structure design, manufacturing technique of marine airbags.
The testing result of Henger Marine Airbag is beyond industrial standard
Hydraulic blasting test for Henger marine airbags Inspected by American customer and third-party detection institution
The airbag is working under bad and poor condition, suffering from long time sunlight exposure, seawater corrosion, impurities pollution, etc. The surface of airbag must be equipped with high capability of abrasion resistance, ageing resistance, corrosion resistance.
Henger airbag is made of natural rubber with special ingredients and unique manufacturing method. The finished airbag could working very well under above mentioned bad and poor working condition.
Henger airbag is manufactured with unique integral twining technique. The airbag wall thickness is uniform with secondary seam in overlap joint. When rolling in slope and uneven ship path, the flexible airbag is helpful to reduce structure stress and ship launching risk.
Heavy distortion phenomenon would cause delamination among airbag layers, then to cause more serious accidents.
Such dangerous distortion phenomenon in ship launching process never happened to Henger Marine Airbags

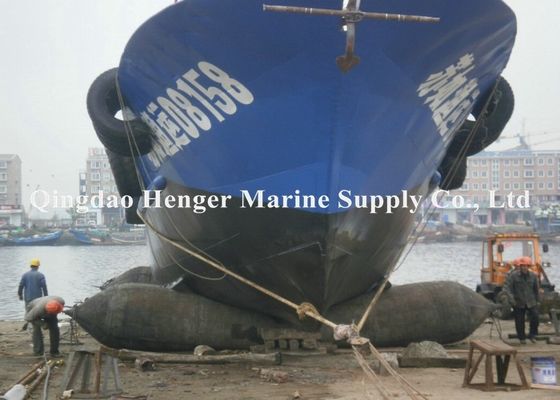

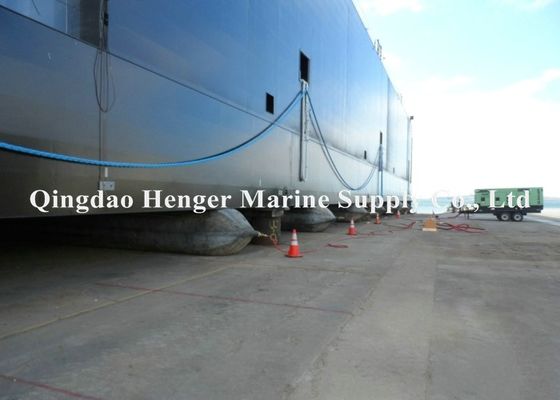

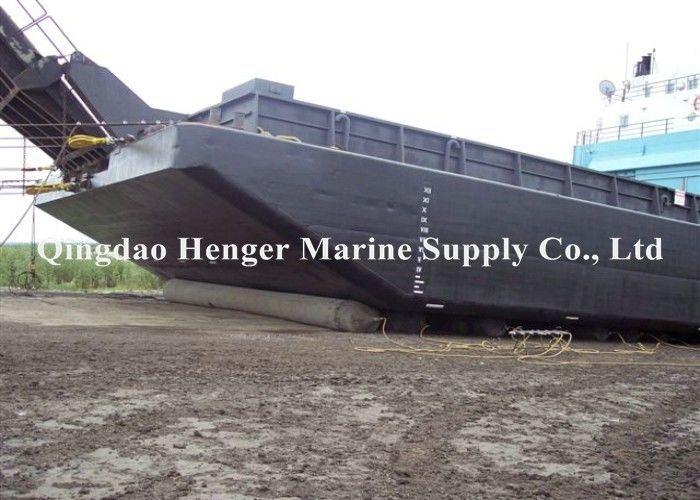

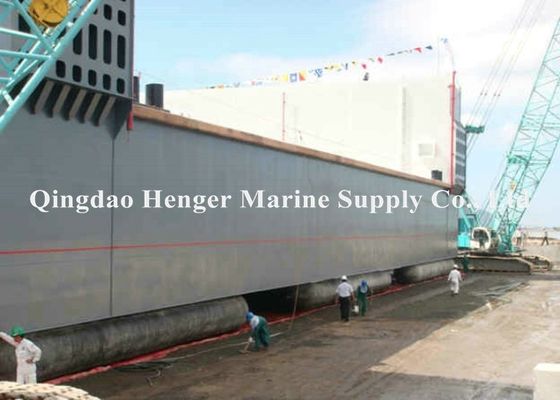

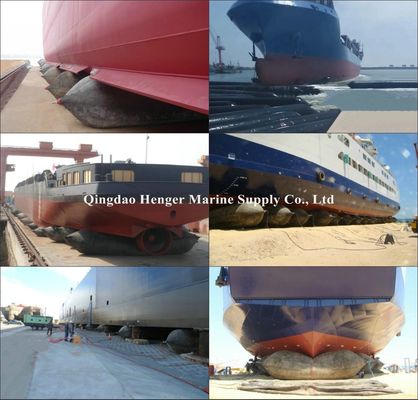

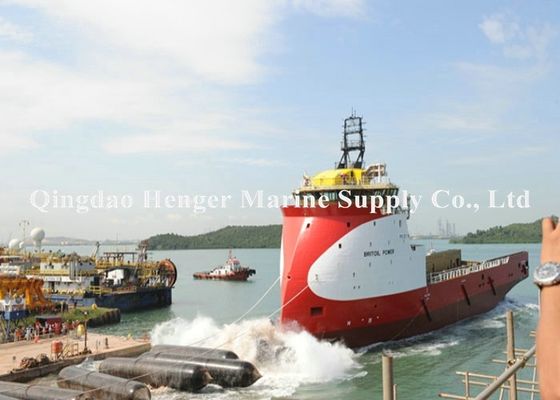

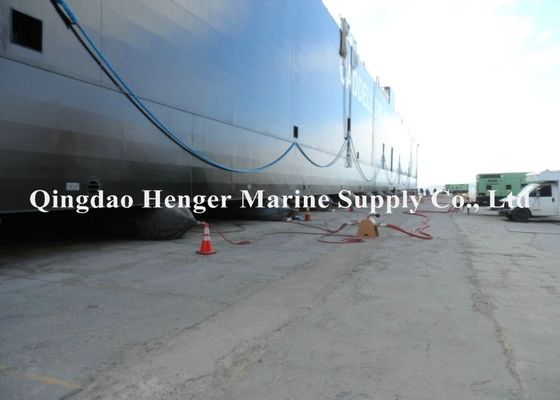

With more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.
Marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects

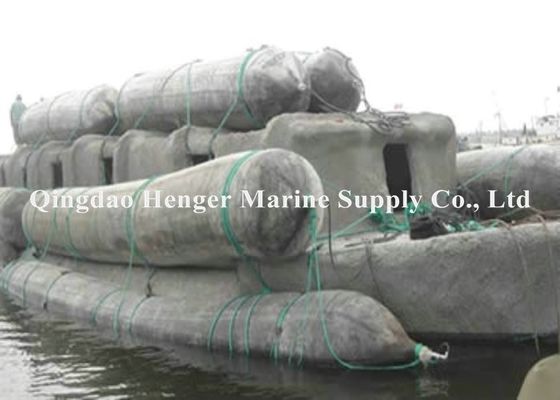

Because marine rubber airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.
Why do customers like to choose us?
1. Value for Money, you will get the best price based on the excellent quality.
2. Unrivalled Expertise, we promise first-rate product quality and service.
3. Good product lifespan and quality warranty, our products has a long servicing life for 10-15years.
4. Professional after-sales service. We will help our customers to solve any product's questions within 24 hours.
5. For our customers, we will provide a set of repaire tools with free.
Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc. With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.
FAQ ABOUT MARINE RUBBER AIRBAGS
1."Can I use marine rubber airbags for both ship launching and docking ?"
Answer: Yes, our rubber airbags are widely used for ship launching/ docking/ lifting/ moving and salvage etc.now.
2. "What's the advantage of your marine rubber airbags compared to slipway ?"
Answer:
1) our marine rubber airbags are much cheaper than slipway,but also reusable, it can save money and labor
2) our marine rubber airbags are moveable , it can save time and more flexible
3) our rubber airbags are much soft than slipway,there's no harm to the bottom of the ship.
3. "I have ships but don't know how to choose rubber airbags size ,can you help me?"
Answer: Don't worry .We have more than 20 years' experience. Pls tell me information of your ship, we can suggest suitable size for you.
4."I want to try your marine rubber airbags, but I never use it and don't know how to use ,can you help me?"
Answer: Don't worry. We will send instruction book together with our rubber airbags. We also have video . And we can go to your company to teach you using rubber airbags on site.
5."What's your MOQ of marine rubber airbags?"
Answer: Our MOQ is 1PC.
6."What's the lifespan of your marine rubber airbags?"
Answer: Designed lifespan of our marine rubber airbags is 8 to 10 years.
7."What's the warranty period of your marine rubber airbags?"
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new marine rubber airbags for you if it proved to be our quality problem.
