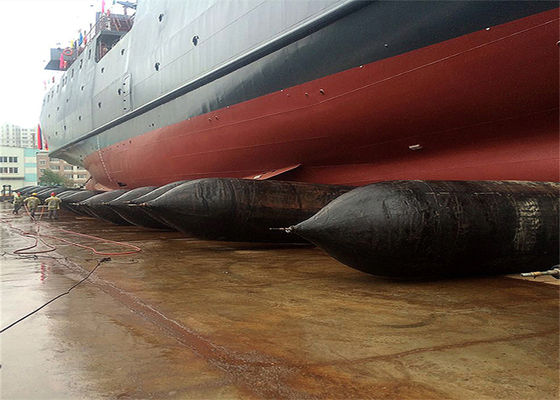

Applications The Henger Marine Rubber Airbag, model HA1-10, is a highly reliable and versatile product manufactured in Qingdao, China. Certified by BV, CCS, and DNV, this marine rubber airbag meets international production standards including ISO14409, CB/T-3795, and CB/T-3837, ensuring superior ...
| Diameter (m) | Medium Pressure (4-5) | High Pressure (6-8) | ||
|---|---|---|---|---|
| Test Pressure | Working Pressure | Test Pressure | Working Pressure | |
| 1.0 | 0.14-0.16 | 0.12-0.14 | 0.22-0.26 | 0.20-0.24 |
| 1.2 | 0.12-0.14 | 0.10-0.12 | 0.20-0.24 | 0.17-0.22 |
| 1.5 | 0.10-0.12 | 0.08-0.10 | 0.15-0.20 | 0.13-0.18 |
| 1.8 | 0.08-0.10 | 0.07-0.09 | 0.13-0.16 | 0.11-0.14 |
| 2.0 | 0.07-0.09 | 0.06-0.08 | 0.12-0.15 | 0.10-0.13 |
| Diameter (m) | Effective Length (m) | Layer | Pressure (MPa) |
|---|---|---|---|
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |

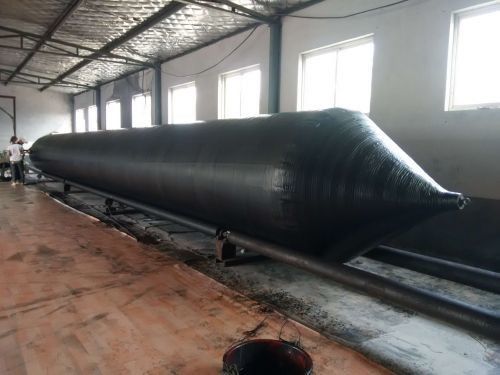

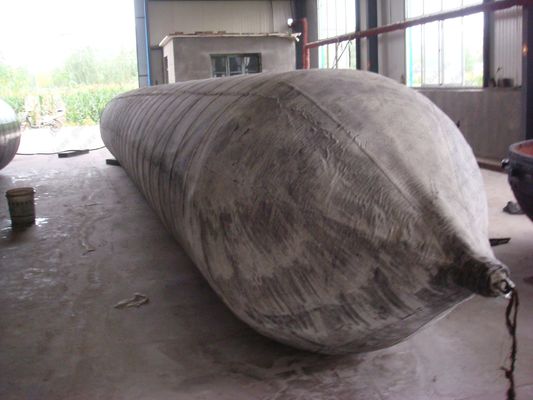

“HENGER” airbag structure are consist of the outer rubber + synthetic cord reinforced rubber layers.
Its shape characteristics: central body cylindrical + tapered on both ends.
Cord layers: 4,5,6,7,8,9,10,11,12 layers.
Lies in Qingdao, a beautiful coastal city. Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as pneumatic rubber fenders, foam filled fenders, marine rubber airbags, navigation mark, marine buoys, highway safety roller barrier. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
