Diameter 1.5M 5-8 Layers Ship Launching Airbags For Salvage Marine

China Qingdao Henger Shipping Supply Co., Ltd certification
China Qingdao Henger Shipping Supply Co., Ltd certification
we worked with Henger for 4 years, the fenders are high quality without any problems. their salesmen are all very kind and professional.

—— Paulo Anderson

Henger is the best supplier I've ever met in China for pneumatic floating fenders and foam fenders. their fenders are really real-stuff products without cutting workmanship and materials.

—— Tim

Henger has very strong R&D capability, which customized many high-tech products for our institution. wish to have better cooperation with Henger in wider marinetime area.

—— Dr. Kamran Khan

I'm Online Chat Now

Diameter 1.5M 5-8 Layers Ship Launching Airbags For Salvage Marine

Diameter 1.5M 5-8 Layers Ship Launching Airbags For Salvage Marine
Diameter 1.5M 5-8 Layers Ship Launching Airbags For Salvage Marine
video play

Large Image :  Diameter 1.5M 5-8 Layers Ship Launching Airbags For Salvage Marine

Product Details:
Place of Origin: Qingdao
Brand Name: Henger
Certification: CCS, ABS, LRS, BV, GL, DNV, NK
Model Number: HE-HPF
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 50-3000 PER PIECE
Packaging Details: NUDE/PALLET
Delivery Time: 7-15 WORKING DAYS
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10PCS PER WEEK
Detailed Product Description
Product Name: Marine Rubber Airbag / Ship Launching Airbag / Salvage Airbag / Heavy Lifting Airbag Brand: HENGER
Size: D15*L20m Ship Launching Airbag Layer: 5/ 6/ 7 / 8 / 9 / 10 Layers
Delivery Time: 7-10days Maximum Load: 250T/ M
Certification: CCS LRS GL SGS BV Warranty Period: 12 Months
Application: Ship Launching Airbag / Salvage Airbag / Heavy Lifting Airbag Packing: Nude Packing / According To Shipping Requirements
Working Pressure: 50kpa/80kpa
High Light:

8 Layers Ship Launching Airbags

,

1.5M Ship Launching Airbags

,

5 Layers boat lift air bags

ship launching airbags for salvage marine



Inflatable Marine Rubber Airbag Introduction



1. Marine Rubber Airbags

Marine Rubber Airbag is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, installation of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are widely used in the world. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.

Diameter 1.5M 5-8 Layers Ship Launching Airbags For Salvage Marine 0Diameter 1.5M 5-8 Layers Ship Launching Airbags For Salvage Marine 1

2. Manufacturing technology

Whole Intertwine Technology
"HENGER" Airbags overall frame structure uses cross whole intertwine technology, the overall structure is more reasonable, texture clear, no juncture, high loads, more safety than lap technology (roller), more than 20% bearing capacity.

Framework

“HENGER” airbag structure are consist of the outer rubber + synthetic cord reinforced rubber layers.Its shape characteristics: central body cylindrical + tapered on both ends. Cord layers: 4,5,6,7,8,9,10,11,12 layers.

Diameter 1.5M 5-8 Layers Ship Launching Airbags For Salvage Marine 2

1. Some normal sizes of our Marine Rubber Airbag, customized sizes are also available



Diameter(m) Effective Length(m) Layer Pressure(MPa)
1.0 10 5~6 0.07~0.10
1.0 12 5~6 0.07~0.10
1.0 15 5~6 0.07~0.10
1.2 10 5~6 0.08~0.12
1.2 12 5~6 0.08~0.12
1.2 15 5~6 0.08~0.12
1.5 12 5~8 0.08~0.16
1.5 15 5~8 0.08~0.16
1.5 18 5~8 0.08~0.16
1.5 20 4~8 0.08~0.16
1.5 24 5~8 0.08~0.16
1.8 12 5~8 0.08~0.15
1.8 15 5~8 0.08~0.15
1.8 18 5~8 0.08~0.15
1.8 20 5~8 0.08~0.15
1.8 24 5~8 0.08~0.15
2.0 18 6~10 0.08~0.18
2.0 20 6~10 0.08~0.18
2.0 24 6~10 0.08~0.18
2.5 18 7~10 0.07~0.13
2.5 20 7~10 0.07~0.13
2.5 24 7~10 0.07~0.13

2. Specifications

Diameter(m) 1.0 1.2 1.5 1.8 2.0
Medium Pressure
(4-5)
Test Pressure 0.14-0.16 0.12-0.14 0.10-0.12 0.08-0.10 0.07-0.09
Working Pressure 0.12-0.14 0.10-0.12 0.08-0.10 0.07-0.09 0.06-0.08
High Pressure
(6-8)
Test Pressure 0.22-0.26 0.20-0.24 0.15-0.20 0.13-0.16 0.12-0.15
Working Pressure 0.20-0.24 0.17-0.22 0.13-0.18 0.11-0.14 0.10-0.13

Diameter 1.5M 5-8 Layers Ship Launching Airbags For Salvage Marine 3

  • High Bearing Capacity

Inflatable rubber airbag’s main technical requirement is regulated in CB/T 3795--1996 published by China State Shipbuilding Corporation.

Henger adopts new rubber formula and high-strength enhanced synthetic-tyre-cord layer, which improves the airbag’s bearing capacity two times more than CB/T 3795--1996 standard.

The synthetic-tyre-cord layer of Henger marine airbag adopts dipped Nylon-6 1400dtex/3-V2 tyre cord.

The strength & durability of airbag improves 20%, compared to polyester tire cord which is widely used by friendly competitors.



  • High Kneading-resistance Capability

When the airbag is rolling under the ship bottom, it will suffer a “kneading force” from ship bottom and ground because of not uniform rolling speed, which could case problems like delamination, layer buckling, etc.

Henger improved the manufacturing technique and raw material formula to strengthen kneading-resistance capability of the airbag and avoid worse accident .

Each layers of airbag are painting with specially formulated mucilage to dissolve dust & impurities.

The specially formulated mucilage

also higher the adhesiveness among each layers to guarantee the air tightness.

While most of friendly competitors cut this process in production to save manufacturing cost.

Diameter 1.5M 5-8 Layers Ship Launching Airbags For Salvage Marine 4

2. Marine Rubber Airbag Application

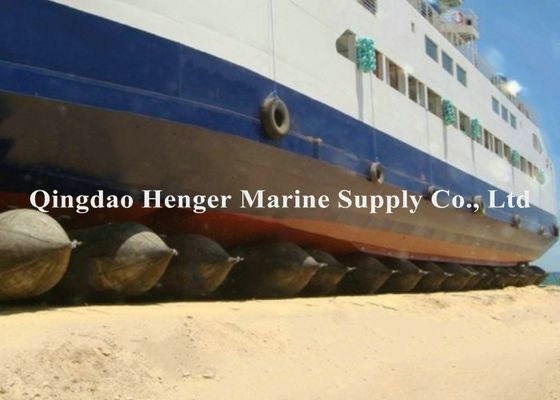

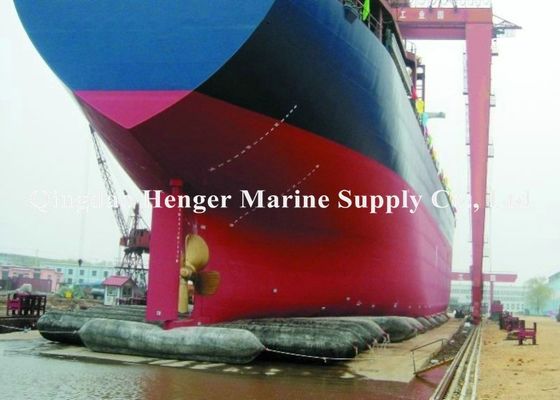

  • Ship Launching & Upgrading

With more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.

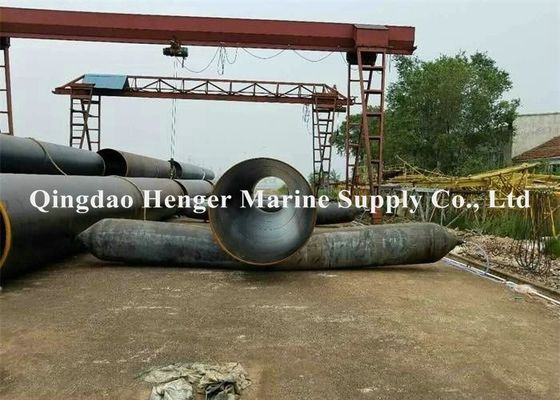

  • Weight Lifting & Moving

Marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects

  • Buoyancy Aid & Salvage

Because marine rubber airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.

Diameter 1.5M 5-8 Layers Ship Launching Airbags For Salvage Marine 5

2. Our Services

Why do customers like to choose us?

1. Value for Money, you will get the best price based on the excellent quality.

2. Unrivalled Expertise, we promise first-rate product quality and service.

3. Good product lifespan and quality warranty, our products has a long servicing life for 10-15years.

4. Professional after-sales service. We will help our customers to solve any product's questions within 24 hours.

5. For our customers, we will provide a set of repaire tools with free.

2. FAQ



1. Minimum Order Quantity ( MOQ): 1 Pcs

2. Delivery time: 7 days ( depends on the quantity of order)

3. Certificates: ISO 9001:2008, CCS, SGS, BV etc.

4. Production standard: ISO14409 & GB/T 3795-1996

5. Expected lifespan: 10-15 years.

6. Warranty period: 24 Monthes

7. Factory direct selling of Marine rubber airbags Please inquiry our salespersons for the best price.
