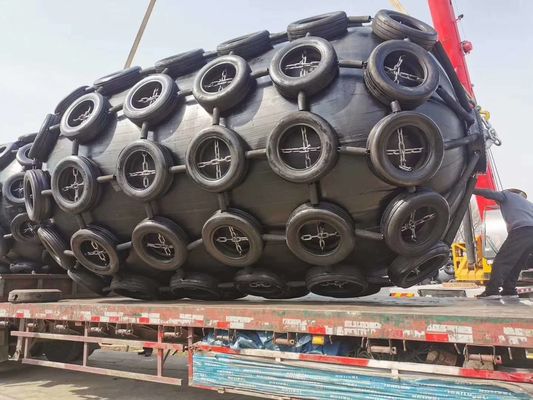

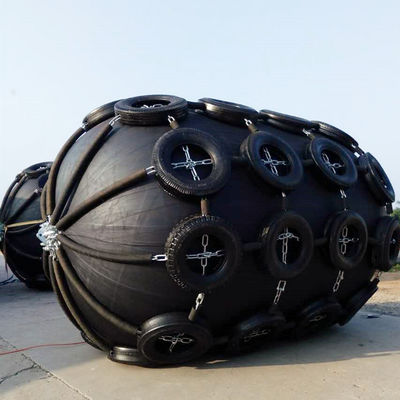

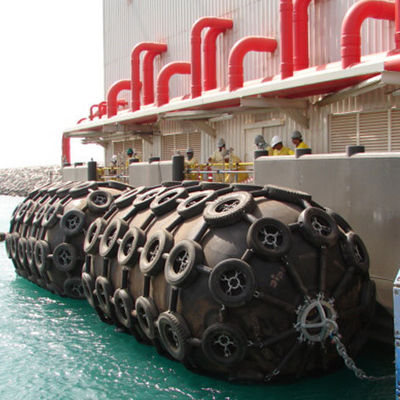

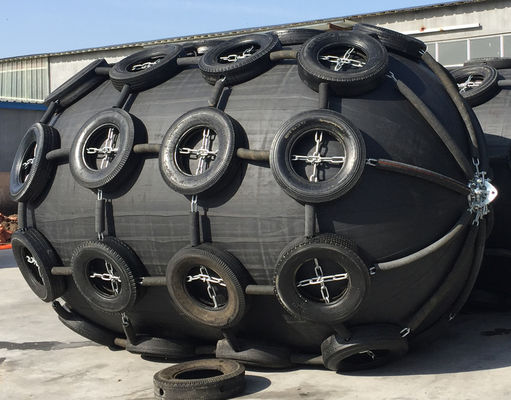

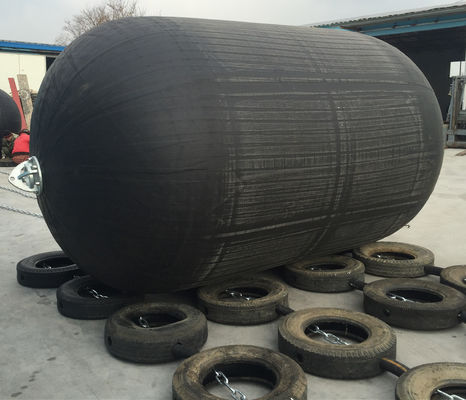

Pneumatic rubber fender with tire sheath type Tyre To Ship Protection 50KPa Or 80Kpa





1. EVA Polyurethane Foam Filled Floating Fender Product Advantage



• Good floatability makes the installation site not affected by tidal range.
• Non-pneumatic operation, free from scratch and fiction,seawater corrosion resistance and high salt-alkalia tolerance, longer service life up to 15 years without regular maintenance.
• Higher safety factor, free from explosion risk.

2. EVA Polyurethane Foam Filled Floating Fender Product Feature



Henger Invented new foam fender manufacturing method with blind hole hydrophobic foam as core and polyurea as outer coating, which has following features:



Good Hydrophobicity

The core material of Henger foam filled fender is bind hole hydrophobic foam with light weight and good energy absorption capability. It wont absorb water even cracking



High Performance of Outer Coating Layer

The polyurea protective coating has very good performance of anti collision, anti friction, compression resistance, oil proof, water proof and weather fastness.



Fast and Easy Installation

The fender is made with flange and swivel for fast installation, customer could install it very fast without any professional guidance from experts.



Multiple Color Options

The appearance color could be customized in any colors appointed by customer with provided PANTONE.



Multiple Form & Size Options

The fender is made of high plasticity foam, whose appearance form and dimensional size are highly customizable.various colors, forms & sizes for option

3. Henger's Product Advantage



● Good Hydrophobicity

● High Performance of Outer Coating Layer

● Fast and Easy Installation

● Multiple Color Options

● Multiple Form & Size Options

● High energy absorption capability and lower reaction force.

4. Advantages Of Polyurethane Elastomer:



● High wear resistance which is 3-5times of nature rubber.

● Excellent oil resistance which is 4times of NBR.

● High mechanical strength.Its tensile intention and tear strength and burden capability are several times of common rubbers.

● Excellent tolerance of acid, alkali, low temperance and organic solvent.

● High metal-bonding performance.

● Wide hardness range from Shore A100 adjustable.



5. Characteristic:



● Having the capability of floating, not easily influenced by the ebb and flow of the tide.

● Bright colors. Various colors can be offered according to the customers demands.

● Compared with inflatable fender, it boasts the characteristics if safety and maintenance’ free with working life as long as 15 to 30 years, wanting no inflating, resistant to scarification, pricking, friction, seawater, acid and alkali.

● Solid but light,easy to install and move.

● When compressed to 60%, it’s reaction force grows obviously from little to largeness, and energy absorption is very high.



6. Advantages



l High Energy, Low Reaction
The high elasticity of expanded ensures high energy absorption with low reaction force of foam filled marine fenders, which is essential to eliminate the risk of damage to the vessel hull.



l Unsinkable
Foam Filled Marine Fenders are entirely made of closed cell foam that guarantees unsinkability even in case of damage caused by breaking, rupturing or shearing when hitting rough vessel sides. Ever cell is separate and so water cannot migrate into the foam filled marine fenders.



l Strong Reinforcement
The Ever-Guard foam filled marine fenders skin is constructed of tough and thick , which provides foam filled marine fenders with unsurpassed strength. The skins is wrapped in a helix pattern and integrated within the skin itself. This advanced technique process makes the Ever-Guard foam filled marine fenders skin extremely durable to all weather, forces and marine conditions.



l Wear Resistant
The polyurethane or is spray applied on foam filled marine fenders. This creates a high quality and homogeneous skin matrix combining extreme wear resistance with non-marking properties and the option of high visibility colors.



l Enhancing Port Ability
The adoption of super size foam filled marine fenders enlarged the space between the ships and parapet of the wharf, and improves the depth of the berth, consequently improves the ability of loading/unloading, so as to create a new approach for upgrading the wharfs and improved the handling efficiency.



7. Products Advantages



1.Henger polyurethane Eva foam filled fender made of high-quality high density Eva foam and new formulations to coating polyurea ,so the eva foam filled fender is have beautiful colors and very durable.

A)Inner:We use high density closed cell eva foam, do not absorb water and have big buoyancy

B)Outer:We coating high quality polyurea elastomer outside , the surface is bright and clean and have certain elasticity

2)At both ends: For small polyurethane eva foam fender can use rope hanging on both sides. For Large eva foam fender will use rings or flange for connection.

3)Shape: we can make customer size, shape and color;also can make rope net or tyre-chain net outside to protect the fender body.

4)Long life span

5)qualified products delivery after testing



* All packing method and shipping method of pneumatic rubber fenders are done as per to csutomer's requirement.



Our Company



Qingdao Henger Shipping Supplies Co., Ltd Lies in Qingdao , a beautiful coastal city . Qingdao Henger Shipping Supplies Co., Ltd is a high-

tech enterprise integrated with manufacturing , research and innovation , technical services , specialized in manufacturing marine products , such

as pneumatic rubber fenders, foam filled fenders , marine rubber airbags , navigation mark , marine buoys . We are committed to ensuring

the safe docking of ships and contributing to the development of marine shipping.

Our Exhibition



1. EVA Polyurethane Foam Filled Floating Fender Technical Parameter Table



Model	D (mm)	L (mm)	Compression 60%		Reference Weight(kg)
			Counter-force(KN)	Energy Absorption (KJ)
Ø 500×1000L	500	1000	71	8	34
Ø 600×1000L	600	1000	86	12	45
Ø 700×1500L	700	1500	161	27	101
Ø 1000×1500L	1000	1500	205	49	206
Ø 1000×2000L	1000	2000	274	64	275
Ø 1200×2000L	1200	2000	337	93	405
Ø 1200×2400L	1200	2400	390	110	475
Ø 1350×2500L	1350	2500	463	145	626
Ø 1500×3000L	1500	3000	624	216	927
Ø 1700×3000L	1700	3000	696	273	1191
Ø 2000×3500L	2000	3500	990	456	1923
Ø 2000×4000L	2000	4000	1110	505	2298
Ø 2200×4500L	2200	4500	1396	679	2992
Ø 2500×4000L	2500	4000	1386	781	3434
Ø 2500×5000L	2500	5000	1750	985	4272
Ø 3000×5000L	3000	5000	2050	1410	6411
Ø 3000×6000L	3000	6000	2460	1695	7293
Ø 3300×6500L	3300	6500	2950	2245	8335
Ø 4500×9000L	4500	9000	19650	7860	21460

if there is customizing size requirement, please kindly contact our sale service staff.



2. Technical Parameter



Model	D (mm)	L (mm)	Compressible 60%		Weight (kg)
			Counter-force (KN)	Energy Absorption (KJ)
Ø 500×1000L	500	1000	71	8	34
Ø 600×1000L	600	1000	86	12	45
Ø 700×1500L	700	1500	161	27	101
Ø 1000×1500L	1000	1500	205	49	206
Ø 1000×2000L	1000	2000	274	64	275
Ø 1200×2000L	1200	2000	337	93	405
Ø 1200×2400L	1200	2400	390	110	475
Ø 1350×2500L	1350	2500	463	145	626
Ø 1500×3000L	1500	3000	624	216	927
Ø 1700×3000L	1700	3000	696	273	1191
Ø 2000×3500L	2000	3500	990	456	1923
Ø 2000×4000L	2000	4000	1110	505	2298
Ø 2200×4500L	2200	4500	1396	679	2992
Ø 2500×4000L	2500	4000	1386	781	3434
Ø 2500×5000L	2500	5000	1750	985	4272
Ø 3000×5000L	3000	5000	2050	1410	6411
Ø 3000×6000L	3000	6000	2460	1695	7293
Ø 3300×6500L	3300	6500	2950	2245	8335
Ø 4500×9000L	4500	9000	19650	7860	21460

1. After-sale service



Quality is the cornerstone, service is the soul. We continue to provide our customers with stable & reliable quality pneumatic rubber fenders with a comprehensive system of technical support, meticulous and thoughtful after-sales service to win customers trust and satisfaction. Qingdao Henger Shipping Supplies Co., Ltd provides following services to all customers.



• 24 hours instant online technical consultation and support.
• 24 months warranty period(without any artificial damage) and free repairing service within warranty period.

• lifetime repairing service.



2. OUR SERVICE



1. TEAM

We have a highly efficient team of mature companies, Trading to save time, avoid the problem

2. EXPERIENCE

We have more than 7 years of experience in wood products production, the goods time short.

3. EXHIBITION

Every year we will attend the exhibition, face-to-face communication.

1. Company Introduction



Qingdao Henger Marine Supply Co., Ltd



Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Marine Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.





2. Company introduction

Qingdao Henger Shipping Supplies Co., Ltd

Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc. With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.









3. About Henger's Product



♦ Company mainly produces and sells inflatable rubber fenders, EVA polyurethane fenders and marine airbags, and the products are unique formula and advanced production technology.

♦ Company products has passed ISO9001:2000, CCS, DNV, LR ,etc.

♦ Company products are exported to USA, France, Italy, UK, Singapore, Indonesia, Korea and other countries and regions.



After Sales Service



Quality is the cornerstone, service is the soul.

We continue to provide our customers with stable & reliable quality pneumatic rubber fenders with a comprehensive system of technical support, meticulous and thoughtful after-sales service to win customers trust and satisfaction.



Qingdao Henger Shipping Supplies Co., Ltd provides following services to all customers.

1. 24 hours instant online technical consultation and support.

2. 24 months warranty period(without any artificial damage) and free repairing service within warranty period.

3. lifetime reparing service.





FAQ



Q: What’s the material of your pneumatic fender products ?
A: the main raw materials are natural rubber, synthetic-tyre-cord fabric and customized hardwares, etc.

Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao airport, which is convenient in transportation logistics.

Q: Is OEM service available ?
A: yes

Q: What’s the delivery time and payment terms ?
A: Delivery time is based on product model and order quantity. normally it is around 7-15 working days.

The payment could paid by T/T, L/C, Western Union, Paypal, etc.
