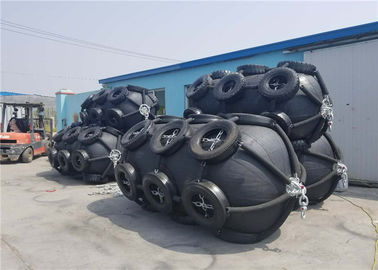

Synthetic Fishing Ship 50kPa Pneumatic Rubber Fender

Pneumatic Rubber Fender with a High Cost Performance

1. Company Introduction

In general, for ship-to-ship operation of light ships, two points of contact are sufficient. However, for the operation of large ships by ship, an additional 1-2 fenders of the same specification must be used to ensure safety. Inflatable rubber fenders can be used as the main protection system to absorb the energy of the ship to the ship, while keeping the two ships at a certain distance. In addition, a small inflatable rubber fender can also be hung on the side of the ship as a secondary protection. Inflatable rubber fenders require chains and rope links to be hung from the ship or dock, and their specifications are selected according to the size of the fender and the environment in which it is used.

2. Pneumatic rubber fender Structure

1 Outer rubber

The outer rubber layers that covers the outside of fender protects the cord layers and the inner rubber from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage. Standard color is black, but other colors are available on request.

2 Inner rubber

The liner of a rubber membrane seals the pressurized air inside the fenders.

3 Synthetic tire cord layers for reinforcement

The reinforcement layers, which are made of synthetic tire cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly providing strong efficient reinforcement.

4 Beading ring

A steel ring is placed at one end (or both ends) of the fender and holds the end of cord layers.

5 Flange

A steel flange is mounted on the fender, to which an air valve or safety valve can be adapted.

6 Safety valve

Fenders of diameter 2500mm and larger shall be equipped with safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally. Fender which are smaller than 2500mm in diameter, can be equipped with a safety valve if required.

7 Metal accessories

All the relevant metal accessories of pneumatic fenders, include shackles, towing rings, swivels, chain net, are made of stainless steel, which are resistant for sea water corrosion.

3. Pneumatic rubber fender Parameter

4. Pneumatic Rubber Fender Features

Unique Design of Henger Pneumatic Rubber Fender

Active-Protecting Safety Valve , All fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.

It is a patented design which could avoid explosion of fenders from collision and air inflation.

Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.

5. Pneumatic Rubber Fender Application

Pneumatic Rubber Fenders are suitable for many applications including:

1. Tankers, Gas Carries and Bulk Cargo Ships;

2. Fast ferries and aluminum hulled vessels;

3. Temporary of permanent installations;

4. Rapid response and emergency fendering;

5. As stand-off fenders to realign ships with shore facilities.

6. After-sale service

The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.

After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
