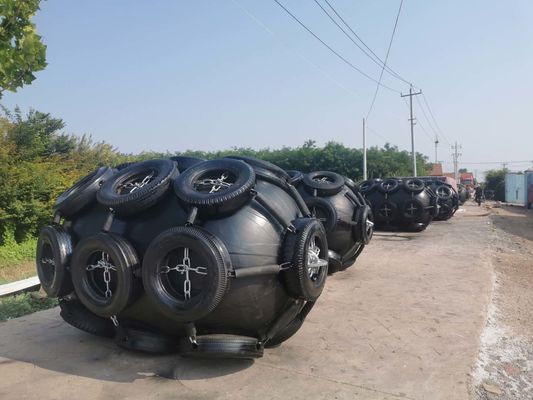

Fishing Ship 50kPa 4.5*9m Pneumatic Rubber Fender

Fishing Ship 50kPa 4.5*9m Pneumatic Rubber Fender

MOQ: 1PC
Price: USD 50-3000 PER PIECE
Standard Packaging: NUDE/PALLET
Delivery Period: 7-15 WORKING DAYS
Payment Method: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 10PCS PER WEEK
Detail Information
Place of Origin
China
Brand Name
Henger
Certification
CCS, ABS, LRS, BV, GL, DNV, NK
Model Number
L1m D2m
Product Name:
Pneumatic Rubber Fender/Marine Fender/Yokohama Fender
Brand:
Henger
Material:
Natural Rubber
Size:
0.5*1m~4.5*9m
Certification:
CCS/BV/ABS/ISO17357/ISO9001
Warranty:
24 Months
Working Pressure:
50kPa/80kPa
Highlight:

4.5*9m Pneumatic Rubber Fender

,

50kPa Pneumatic Rubber Fender

,

Fishing Ship Pneumatic Rubber Fender

Product Description

Pneumatic rubber fender has a high cost performance



1. Pneumatic rubber fender introduction



How does the fender work?



The pneumatic fender or inflatable rubber fender or Yokohama fender compressed air is used as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and flexibility when docking, so as to prevent The impact of collisions and collisions.





2. Pneumatic rubber fender Parameter

Ship Tonnage(T) Recommendation SizeD×L(m) Ship Type
50 0.5*1.0 Fishing ship
100 0.7*1.5~1.0*1.5 Fishing ship
200 1.0*1.5~1.2*2.0 Fishing ship,towing ship
300-500 1.2*2.0~1.5*2.5 Fishing ship,towing ship
1000 1.5*2.5~1.5*3.0 Towing ship,cargo ship
3000 2.0*3.0~2.0*3.5 cargo ship,ocean trawler
10000 2.0*3.5~2.5*4.0 cargo ship


3. Pneumatic rubber fender Parameter



Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection(R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10 % kN

Reference value

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154



Fishing Ship 50kPa 4.5*9m Pneumatic Rubber Fender 0



Fishing Ship 50kPa 4.5*9m Pneumatic Rubber Fender 1Fishing Ship 50kPa 4.5*9m Pneumatic Rubber Fender 2

4. Pneumatic Rubber Fender Features

Unique Design of Henger Pneumatic Rubber Fender



Active-Protecting Safety Valve , All fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.

It is a patented design which could avoid explosion of fenders from collision and air inflation.



Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.

Fishing Ship 50kPa 4.5*9m Pneumatic Rubber Fender 3

5. Pneumatic Rubber Fender Application

Pneumatic Rubber Fenders are suitable for many applications including:

1. Tankers, Gas Carries and Bulk Cargo Ships;

2. Fast ferries and aluminum hulled vessels;

3. Temporary of permanent installations;

4. Rapid response and emergency fendering;

5. As stand-off fenders to realign ships with shore facilities.



6. Company Introduction

QINGDAO HENGER SHIPPING SUPPLIES CO.,LTD



Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.



Since its creation until today, Henger more than 10,000 fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations serving our valuable customers.These fenders play a critical role in the safe operation of ship berthing and mooring.



Fishing Ship 50kPa 4.5*9m Pneumatic Rubber Fender 4

7. FAQ

Q: What’s the material of your pneumatic fender products ?
A: the main raw materials are natural rubber, synthetic-tyre-cord fabric and customized hardwares, etc.


Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao airport, which is convenient in transportation logistics.


Q: Is OEM service available ?
A: yes


Q: What’s the delivery time and payment terms ?
A: Delivery time is based on product model and order quantity. normally it is around 7-15 working days.

The payment could paid by T/T, L/C, Western Union, Paypal, etc.
