Payment & Shipping Terms:
|Product Name:||Pneumatic Rubber Fender/Marine Fender/Yokohama Fender||Brand:||Henger|
|Working Pressure:||50kPa/80kPa||Usage:||Dock Protection/ship Protection/ship To Ship Protection|
|Production Time:||5-8 Days||Color:||Black/blue/as Requirements|
|Using Life:||10years||Payment Method:||D/A, L/C, D/P, T/T, Western Union, MoneyGram|
Floating Rubber Pneumatic Marine Fender,
50kPa Rubber Pneumatic Marine Fender,
9m Pneumatic Marine Fender
9m 50kPa Floating Rubber Pneumatic Marine Fender

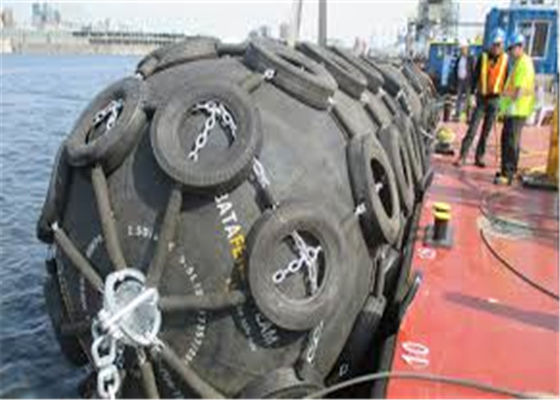

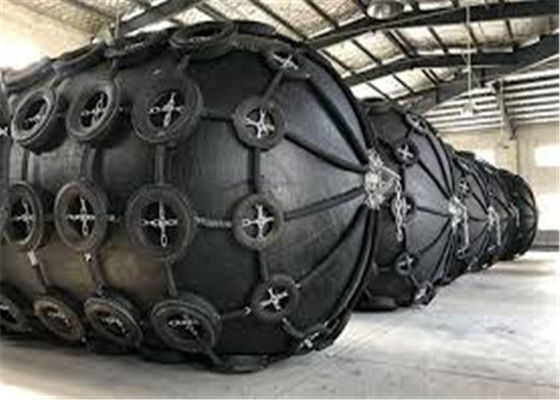

Inflatable rubber fender (by ball) is a marine anti-collision product made of compressed air. Compressed air is mainly used as the buffer medium to absorb the impact energy of the ship, making the ship more flexible and soft when docking, so as to achieve the effect of collision and collision avoidance. Yokohama type ball is a kind of sheath type ball. Usually aircraft tires or engineering tires are used to wrap the ball. Both ends are equipped with shoulder straps, which are widely used for ship-to-ship transfer operations and ship berthing operations. Wait. The size is: D0.5m x L1.0m ~ D3.3m x L6.5m. Inflatable fenders (by ball) are produced in strict accordance with ISO17357-2002 and GB/T 21482-2002 international quality standards, and their products are exported to all over the world.
Yokohama fender Features:
1. Large compression deformation, low reaction force, large energy absorption
2. Good floating performance, able to adapt to changes in tide level
3. Use compressed air as the medium, and use compressed air to do work to consume collision energy
4. Simple installation and long service life
Yokohama fender structure:
1. Outer glue:
The rubber layer covering the outside of the ball is used to protect the frame material and inner rubber of the ball from damage or abrasion by external forces. Main features: high strength, wear resistance and tear resistance.
2. Nylon cord reinforcement layer:
The reinforcement layer is composed of a layer of nylon cords, which maintains the air pressure inside the ball, and has the advantages of non-deformation, high resilience, and high strength.
3. Inner glue:
The rubber layer on the inner wall of the ball is used to prevent gas leakage and maintain the pressure of the ball.
4. End flange:
The metal parts at both ends of the ball can be installed with inflation valve and safety valve
The following are the product specifications and detailed parameters:
|Pneumatic 50 fender size and performance requirements|
Nominal size diameter x length
Initial internal pressure
|Guaranteed energy absorption (GEA)||Reaction force at GEA deflection(R)||Hull pressure (Internal pressure) at GEA deflection (P)|
|Minimum value at deflection 60±5% kJ||Tolerance±10 % kN||
|500 x 1000||50||6||64||132|
|600 x 1000||50||8||74||126|
|700 x 1500||50||17||137||135|
|1000 x 1500||50||32||182||122|
|1000 x 2000||50||45||257||132|
|1350 x 2500||50||102||427||130|
|1500 x 3000||50||153||579||132|
|1700 x 3000||50||191||639||128|
|2000 x 3500||50||308||875||128|
|2500 x 4000||50||663||1381||137|
|3300 x 4500||50||1175||1884||130|
|3300 x 6500||50||1814||3015||146|
|3300 x 10600||50||3067||5257||158|
|4500 x 9000||50||4752||5747||146|
|4500 x 12000||50||6473||7984||154
|Pneumatic 80 fender size and performance requirements|
Nominal size diameter x length
Initial internal pressure
|Guaranteed energy absorption (GEA)||Reaction force at GEA deflection (R)||Hull pressure (Internal pressure) at GEA deflection (P)|
|Minimum value at deflection 60±5% kJ||Tolerance±10% kN||
|500 x 1000||80||8||85||174|
|600 x 1000||80||11||98||166|
|700 x 1500||80||24||180||177|
|1000 x 1500||80||45||239||160|
|1200 x 2000||80||88||390||166|
|1350 x 2500||80||142||561||170|
|1500 x 3000||80||214||761||174|
|1700 x 3000||80||267||840||168|
|2000 x 3500||80||430||1150||168|
|2500 x 4000||80||925||1815||180|
|2500 x 5500||80||1317||2653||195|
|3300 x 4500||80||1640||2476||171|
|3300 x 6500||80||2532||3961||191|
|3300 x 10600||80||4281||6907||208|
|4500 x 9000||80||6633||7551||192|
|4500 x 12000||80||9037||10490||202|
QINGDAO HENGER SHIPPING SUPPLIES CO.,LTD
Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.
Since its creation until today, Henger more than 10,000 fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations serving our valuable customers.These fenders play a critical role in the safe operation of ship berthing and mooring.
1. Technical advantages
Qingdao Henger Inflatable Rubber Fender introduces the new Japanese Yokohama company's inflatable fender production technology, and hires experienced engineers at home and abroad for training and guidance all year round. "Floating inflatable rubber fender" is produced according to international quality standards.
2. Production advantages
Qingdao Henger has accumulated 20 years of professional rubber production experience. It is an excellent company in the region, with strong technology and capital, and a stable quality marine fender (ball bearing) supplier.
3. Quality advantage
Qingdao Henger has raw material testing equipment, production equipment and finished product inspection equipment in the industry. It was the first to pass the ISO 9001: 2000 international quality management system certification, and the products are sold all over the world. The excellent quality has been verified by many buyers.
4. Price advantage
Qingdao Henger uses imported duty-free rubber as the main material, and the auxiliary materials are purchased from suppliers who have worked closely for many years, thus greatly reducing the cost of raw materials and logistics. The company is equipped with complete production equipment, so as to avoid the extra cost of going out for processing. At the same time, the perfect management system and rich production experience greatly reduce unnecessary man-hours and waste of materials in production, so as to achieve the same quality, high quality fenders, the same price, good fender quality, and high cost performance are Henger products The advantages.
5. Service advantages
Qingdao Henger customer service phone provides a full range of professional and intimate service. You can contact me at any time, I am always there.
Pneumatic Rubber Fender
Made of natural rubber, the warranty period can reach two years.
Internal structure drawings:
Service and transportation:
The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.
After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.

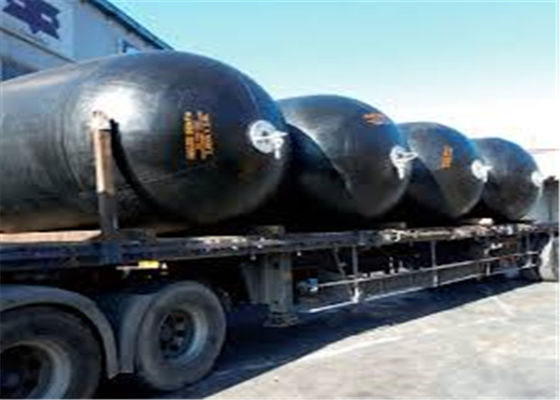

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
Thank you for reading. If you have any needs and interests, you can contact me.
