Payment & Shipping Terms:
|Product Name:||Pneumatic Rubber Fender/Marine Fender/Yokohama Fender||Brand:||Henger|
|Working Pressure:||50kPa/80kPa||Usage:||Dock Protection/ship Protection/ship To Ship Protection|
|Production Time:||5-8 Days||Color:||Black/blue/as Requirements|
|Using Life:||10years||Payment Method:||D/A, L/C, D/P, T/T, Western Union, MoneyGram|
50kPa 80kPa Boat Rubber Fender,
Boat Pneumatic Rubber Fender,
Protecting Vessel Boat Rubber Fender
50kPa and 80kPa Boat Rubber Fender Protecting Vessel
Pneumatic rubber fender structure:
1. Outer glue
The rubber layer covering the outside of the ball is used to protect the frame material and inner rubber of the ball from damage or abrasion by external forces. Main features: high strength, wear resistance, and tear resistance.
2. Nylon cord reinforcement layer
The reinforcement layer is composed of a layer of nylon cords, which maintains the air pressure inside the ball, and has the advantages of no deformation, high resilience, and high strength.
3. Inner glue
The rubber layer on the inner wall of the ball is used to prevent gas leakage and maintain the pressure of the ball.
4. End flange
The metal parts at both ends of the ball can be installed with inflation valve and safety valve
The following are the product specifications and detailed parameters:
|Pneumatic 50 fender size and performance requirements|
Nominal size diameter x length
Initial internal pressure
|Guaranteed energy absorption (GEA)||Reaction force at GEA deflection(R)||Hull pressure (Internal pressure) at GEA deflection (P)|
|Minimum value at deflection 60±5% kJ||Tolerance±10 % kN||
|500 x 1000||50||6||64||132|
|600 x 1000||50||8||74||126|
|700 x 1500||50||17||137||135|
|1000 x 1500||50||32||182||122|
|1000 x 2000||50||45||257||132|
|1350 x 2500||50||102||427||130|
|1500 x 3000||50||153||579||132|
|1700 x 3000||50||191||639||128|
|2000 x 3500||50||308||875||128|
|2500 x 4000||50||663||1381||137|
|3300 x 4500||50||1175||1884||130|
|3300 x 6500||50||1814||3015||146|
|3300 x 10600||50||3067||5257||158|
|4500 x 9000||50||4752||5747||146|
|4500 x 12000||50||6473||7984||154
Compared with the traditional elastic rubber fender:
1. The impact energy is large, and the impact force on the ship is small.
2. Simple installation.
3. Good elasticity and will not deform under compression.
4. Lightweight, practical and economical. Inflatable rubber fenders have been widely used in tanker, container ship, yacht, ocean platform, large dock, military port, large pier, etc.
QINGDAO HENGER SHIPPING SUPPLIES CO.,LTD

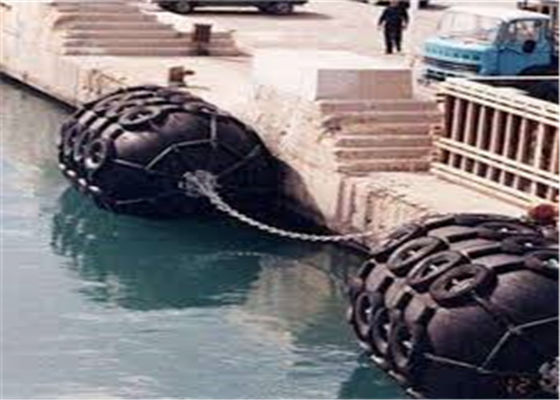

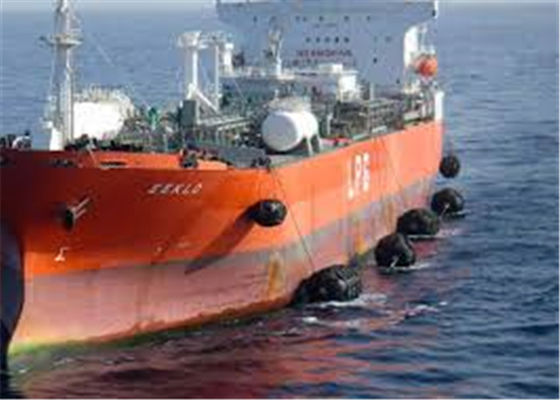

Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.
Since its creation until today, Henger more than 10,000 fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations serving our valuable customers.These fenders play a critical role in the safe operation of ship berthing and mooring.
1. Technical advantages
Qingdao Henger Inflatable Rubber Fender introduces the new Japanese Yokohama company's inflatable fender production technology, and hires experienced engineers at home and abroad for training and guidance all year round. "Floating inflatable rubber fender" is produced according to international quality standards.
2. Production advantages
Qingdao Henger has accumulated 20 years of professional rubber production experience. It is an excellent company in the region, with strong technology and capital, and a stable quality marine fender (ball bearing) supplier.
3. Quality advantage
Qingdao Henger has raw material testing equipment, production equipment and finished product inspection equipment in the industry. It was the first to pass the ISO 9001: 2000 international quality management system certification, and the products are sold all over the world. The excellent quality has been verified by many buyers.
4. Price advantage
Qingdao Henger uses imported duty-free rubber as the main material, and the auxiliary materials are purchased from suppliers who have worked closely for many years, thus greatly reducing the cost of raw materials and logistics. The company is equipped with complete production equipment, so as to avoid the extra cost of going out for processing. At the same time, the perfect management system and rich production experience greatly reduce unnecessary man-hours and waste of materials in production, so as to achieve the same quality, high quality fenders, the same price, good fender quality, and high cost performance are Henger products The advantages.
5. Service advantages
Qingdao Henger customer service phone provides a full range of professional and intimate service. You can contact me at any time, I am always there.
Meet the requirements of ISO17357:2002
2. More secure and reliable
3. Smaller parking force
4. Adapt to the tide
5 Low maintenance costs
6. Low reactivity and Hull pressure
7. The most cost-effective system
8. Advantages of reducing shear force
9. Simple installation and low cost
10. There are many optional accessories.

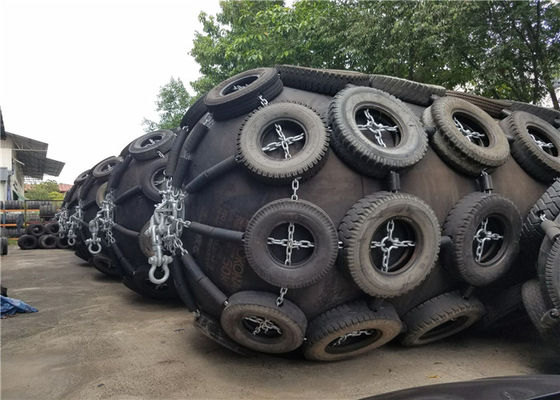

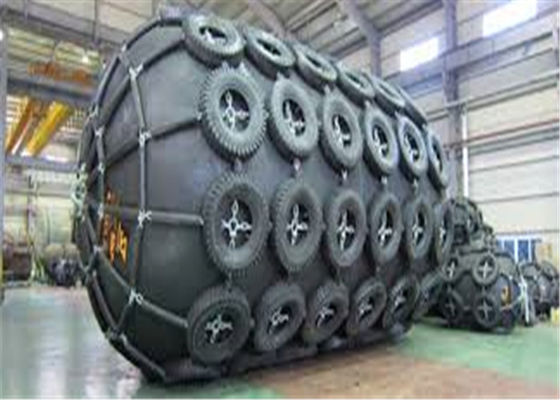

Pneumatic Rubber Fender
Made of natural rubber, the warranty period can reach two years.
Internal structure drawings:
Service and transportation:
The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.
After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.
Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
Thank you for reading. If you have any needs and interests, you can contact me.
