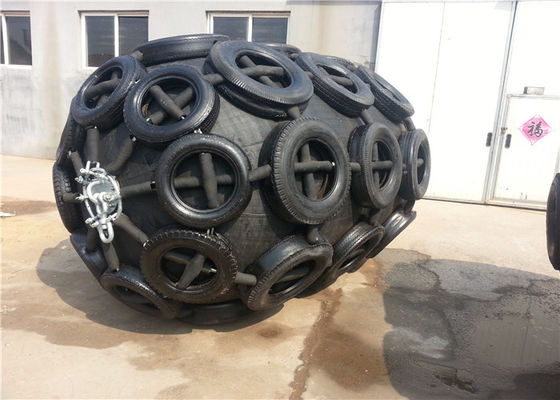

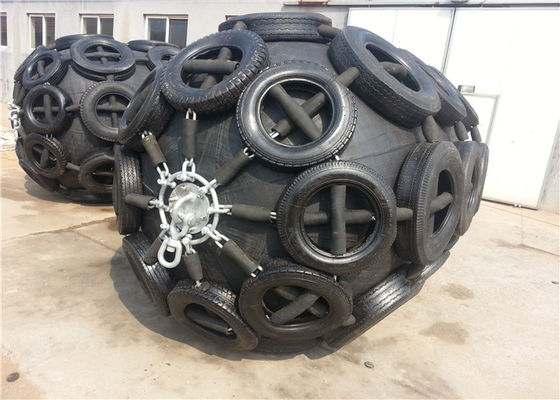

Rubber Marine Fenders 50Kpa Made In Henger With ISO 17357 Certificate
Pneumatic rubber fender structure:
1. Outer glue
The rubber layer covering the outside of the ball is used to protect the frame material and inner rubber of the ball from damage or abrasion by external forces. Main features: high strength, wear resistance, and tear resistance.
2. Nylon cord reinforcement layer
The reinforcement layer is composed of a layer of nylon cords, which maintains the air pressure inside the ball, and has the advantages of no deformation, high resilience, and high strength.
3. Inner glue
The rubber layer on the inner wall of the ball is used to prevent gas leakage and maintain the pressure of the ball.
4. End flange
The metal parts at both ends of the ball can be installed with inflation valve and safety valve
The following are the product specifications and detailed parameters:
| Pneumatic 50 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10 % kN |
Reference value kPa |
||
| 500 x 1000 | 50 | 6 | 64 | 132 |
| 600 x 1000 | 50 | 8 | 74 | 126 |
| 700 x 1500 | 50 | 17 | 137 | 135 |
| 1000 x 1500 | 50 | 32 | 182 | 122 |
| 1000 x 2000 | 50 | 45 | 257 | 132 |
| 1200 x2000 | 50 | 63 | 297 | 126 |
| 1350 x 2500 | 50 | 102 | 427 | 130 |
| 1500 x 3000 | 50 | 153 | 579 | 132 |
| 1700 x 3000 | 50 | 191 | 639 | 128 |
| 2000 x 3500 | 50 | 308 | 875 | 128 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 |
| 2500 x5500 | 50 | 943 | 2019 | 148 |
| 3300 x 4500 | 50 | 1175 | 1884 | 130 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 |
| 3300 x 10600 | 50 | 3067 | 5257 | 158 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 |
| 4500 x 12000 | 50 | 6473 | 7984 | 154 |
| Pneumatic 80 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10% kN |
Reference value kPa |
||
| 500 x 1000 | 80 | 8 | 85 | 174 |
| 600 x 1000 | 80 | 11 | 98 | 166 |
| 700 x 1500 | 80 | 24 | 180 | 177 |
| 1000 x 1500 | 80 | 45 | 239 | 160 |
| 1000 x2000 | 80 | 63 | 338 | 174 |
| 1200 x 2000 | 80 | 88 | 390 | 166 |
| 1350 x 2500 | 80 | 142 | 561 | 170 |
| 1500 x 3000 | 80 | 214 | 761 | 174 |
| 1700 x 3000 | 80 | 267 | 840 | 168 |
| 2000 x 3500 | 80 | 430 | 1150 | 168 |
| 2500 x 4000 | 80 | 925 | 1815 | 180 |
| 2500 x 5500 | 80 | 1317 | 2653 | 195 |
| 3300 x 4500 | 80 | 1640 | 2476 | 171 |
| 3300 x 6500 | 80 | 2532 | 3961 | 191 |
| 3300 x 10600 | 80 | 4281 | 6907 | 208 |
| 4500 x 9000 | 80 | 6633 | 7551 | 192 |
| 4500 x 12000 | 80 | 9037 | 10490 | 202 |
Compared with the traditional elastic rubber fender:
1. The impact energy is large, and the impact force on the ship is small.
2. Simple installation.
3. Good elasticity and will not deform under compression.
4. Lightweight, practical and economical. Inflatable rubber fenders have been widely used in tanker, container ship, yacht, ocean platform, large dock, military port, large pier, etc.
QINGDAO HENGER SHIPPING SUPPLIES CO.,LTD

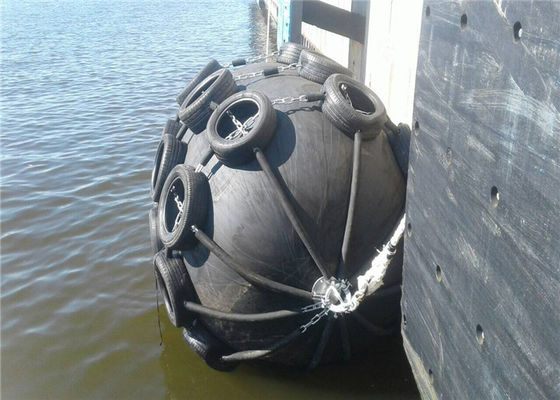

Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.
Since its creation until today, Henger more than 10,000 fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations serving our valuable customers.These fenders play a critical role in the safe operation of ship berthing and mooring.
1. Technical advantages
Qingdao Henger Inflatable Rubber Fender introduces the new Japanese Yokohama company's inflatable fender production technology, and hires experienced engineers at home and abroad for training and guidance all year round. "Floating inflatable rubber fender" is produced according to international quality standards.
2. Production advantages
Qingdao Henger has accumulated 20 years of professional rubber production experience. It is an excellent company in the region, with strong technology and capital, and a stable quality marine fender (ball bearing) supplier.
3. Quality advantage
Qingdao Henger has raw material testing equipment, production equipment and finished product inspection equipment in the industry. It was the first to pass the ISO 9001: 2000 international quality management system certification, and the products are sold all over the world. The excellent quality has been verified by many buyers.
4. Price advantage
Qingdao Henger uses imported duty-free rubber as the main material, and the auxiliary materials are purchased from suppliers who have worked closely for many years, thus greatly reducing the cost of raw materials and logistics. The company is equipped with complete production equipment, so as to avoid the extra cost of going out for processing. At the same time, the perfect management system and rich production experience greatly reduce unnecessary man-hours and waste of materials in production, so as to achieve the same quality, high quality fenders, the same price, good fender quality, and high cost performance are Henger products The advantages.
5. Service advantages
Qingdao Henger customer service phone provides a full range of professional and intimate service. You can contact me at any time, I am always there.
* Available in a variety of sizes , Diameters ranging from 500 mm to 4500 mm and length ranging from 500 mm to 12000 mm
* Many kinds of color ,Black , Milky white , Warship Level Gray , Orange Red , Blue
* Contructed with an inner rubber layer,reinforcing cord layers and outer rubber layer
* Comprehensively tested for material and hydrostatic pressure irregularities
* Correctly evaluated for angular and durability performance
* Clearly marked with all relevant identification
* Complete with up- to -date certification
FAQ
Q: What’s the material of your pneumatic fender products ?
A: the main raw materials are natural rubber, synthetic-tyre-cord fabric and customized hardwares, etc.
Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao airport, which is convenient in transportation logistics.
Q: Is OEM service available ?
A: yes
Q: What’s the delivery time and payment terms ?
A: Delivery time is based on product model and order quantity. normally it is around 7-15 working days.
The payment could paid by T/T, L/C, Western Union, Paypal, etc.
Thank you for reading. If you have any needs and interests, you can contact me.
| Miranda@hengergroup.com | |
| Mob: | +86-15853922960 |
| Wechat and Whatsapp | +86-15853922960 |
