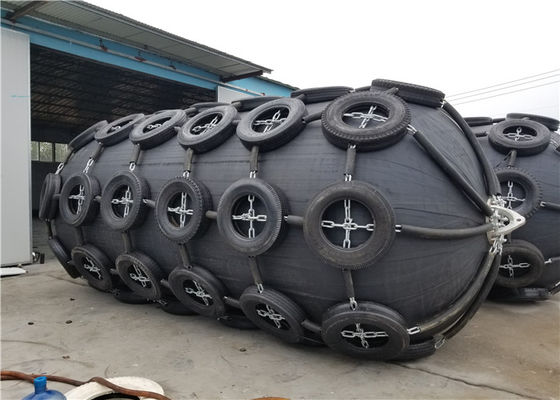

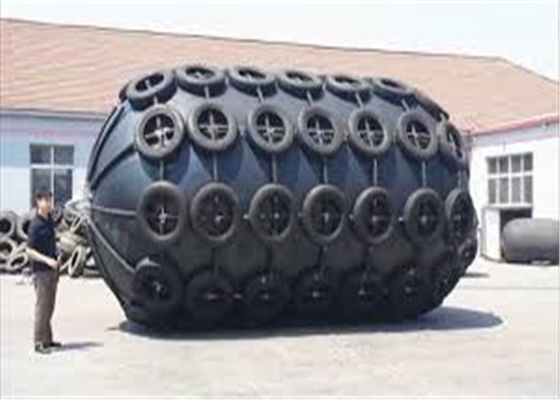

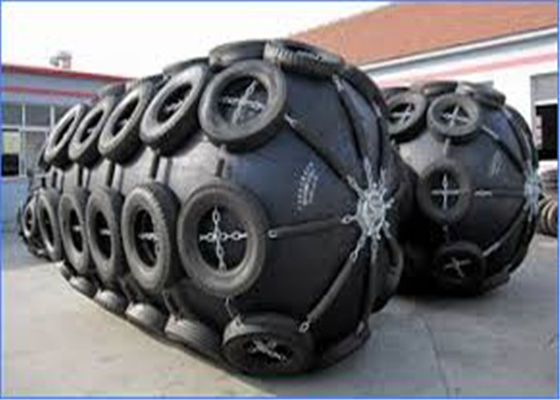

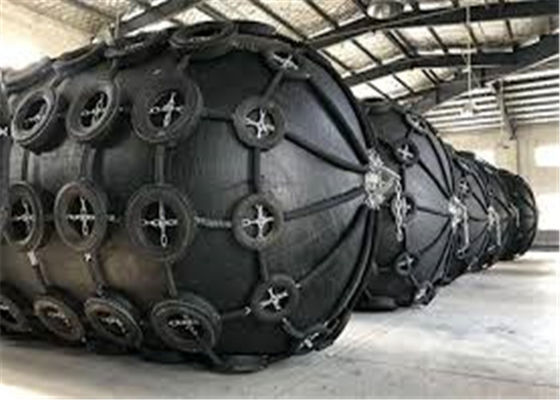

Marine Diameter 4.5m 80kPa Pneumatic Rubber Fender

Key Attributes
Brand Name: Henger
Place of Origin: China
Certification: Iso 9001、BV、ccs
Minimum Order Quantity: 1pcs
Supply Ability: 50pcs week
Delivery Time: 5day
Payment Terms: L/C, D/A, D/P, T/T
Standard Packaging: paller

Product Summary

Natural Rubber Floating Inflatable Marine Fender Rubber Boat Fender "Henger" management system has passed ISO9001:2008 certification, "Henger" guarantees the high standards and excellent performance of all products. "Henger" attaches great importance to the quality control of rubber fenders, and ...

Product Custom Attributes

Highlight

4.5m Pneumatic Rubber Fender

,

Marine Pneumatic Rubber Fender

,

80kPa Marine Rubber Fender

Product Name:
Pneumatic Rubber Fender/Marine Fender/Yokohama Fender
Brand:
Henger
Material:
Natural Rubber
Size:
0.5*1m~4.5*9m
Certification:
CCS/BV/ABS/ISO17357/ISO9001
Warranty:
24 Months
Working Pressure:
50kPa/80kPa
Usage:
Dock Protection/ship Protection/ship To Ship Protection
Production Time:
5-8 Days
Color:
Black/blue/as Requirements
Diameter:
0.5m~4.5m
Length:
1.0m~9m
Using Life:
10years
Payment Method:
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Product Description

Natural Rubber Floating Inflatable Marine Fender Rubber Boat Fender



"Henger" management system has passed ISO9001:2008 certification, "Henger" guarantees the high standards and excellent performance of all products. "Henger" attaches great importance to the quality control of rubber fenders, and each fender is tested according to ISO17357:2002 requirements.


In the eyes of "Henger" people, service quality is as important as product quality.


"Henger" people pursue star service and modern information technology management methods to ensure comprehensive, fast, active, and timely pre-sales, in-sales and after-sales services.


"Henger" enterprise focuses on the improvement of core competitiveness, and strives to build a modern production service platform and become a world-class ship service provider.


Dear users, thank you for choosing "Henger" products. "Henger" management system has passed ISO9001:2008 certification, "Henger" guarantees the high standards and excellent performance of all products. According to the relevant national regulations, under the conditions of transportation, storage, and use that meet the requirements, if the quality of Gute products occurs within one year, the product will be returned or replaced. Our company provides you with "three guarantees" service.



The following are the product specifications and detailed parameters:





Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection(R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10 % kN

Reference value

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154






Pneumatic 80 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection (R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10% kN

Reference value

kPa

500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000 x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202



Marine Diameter 4.5m 80kPa Pneumatic Rubber Fender 0



"Henger" pneumatic rubber fender has the following advantages:


1. Meet the requirements of ISO17357:2002


2. More secure and reliable


3. Smaller parking force


4. Adapt to the tide


5 Low maintenance costs


6. Low reactivity and Hull pressure


7. The most cost-effective system


8. Advantages of reducing shear force


9. Simple installation and low cost


10. There are many optional accessories.



Marine Diameter 4.5m 80kPa Pneumatic Rubber Fender 1



QINGDAO HENGER SHIPPING SUPPLIES CO.,LTD



Qingdao Henier Marine Supplies Co., Ltd. is located in Qingdao Jimodianji Industrial Park, with a construction area of 4800 square meters. The company has high-quality professional and technical personnel, and complete production and testing equipment. The company has passed ISO9001: 2000 international quality management system certification, and its products have been certified by China Classification Society (CCS) and Det Norske Veritas (DNV) by Lloyd's (LR). And exported to the United States, France, Italy, Britain, Singapore, Indonesia, South Korea, and many other countries and regions.



With many years of technical strength and successful experience, the company has developed a high-strength liner-wrapped airbag on the basis of traditional products. It is widely used in ship launching and launching, stranding rescue and large object handling. The rubber inflatable fender produced by our factory has the characteristics of long-lasting wear resistance, high strength, no deformation, simple installation, etc., and is widely used in offshore platforms, large docks, port terminals, etc.



Marine Diameter 4.5m 80kPa Pneumatic Rubber Fender 2





Pneumatic Rubber Fender



Made of natural rubber, the warranty period can reach two years.





Internal structure drawings:



Marine Diameter 4.5m 80kPa Pneumatic Rubber Fender 3






Service and transportation:


The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.


After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.


Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
