| MOQ: | 1PCS |
| Standard Packaging: | Node packing / Pallet |
| Delivery Period: | 5-7days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 100Pieces Per Month |
| Pneumatic 80 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10% kN |
Reference value kPa |
||
| 500 x 1000 | 80 | 8 | 85 | 174 |
| 600 x 1000 | 80 | 11 | 98 | 166 |
| 700 x 1500 | 80 | 24 | 180 | 177 |
| 1000 x 1500 | 80 | 45 | 239 | 160 |
| 1000 x2000 | 80 | 63 | 338 | 174 |
| 1200 x 2000 | 80 | 88 | 390 | 166 |
| 1350 x 2500 | 80 | 142 | 561 | 170 |
| 1500 x 3000 | 80 | 214 | 761 | 174 |
| 1700 x 3000 | 80 | 267 | 840 | 168 |
| 2000 x 3500 | 80 | 430 | 1150 | 168 |
| 2500 x 4000 | 80 | 925 | 1815 | 180 |
| 2500 x 5500 | 80 | 1317 | 2653 | 195 |
| 3300 x 4500 | 80 | 1640 | 2476 | 171 |
| 3300 x 6500 | 80 | 2532 | 3961 | 191 |
| 3300 x 10600 | 80 | 4281 | 6907 | 208 |
| 4500 x 9000 | 80 | 6633 | 7551 | 192 |
| 4500 x 12000 | 80 | 9037 | 10490 | 202 |
♦ Definition:
The pneumatic rubber fender uses compressed air as the buffer medium, which makes the ship have better anti-collision effect when it is near the ship or dock.
♦ Characteristic:
● External wear resistance
● Bearing pressure
● Ageing resistance
● Long service life
● Good air tightness
● Easy storage
● Non deformation
● Simple installation
♦ Functions & Applications
● Installed on the wharf and dock for berthing
● Installed on the shipboard for berthing
● Float chamber
● For moving the cargo
● Pipe seal
"Henger" management system has passed ISO9001:2008 certification, "Henger" guarantees the high standards and excellent performance of all products. "Henger" attaches great importance to the quality control of rubber fenders, and each fender is tested according to ISO17357:2002 requirements.

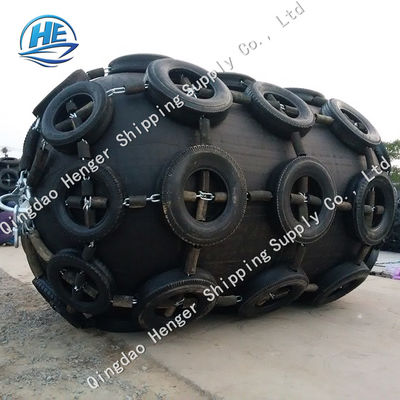

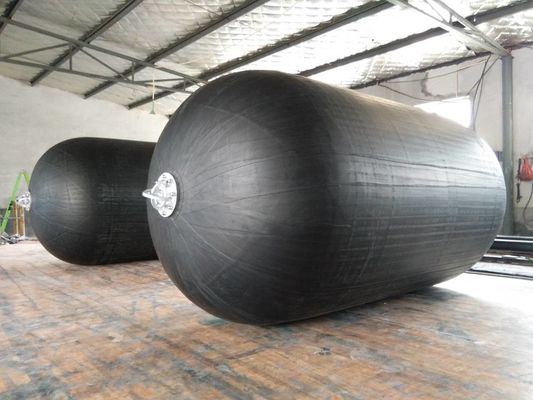

Pneumatic Rubber Fender is constructed of synthetic-cord-reinforced rubber sheets with compressed air inside to keep floating over the water surface and work as a shock absorber between two ships or between ships and berthing structure when they come alongside each other on the water.
Pneumatic Rubber Fender is a leading anti-collision device for marine application in the world today. Pneumatic Fender has become an idea ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbors and wharves.
Hener Shipping Company mainly produces marine airbags, inflatable fenders (marine ball), marine navigation marks, mooring buoys, bridge anti-collision piers, rotating guardrails and inflatable mandrels for construction projects. They are constantly updated and improved every year. Owning a professional production line developed by ourselves, the products are exported to domestic and foreign markets, advanced mechanical equipment and technical processes, produce high-quality airbags with abrasion resistance, aging resistance, good air tightness, high strength, long service life and high bearing pressure The airbag has now undertaken safe launching and launching projects for giant ships with a load of 60,000 tons and a dead weight of more than 10,000 tons. At the same time, it overcomes the disadvantages of being restricted by fixed launching slides when repairing and building ships. The advantages of high comprehensive economic benefits. The airbag is widely used in the upper row and launching of various ships, as well as salvaging sunken ships and moving heavy objects. The launch of high-strength dual-purpose airbag products has solved the common problems of launching and launching water in various types of flat, sharp-bottomed, medium and small ships at home and abroad.
