Dia 4.0m Customized Heavy Lifting 8 Layers Marine Rubber Airbag

Dia 4.0m Customized Heavy Lifting 8 Layers Marine Rubber Airbag
Dia 4.0m Customized Heavy Lifting 8 Layers Marine Rubber Airbag
video play

Large Image :  Dia 4.0m Customized Heavy Lifting 8 Layers Marine Rubber Airbag

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: BV / CCS / ISO9001
Model Number: D1.8m*L20m
Payment & Shipping Terms:
Minimum Order Quantity: 1PCs
Packaging Details: Pallet Package
Delivery Time: 7
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 300 Pieces per months
Detailed Product Description
Part: Marine Airbag Application: Heavy Lifting
Material: Natural Rubber Color: Black
Size: Customized Size Product Name: Inflatable Marine Rubber Airbag For Ship Launching Made In China
Name: Pneumatic Marine Rubber Airbags Diameter: 0.8 /1.2 / 1.5 / 1.8 / 2.0 / 3.0 / 4.0m
Usage: Ship Launching Packing: Pallet
Lifespan: 8~10 Years Certification: CCS,ABS,BV,LR,CCS BV GL
Layer: 5/ 6/ 7 / 8 / 9 / 10 Layers Working Pressure: 0.05MPa-0.17MPa
High Light:

8 Layers Marine Rubber Airbag

,

Lifting Marine Rubber Airbag

Dia 4.0m Customized Heavy Lifting 8 Layers Marine Rubber Airbag



► Marine Rubber Airbag introduction



Marine Rubber Airbag is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, installation of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are widely used in the world. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.





Whole Intertwine Technology



"Henger" Airbags overall frame structure uses cross whole intertwine technology, the overall structure is more reasonable, texture clear, no juncture, high loads, more safety than lap technology (roller), more than 20% bearing capacity.







Framework



Henger" airbag structure are consist of the outer rubber + synthetic cord reinforced rubber layers.



Its shape characteristics: central body cylindrical + tapered on both ends.
Cord layers: 4,5,6,7,8,9,10,11,12 layers.
Dia 4.0m Customized Heavy Lifting 8 Layers Marine Rubber Airbag 0



Marine Rubber Airbag Parameter



Diameter(m) Effective Length(m) Layer Pressure(MPa)
1.0 10 5~6 0.07~0.10
1.0 12 5~6 0.07~0.10
1.0 15 5~6 0.07~0.10
1.2 10 5~6 0.08~0.12
1.2 12 5~6 0.08~0.12
1.2 15 5~6 0.08~0.12
1.5 12 5~8 0.08~0.16
1.5 15 5~8 0.08~0.16
1.5 18 5~8 0.08~0.16
1.5 20 4~8 0.08~0.16
1.5 24 5~8 0.08~0.16
1.8 12 5~8 0.08~0.15
1.8 15 5~8 0.08~0.15
1.8 18 5~8 0.08~0.15
1.8 20 5~8 0.08~0.15
1.8 24 5~8 0.08~0.15
2.0 18 6~10 0.08~0.18
2.0 20 6~10 0.08~0.18
2.0 24 6~10 0.08~0.18
2.5 18 7~10 0.07~0.13
2.5 20 7~10 0.07~0.13
2.5 24 7~10 0.07~0.13



Marine Rubber Airbag Application

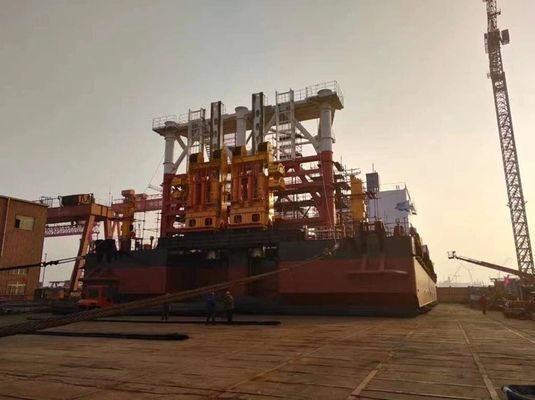

  • Ship Launching & Upgrading

With more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.

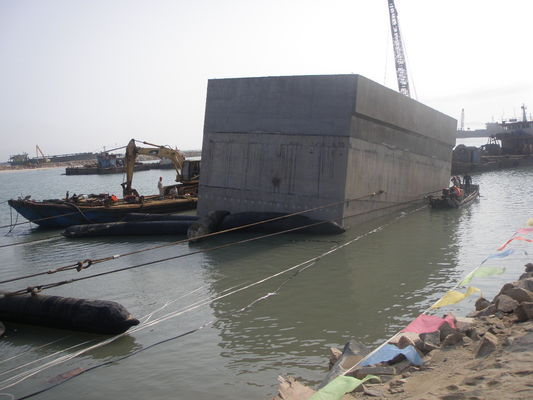

  • Weight Lifting & Moving

Marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects

  • Buoyancy Aid & Salvage

Because marine rubber airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.



Dia 4.0m Customized Heavy Lifting 8 Layers Marine Rubber Airbag 1Dia 4.0m Customized Heavy Lifting 8 Layers Marine Rubber Airbag 2Dia 4.0m Customized Heavy Lifting 8 Layers Marine Rubber Airbag 3
