Product Details:
Payment & Shipping Terms:
|

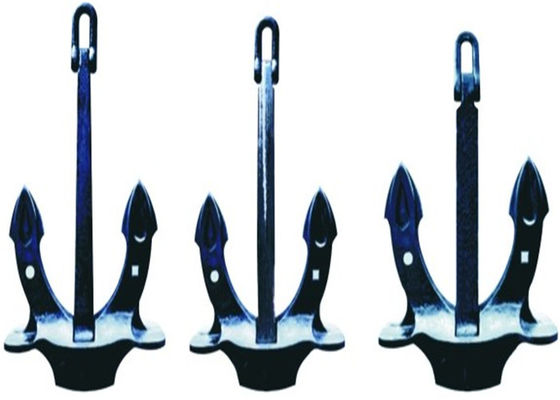

Design: | Hall Anchor, Type A B CHall Anchor | Type: | A |
---|---|---|---|

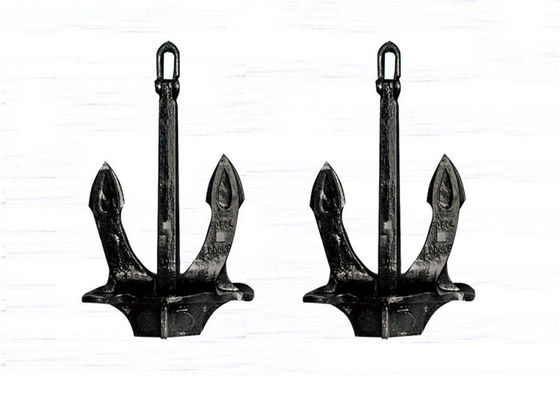

Certification:: | ABS, CCS, KR, NK, DNV-GL, LR, BV | Product Name: | CCS Approved Hall Anchor For Vessel |
Surface: | Black Bitumen Paint, Anti-rusting Paint Or Customized | Application: | For All Kinds Of Ships And Marine Buildings |
Nonimal Weight: | 40KGS-46000KGS | Technology: | Casting |
Packing: | In Nude | Keywords: | Stockless Anchor |
High Light: | fishing kayak anchor,hall type anchor |
Anchor Weight
|
Size (mm) | |||||||
kg | H | h | h1 | L | L1 | B1 | ||
A型 | B型 | C型 | ||||||
40 | 557 | 557 | 430 | 303 | 67 | 430 | 303 | 198 |
60 | 637 | 637 | 492 | 347 | 76 | 492 | 347 | 227 |
100 | 760 | 760 | 590 | 410 | 90 | 584 | 410 | 270 |
125 | 814 | 814 | 629 | 443 | 97 | 629 | 443 | 290 |
150 | 866 | 866 | 665 | 470 | 103 | 670 | 470 | 308 |
180 | 919 | 919 | 710 | 500 | 110 | 710 | 500 | 327 |
240 | 1019 | 1019 | 788 | 552 | 121 | 784 | 552 | 361 |
300 | 1095 | 1095 | 850 | 595 | 130 | 844 | 595 | 388 |
360 | 1160 | 1160 | 898 | 630 | 138 | 898 | 630 | 412 |
420 | 1222 | 1222 | 946 | 660 | 145 | 946 | 660 | 434 |
480 | 1282 | 1282 | 986 | 690 | 152 | 988 | 690 | 454 |
570 | 1356 | 1356 | 1042 | 732 | 161 | 1042 | 732 | 481 |
660 | 1422 | 1422 | 1093 | 769 | 169 | 1096 | 769 | 506 |
780 | 1506 | 1506 | 1159 | 813 | 178 | 1160 | 813 | 535 |
900 | 1580 | 1580 | 1215 | 855 | 188 | 1220 | 855 | 560 |
1020 | 1645 | 1645 | 1268 | 891 | 195 | 1268 | 891 | 584 |
1140 | 1705 | 1705 | 1316 | 926 | 203 | 1319 | 926 | 605 |
1290 | 1778 | 1778 | 1378 | 965 | 211 | 1374 | 965 | 630 |
1440 | 1844 | 1844 | 1448 | 1001 | 219 | 1430 | 1001 | 655 |
1590 | 1906 | 1906 | 1511 | 1035 | 226 | 1475 | 1035 | 677 |
1740 | 1966 | 1966 | 1571 | 1068 | 234 | 1517 | 1068 | 698 |
1920 | 2031 | 2031 | 1602 | 1104 | 241 | 1568 | 1104 | 722 |
2100 | 2093 | 2093 | 1651 | 1136 | 249 | 1614 | 1136 | 743 |
2280 | 2150 | 2150 | 1716 | 1165 | 255 | 1657 | 1165 | 763 |
2460 | 2207 | 2207 | 1785 | 1194 | 262 | 1700 | 1194 | 784 |
2640 | 2259 | 2259 | 1843 | 1221 | 268 | 1741 | 1221 | 801 |
2850 | 2318 | 2318 | 1890 | 1253 | 275 | 1787 | 1253 | 822 |
3060 | 2374 | 2374 | 1935 | 1283 | 282 | 1832 | 1283 | 841 |
3300 | 2432 | 2432 | 1985 | 1317 | 288 | 1880 | 1317 | 862 |
3540 | 2490 | 2490 | 2032 | 1349 | 295 | 1926 | 1349 | 883 |
3780 | 2547 | 2547 | 2077 | 1376 | 302 | 1965 | 1376 | 902 |
4050 | 2610 | 2610 | 2125 | 1406 | 309 | 2008 | 1406 | 924 |
4320 | 2661 | 2661 | 2171 | 1435 | 316 | 2051 | 1435 | 743 |
4590 | 2712 | 2712 | 2216 | 1465 | 322 | 2093 | 1465 | 962 |
4890 | 2769 | 2769 | 2263 | 1498 | 329 | 2135 | 1498 | 984 |
5250 | 2836 | 2836 | 2317 | 1535 | 337 | 2185 | 1535 | 1008 |
5610 | 2899 | 2899 | 2369 | 1569 | 345 | 2234 | 1569 | 1031 |
6000 | 2965 | 2965 | 2422 | 1605 | 352 | 2284 | 1605 | 1054 |
6450 | 3037 | - | 2482 | 1644 | 361 | 2340 | 1644 | 1080 |
6900 | 3100 | - | 2538 | 1681 | 369 | 2393 | 1681 | 1105 |
7350 | 3173 | - | 2592 | 1717 | 377 | 2444 | 1717 | 1129 |
7800 | 3235 | - | 2644 | 1752 | 385 | 2493 | 1752 | 1152 |
8300 | 3363 | - | 2699 | 1788 | 393 | 2545 | 1788 | 1176 |
8700 | 3355 | - | 2742 | 1816 | 399 | 2585 | 1816 | 1195 |
9300 | 3430 | - | 2804 | 1857 | 408 | 2643 | 1857 | 1222 |
9900 | 3502 | - | 2863 | 1896 | 417 | 2699 | 1896 | 1248 |
10500 | 3571 | - | 2920 | 1934 | 425 | 2752 | 1934 | 1273 |
11100 | 3638 | - | 2975 | 1970 | 433 | 2803 | 1970 | 1297 |
11700 | 3702 | - | 3028 | 2005 | 441 | 2853 | 2005 | 1320 |
12300 | 3764 | - | 3079 | 2039 | 448 | 2901 | 2039 | 1342 |
12900 | 3824 | - | 3128 | 2072 | 455 | 2947 | 2072 | 1363 |
13500 | 3882 | - | 3176 | 2104 | 462 | 2992 | 2104 | 1384 |
14100 | 3939 | - | 3222 | 2135 | 469 | 3036 | 2135 | 1404 |
14700 | 3994 | - | 3267 | 2165 | 476 | 3078 | 2165 | 1424 |
15400 | 4056 | - | 3318 | 2199 | 483 | 3126 | 2199 | 1446 |
16100 | 4117 | - | 3368 | 2232 | 490 | 3173 | 2232 | 1468 |
16900 | 4184 | - | 3423 | 2268 | 498 | 3225 | 2268 | 1492 |
17800 | 4252 | - | 3479 | 2308 | 506 | 3281 | 2308 | 1518 |
18800 | 4330 | - | 3543 | 2350 | 516 | 3341 | 2350 | 1546 |
20000 | 4420 | - | 3617 | 2399 | 526 | 3411 | 2399 | 1578 |
21500 | 4528 | - | 3705 | 2458 | 539 | 3494 | 2458 | 1617 |
23000 | 4631 | - | 3789 | 2514 | 551 | 3573 | 2514 | 1654 |
24500 | 4730 | - | 3870 | 2568 | 563 | 3649 | 2568 | 1689 |
26000 | 4825 | - | 3947 | 2619 | 574 | 3722 | 2619 | 1723 |
27500 | 4916 | - | 4021 | 2668 | 585 | 3792 | 2668 | 1756 |
29000 | 5004 | - | 4093 | 2716 | 595 | 3860 | 2716 | 1787 |
31000 | 5126 | - | 4188 | 2774 | 609 | 3949 | 2774 | 1822 |
33000 | 5234 | - | 4276 | 2833 | 622 | 4032 | 2833 | 1860 |
35500 | 5363 | - | 4381 | 2903 | 637 | 4132 | 2903 | 1906 |
38500 | 5510 | - | 4502 | 2982 | 655 | 4245 | 2982 | 1958 |
42000 | 5672 | - | 4634 | 3070 | 674 | 4370 | 3070 | 2015 |
46000 | 5847 | - | 4777 | 3165 | 695 | 4505 | 3165 | 2078 |
►Our services:
This is important equipment for marine, Qingdao Henger could disign and offer you best products with good servces: we take care of ur order!
1. Punctual delivery time:
2. After sales service:
3. Professional sales:
Henger have many global clients, we offer professional service to them. With the aim of "to establish a close strategic partnership and develop together with customers", we will work whole-heartedly to improve our products and service. We will also pledge to work jointly with business partners to elevate our cooperation to a higher level and share success together with our customers. We are looking forward to establishing relationships with you in the near future.
Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc. With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.
