Payment & Shipping Terms:
|Product Name:||Pneumatic Rubber Fender/Marine Fender/Yokohama Fender||Material:||Natural Rubber|
|Specification:||Dia 0.5m-4.5m, L 0.7m-9m/Customized||Certificate:||CCS / BV / LR / ISO17357/DNV/SGS|
|Shelf Life:||24 Months||Application:||Dock,Ship,Ship To Ship|
|Working Pressure:||50kpa/80kpa||Service Life:||10 Years|
|Production Time:||5-10 Days||Payment Method:||L/C, D/A, D/P, T/T, Western Union, Moneygram|
|Accessories:||Tyre Sheath/Swivel/Shackle/Chain||Colour:||Black/Blue/As Requirements|
navy boat fenders,
large yacht fenders
Large Inflatable Marine Rubber Fender Protect Boat Durable Energy Saving
1. Product Description
Pneumatic Marine Fender also known as Yokohama fender or Marine fender, it is often installed on the terminal or ship, which aims to absorb or reduce the collision energy between ship and ship or ship and dock. This kind of product can protect the ship or dock from the damage of collision.
Generally speaking, according to the structure of marine fenders, there are two common categories: Pneumatic Rubber Fender and Foam Filled Rubber Fender. Actually, the Pneumatic Rubber Fender(Yokohama Rubber Fender) is adopt the way of compressed air power to consume the collision energy, and its application is more extensive.
Type I: pneumatic rubber fender with Chain & tyre net protective jacket
Type II: Sling type with rubber plate, rubber tube & ropes protective jacket
Type III: Ribbed type rubber fender
Type IV: Rope net type protective jacket rubber fender

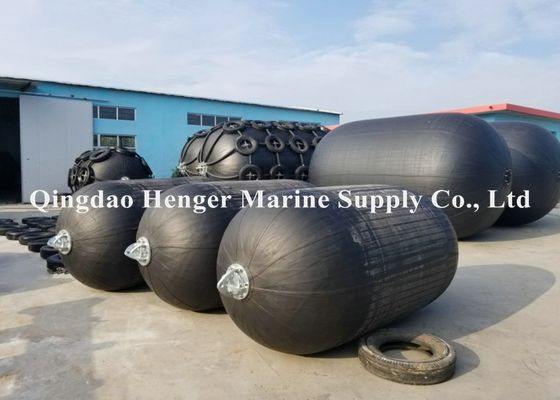

Type V: Standard type without any protective jackets
Type VI: hydro pneumatic rubber fender
|Pneumatic 50 fender size and performance requirements|
Nominal size diameter x length
Initial internal pressure
|Guaranteed energy absorption (GEA)||Reaction force at GEA deflection(R)||Hull pressure (Internal pressure) at GEA deflection (P)|
|Minimum value at deflection 60±5% kJ||Tolerance±10 % kN||
|500 x 1000||50||6||64||132|
|600 x 1000||50||8||74||126|
|700 x 1500||50||17||137||135|
|1000 x 1500||50||32||182||122|
|1000 x 2000||50||45||257||132|
|1350 x 2500||50||102||427||130|
|1500 x 3000||50||153||579||132|
|1700 x 3000||50||191||639||128|
|2000 x 3500||50||308||875||128|
|2500 x 4000||50||663||1381||137|
|3300 x 4500||50||1175||1884||130|
|3300 x 6500||50||1814||3015||146|
|3300 x 10600||50||3067||5257||158|
|4500 x 9000||50||4752||5747||146|
|4500 x 12000||50||6473||7984||154|
|Pneumatic 80 fender size and performance requirements|
Nominal size diameter x length
Initial internal pressure
|Guaranteed energy absorption (GEA)||Reaction force at GEA deflection (R)||Hull pressure (Internal pressure) at GEA deflection (P)|
|Minimum value at deflection 60±5% kJ||Tolerance±10% kN||
|500 x 1000||80||8||85||174|
|600 x 1000||80||11||98||166|
|700 x 1500||80||24||180||177|
|1000 x 1500||80||45||239||160|
|1200 x 2000||80||88||390||166|
|1350 x 2500||80||142||561||170|
|1500 x 3000||80||214||761||174|
|1700 x 3000||80||267||840||168|
|2000 x 3500||80||430||1150||168|
|2500 x 4000||80||925||1815||180|
|2500 x 5500||80||1317||2653||195|
|3300 x 4500||80||1640||2476||171|
|3300 x 6500||80||2532||3961||191|
|3300 x 10600||80||4281||6907||208|
|4500 x 9000||80||6633||7551||192|
|4500 x 12000||80||9037||10490||202|
Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.
1 Outer rubber:
The outer rubber layers that covers the outside of fender protects the cord layers and the inner rubber from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage. Standard color is black, but other colors are available on request.
2 Inner rubber:
The liner of a rubber membrane seals the pressurized air inside the fenders.
3 Synthetic tire cord layers for reinforcement:
The reinforcement layers, which are made of synthetic tire cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly providing strong efficient reinforcement.
4 Beading ring:
A steel ring is placed at one end (or both ends) of the fender and holds the end of cord layers.
A steel flange is mounted on the fender, to which an air valve or safety valve can be adapted.
6 Safety valve:
Fenders of diameter 2500mm and larger shall be equipped with safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally. Fender which are smaller than 2500mm in diameter, can be equipped with a safety valve if required.
7 Metal accessories:
All the relevant metal accessories of pneumatic fenders, include shackles, towing rings, swivels, chain net, are made of stainless steel, which are resistant for sea water corrosion.
1. When the Pneumatic rubber fender is not used for a long time, it should be washed and dried, filled with appropriate compressed air, placed in a dry, cool, ventilated place.Inventory temperature is maintained at -15 ℃ -40 ℃ .
2 .The place where the fender is stored should be kept away from the heat source.
3 .Fenders shall not be in contact with acids, alkalis, greases and organic solvents.
4 .When the fenders are not in use, they must not be stacked and should not be stacked on the ba. In order to better extend the service life of pneumatic rubber fenders, it is recommended that you store them in strict accordance with the above recommendations.
Lies in Qingdao, a beautiful coastal city, Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as pneumatic rubber fenders, foam filled fenders, marine rubber airbags, navigation mark, marine buoys, highway safety roller barrier. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
