Product Details:
Payment & Shipping Terms:
|
| Product Name: | EVA Foam Fender/Foam Solid Filled Fender/Solid Fender | Brand: | Henger |
|---|---|---|---|
| Material: | High Density Foam/Polyurea Coating | Specification: | DIA 0.5m-4.5m, L 0.7m-9m/Customized |
| Certificate: | CCS / BV / LR / ISO17357/DNV/SGS | Shelf Life: | 24 Months |
| Service Life: | 10-15 Years | Application: | Dock,Ship,Ship To Ship |
| Production Time: | 5-10 Days | Accessories: | Tyre Sheath/Swivel/Shackle/Chain |
| Color: | Orange/Gray/Black/Customized | ||
| High Light: | foam boat fenders,inflatable boat fenders |
||

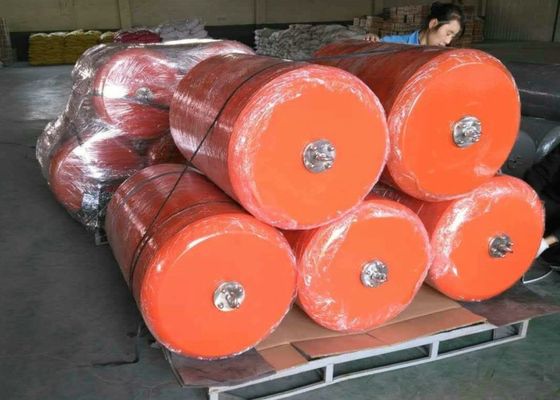

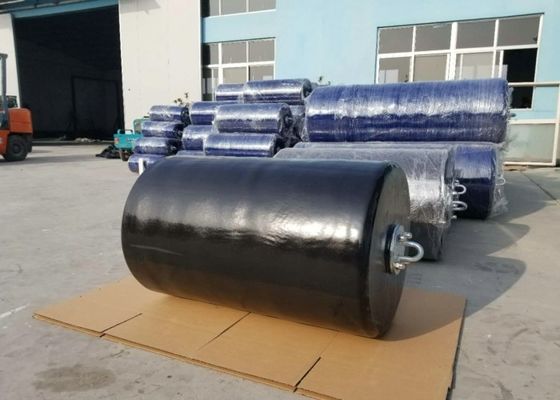

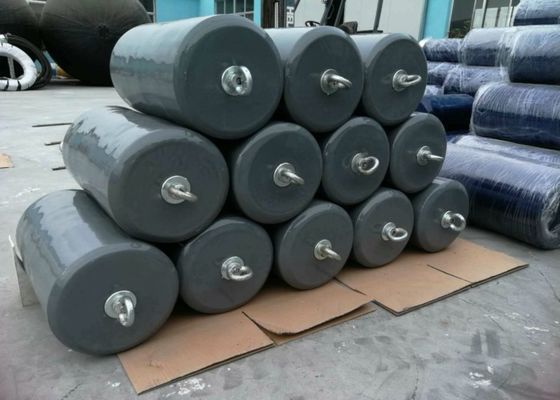

Marine Eva Boat Foam Filled Fenders Eva Solid Donut Fender
Products introduction
It is a new kind synthetic polymer whose performance has both advantage of plastic and rubber.The high strength of plastic and good elastticity of rubber.
1. High wear resistance which is 3-5times of nature rubber.
2. Excellent oil resistance which is 4 times of rubber.
3. High mechanical strength and tear strength.
4. Excellent tolerance of acid,alkali,low temperature and organic solvent.
5. High metal-bonding performance.
6. The range of hardness is extensive and the elastic range can be adjusted from Shore A10 to A100.
Type & Structure
Type I fender with tyre-chain protective sleeve
Type II Sling Type
Inside of Foam Filled Solid Fender is filled with environmental protection material-EVA with coating protective layer of polyurea material on outer surface. Polyurea is an new material of adjustable high-elasticity modulus. There are galvanized flange and swivel on the fender two ends. Like pneumatic rubber fender, tyre-chain net protective jacket is also optional spare part to foam filled fender for better anti-collision performance.
Technical Parameter
| Model |
D (mm) |
L (mm) |
compressibility 60% |
Weight (kg) |
|
|
counter-force (KN) |
Energy Absorption (KJ) |
||||
| Ø 500×1000L | 500 | 1000 | 71 | 8 | 34 |
| Ø 600×1000L | 600 | 1000 | 86 | 12 | 45 |
| Ø 700×1500L | 700 | 1500 | 161 | 27 | 101 |
| Ø 1000×1500L | 1000 | 1500 | 205 | 49 | 206 |
| Ø 1000×2000L | 1000 | 2000 | 274 | 64 | 275 |
| Ø 1200×2000L | 1200 | 2000 | 337 | 93 | 405 |
| Ø 1200×2400L | 1200 | 2400 | 390 | 110 | 475 |
| Ø 1350×2500L | 1350 | 2500 | 463 | 145 | 626 |
| Ø 1500×3000L | 1500 | 3000 | 624 | 216 | 927 |
| Ø 1700×3000L | 1700 | 3000 | 696 | 273 | 1191 |
| Ø 2000×3500L | 2000 | 3500 | 990 | 456 | 1923 |
| Ø 2000×4000L | 2000 | 4000 | 1110 | 505 | 2298 |
| Ø 2200×4500L | 2200 | 4500 | 1396 | 679 | 2992 |
| Ø 2500×4000L | 2500 | 4000 | 1386 | 781 | 3434 |
| Ø 2500×5000L | 2500 | 5000 | 1750 | 985 | 4272 |
| Ø 3000×5000L | 3000 | 5000 | 2050 | 1410 | 6411 |
| Ø 3000×6000L | 3000 | 6000 | 2460 | 1695 | 7293 |
| Ø 3300×6500L | 3300 | 6500 | 2950 | 2245 | 8335 |
| Ø 4500×9000L | 4500 | 9000 | 19650 | 7860 |
21460 |
Application
1. Harbors, ships
2. Gravity wharf and dolphin type quay, especially for wharves with bigger tidal range.
3. Protective fender for bridge pier.
4. Protecting fender for special military fleet or submarine.
5. Applied together with other forms of fender like pneumatic rubber fender, hydro pneumatic fender, etc.
