Product Details:
Payment & Shipping Terms:
|
| Product Name: | EVA Foam Fender/Foam Solid Filled Fender/Solid Fender | Material: | High Density Foam/Polyurea Coating |
|---|---|---|---|
| Specification: | DIA 0.5m-4.5m, L 0.7m-9m/Customized | Certificate: | CCS / BV / LR / ISO17357/DNV/SGS |
| Shelf Life: | 24 Months | Service Life: | 10-15 Years |
| Application: | Dock,Ship,Ship To Ship | Production Time: | 5-10 Days |
| Accessories: | Tyre Sheath/Swivel/Shackle/Chain | Color: | Orange/Gray/Black/Customized |
| High Light: | foam boat fenders,inflatable boat fenders |
||

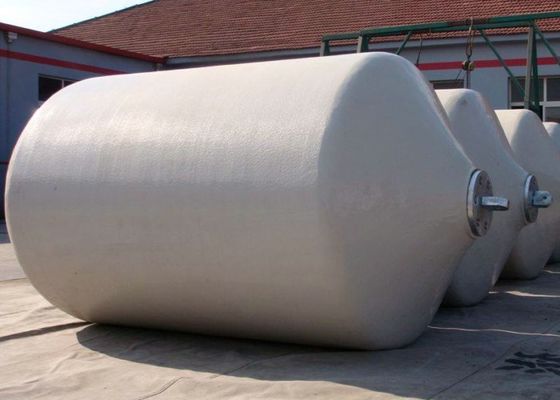

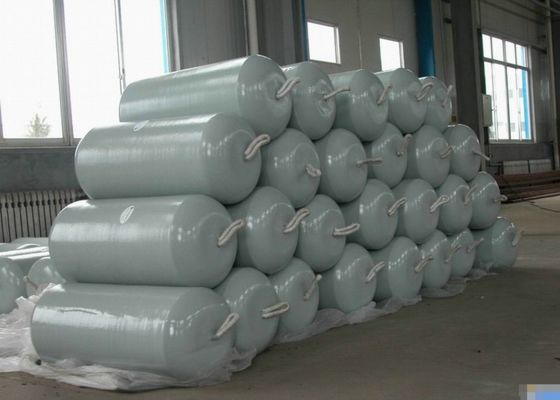

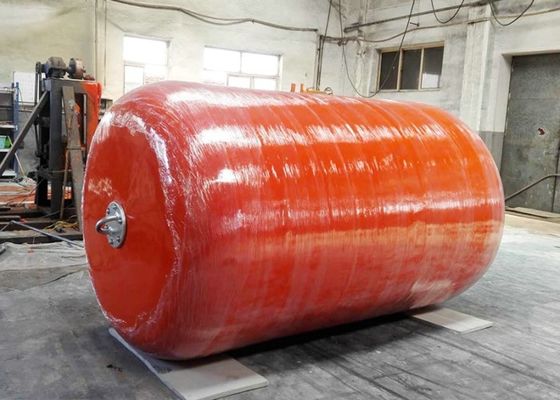

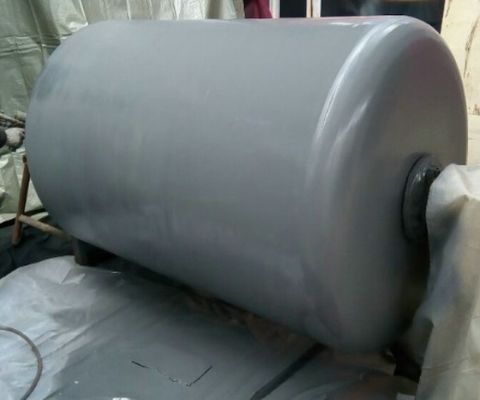

EVA Fender Floating Solid Fender With Polyurea Coating For Ship
Berthing
Product Technical Parameter
| Model |
D (mm) |
L (mm) |
compressibility 60% |
Weight (kg) |
|
|
counter-force (KN) |
Energy Absorption (KJ) |
||||
| Ø 500×1000L | 500 | 1000 | 71 | 8 | 34 |
| Ø 600×1000L | 600 | 1000 | 86 | 12 | 45 |
| Ø 700×1500L | 700 | 1500 | 161 | 27 | 101 |
| Ø 1000×1500L | 1000 | 1500 | 205 | 49 | 206 |
| Ø 1000×2000L | 1000 | 2000 | 274 | 64 | 275 |
| Ø 1200×2000L | 1200 | 2000 | 337 | 93 | 405 |
| Ø 1200×2400L | 1200 | 2400 | 390 | 110 | 475 |
| Ø 1350×2500L | 1350 | 2500 | 463 | 145 | 626 |
| Ø 1500×3000L | 1500 | 3000 | 624 | 216 | 927 |
| Ø 1700×3000L | 1700 | 3000 | 696 | 273 | 1191 |
| Ø 2000×3500L | 2000 | 3500 | 990 | 456 | 1923 |
| Ø 2000×4000L | 2000 | 4000 | 1110 | 505 | 2298 |
| Ø 2200×4500L | 2200 | 4500 | 1396 | 679 | 2992 |
| Ø 2500×4000L | 2500 | 4000 | 1386 | 781 | 3434 |
| Ø 2500×5000L | 2500 | 5000 | 1750 | 985 | 4272 |
| Ø 3000×5000L | 3000 | 5000 | 2050 | 1410 | 6411 |
| Ø 3000×6000L | 3000 | 6000 | 2460 | 1695 | 7293 |
| Ø 3300×6500L | 3300 | 6500 | 2950 | 2245 | 8335 |
| Ø 4500×9000L | 4500 | 9000 | 19650 | 7860 | 21460 |
Product Advantage
1. Good floatability makes the installation site not affected by tidal range.
2. Non-pneumatic operation, free from scratch and fiction,seawater corrosion resistance and high salt-alkalia tolerance, longer service life up to 15 years without regular maintenance.
3. Higher safety factor, free from explosion risk.
