Pneumatic Marine Fender With ISO17357 Certificate Used for Protect Large Vessel ►Pneumatic rubber fender introduction The "Yokohama Type Pneumatic Rubber Fender" was developed in 1958. Progress in the development of such floating pneumatic rubber fenders is closely related to the progress and ...
Pneumatic Marine Fender With ISO17357 Certificate Used for Protect Large Vessel
The "Yokohama Type Pneumatic Rubber Fender" was developed in 1958. Progress in the development of such floating pneumatic rubber fenders is closely related to the progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures. Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today, more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers. These fenders play a critical role in the safe operation of ship berthing and mooring.
Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc. With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.
Pneumatic rubber fender Features:
1. Guaranteed energy absorption
2. Chain tyre net and sling type
3. Thick skin construction
4. Good angular performance
5. Less surface pressure onto the side wall of ships. (The capability of accepting surface pressure of the fender is up to 14 ton/m2).
6. No reduction on the performance of compression when inclined.
7. Suitable for areas with large or small tides.
8. Suitable in cold weather because the compressed air as buffering medium.
9. Especially in mooring of large scale ships in sea docks and lightering.
10. Maintains large clearances between hull and structure
How does the aero fender work?
The pneumatic fender or inflatable rubber fender or Yokohama fender compressed air is used as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and flexibility when docking, so as to prevent The impact of collisions and collisions.
What type do we have?

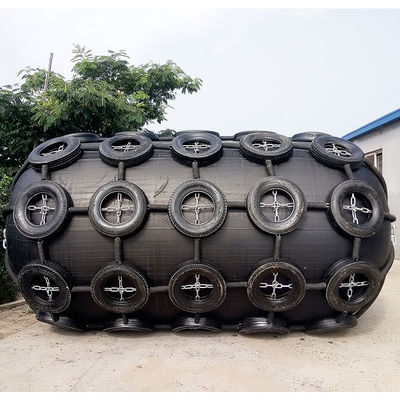

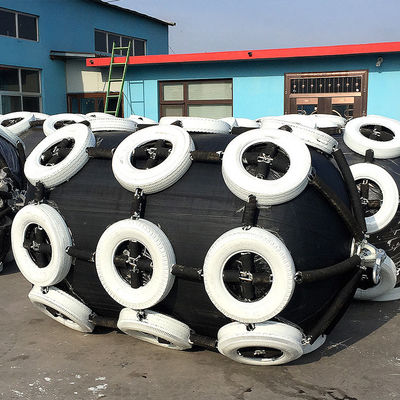

Tire net type: multiple tires are tied to the ball, and both ends are tied to a special flywheel that can rotate flexibly. Suitable for large and reliable balls.
Rubber net type: tie a special rubber pad to the ball, which can be freely contracted or stretched when squeezed. Suitable for medium and small reliable balls.
Line type: The net cover is woven with nylon rope; tightly tied to the ball. It is suitable for small size reliable balls.
| Ship Tonnage(T) | Recommendation SizeD×L(m) | Ship Type |
|---|---|---|
| 50 | 0.5*1.0 | Fishing ship |
| 100 | 0.7*1.5~1.0*1.5 | Fishing ship |
| 200 | 1.0*1.5~1.2*2.0 | Fishing ship,towing ship |
| 300-500 | 1.2*2.0~1.5*2.5 | Fishing ship,towing ship |
| 1000 | 1.5*2.5~1.5*3.0 | Towing ship,cargo ship |
| 3000 | 2.0*3.0~2.0*3.5 | cargo ship,ocean trawler |
| 10000 | 2.0*3.5~2.5*4.0 | cargo ship |
|
1. Safety and Reliability Boat Rubber Fender are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation. large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure. |
|
2. No Deterioration or Variation in Performance Boat Rubber Fender utilize the compressive elasticity of air, therefore performance deterioration due to fatigue is absent. |
|
3. Advantages at Inclined Berthing Boat Rubber Fender, energy absorption does not decrease at inclined compression up to 15 degrees.
|
|
4. Most Cost Competitive System The utilization of the compressive elasticity of air provides completely uniform surface pressure on contact, making Boat Rubber Fender ideal. The surface pressure of the Boat Rubber Fender is equal to the internal air pressure. Due to low and uniform surface pressure properties, the Henger Pneumatic Rubber Fenders are popular at LNG-ship terminals. |
|
5. Soft Reaction Force for Ship and Jetty Structure The reaction force of Henger Pneumatic Rubber Fenders does not increase sharply, even under excess load conditions. Therefore, the Boat Rubber Fender perform well in such cases, and protect ships and mooring facilities. |
|
6. Lower Mooring Forces under Rough Weather Conditions The reaction force and deflection of Boat Rubber Fender do not easily reach the maximum because the reaction force increases slowly and allowable deflection is wide. Thus, the Henger Pneumatic Rubber Fenders safely protect ships and mooring facilities even under rough weather. |
| Quality is the cornerstone, service is the soul. We continue to provide our customers with stable & reliable quality pneumatic rubber fenders with a comprehensive system of technical support, meticulous and thoughtful after-sales service to win customers trust and satisfaction. Qingdao Henger Shipping Supplies Co., Ltd provides following services to all customers. |
| 1. 24 hours instant online technical consultation and support. |
| 2. 24 months warranty period(without any artificial damage) and free repairing service within warranty period. |
|
3. lifetime reparing service. |
