Product Details:
Payment & Shipping Terms:
|
Product Name: | Inflatable Rubber Fender | Material: | Natural Rubber, Synthetic Tyre Cord Fabric |
---|---|---|---|
Color: | Black, Customized | Size: | All Sizes Are Avaliable |
Packing: | Nude Packing | Certificate: | CCS.ABS.LRS.BV.GL.DNV.NK |
Warranty Period: | 2 Years | Lifespan: | 6-10 Years |
MOQ: | 1piece | Application: | Anti-collision |
Highlight: | boat mooring fenders,navy boat fenders |

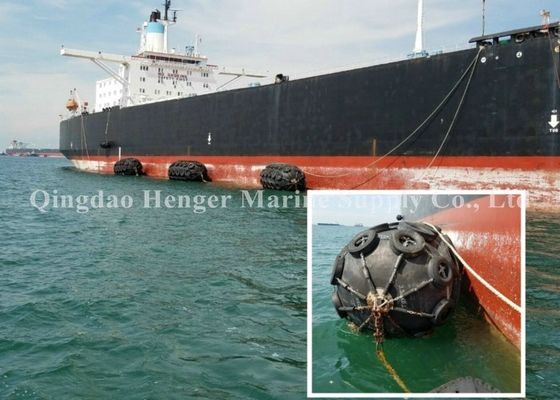

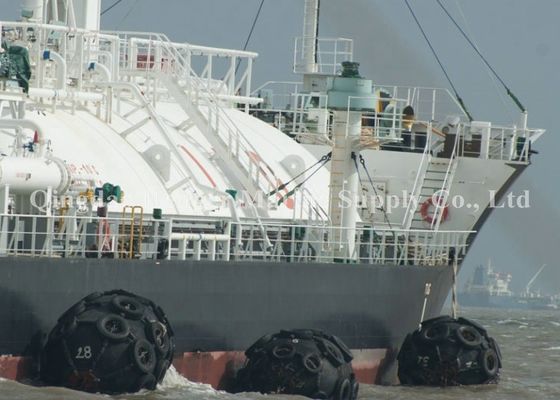

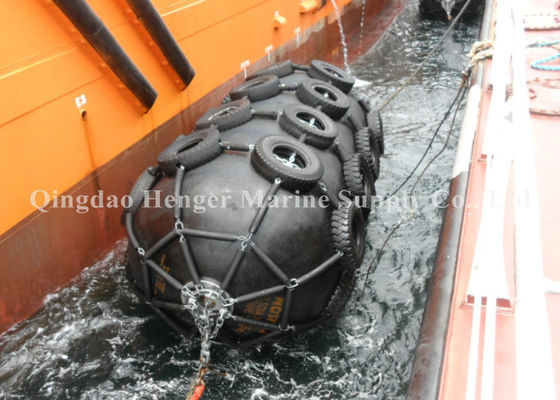

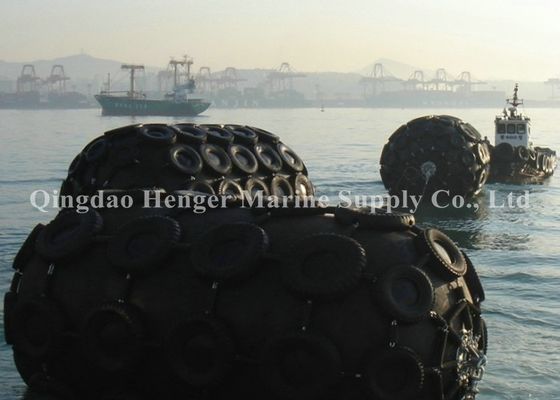

New Flange Design Marine Rubber Fender Yokohama Type Non Deformation For Ship
About Henger's Product
♦ Company mainly produces and sells inflatable rubber fenders, EVA polyurethane fenders and marine airbags, and the products are unique formula and advanced production technology.
♦ Company products has passed ISO9001:2000, CCS, DNV, LR ,etc.
♦ Company products are exported to USA, France, Italy, UK, Singapore, Indonesia, Korea and other countries and regions.
Inflatable Rubber Fender
I. Product Introduction
♦ Definition:
The Pneumatic rubber fender uses compressed air as the buffer medium, which makes the ship have better anti-collision effect when it is near the ship or dock.
♦ Characteristic:
● External wear resistance ● Bearing pressure
● Ageing resistance ● Long service life
● Good air tightness ● Easy storage
● Non deformation ● Simple installation
♦ Functions & Applications
● Installed on the wharf and dock for berthing
● Installed on the shipboard for berthing
● Float chamber
● For moving the cargo
● Pipe seal
II. Henger’s Product Advantage
♦ Advantage:
● Safety and Reliability
● No Deterioration or Variation in Performance
● Advantages at Inclined Berthing
● Most Cost Competitive System
● Soft Reaction Force for Ship and Jetty Structure
● Lower Mooring Forces under Rough Weather Conditions
III. Technical Parameter
Fender Size | Compression Amount(60%) |
Noumenon Weight (kg) |
Weight with Protective Jacket (kg) |
||
D (mm) |
L (mm) |
Reaction (KN) |
Energy Absorption (KNM) |
||
500 | 1000 | 64 | 6 | 23 | 35 |
600 | 1000 | 74 | 8 | 28 | 40 |
700 | 1000 | 137 | 17 | 58 | 52 |
1000 | 1500 | 182 | 32 | 82 | 100 |
1000 | 2000 | 257 | 45 | 148 | 152 |
1200 | 2000 | 297 | 63 | 167 | 200 |
1350 | 2500 | 427 | 102 | 220 | 298 |
1500 | 2500 | 499 | 134 | 270 | 300 |
1500 | 3000 | 579 | 153 | 318 | 450 |
1700 | 3000 | 639 | 191 | 380 | 482 |
2000 | 3500 | 875 | 308 | 580 | 890 |
2000 | 4000 | 1000 | 352 | 680 | 1000 |
2500 | 4000 | 1381 | 663 | 1064 | 1180 |
2500 | 5500 | 2019 | 1131 | 1268 | 1380 |
3000 | 5000 | 2422 | 1357 | 1980 | 2388 |
3000 | 6000 | 2906 | 1293 | 2400 | 2690 |
3300 | 4500 | 1884 | 1175 | 2380 | 2617 |
3300 | 6500 | 3015 | 1814 | 2980 | 3000 |
|
Model Selection Of Inflatable Rubber Fender For Small & Middle Size Ship
Ship Tonnage (T) |
Recommendation Size D X L (m) |
Ship Type
|
50 | 0.5 x 1.0 | Fishing Ship |
100 | 0.7 x 1.5 ~ 1.0 x 1.5 | Fishing Ship |
200 | 1.0 x 1.5 ~ 1.2 x 2.0 | Fishing Ship, Towing Ship |
300-500 | 1.2 x 2.0 ~ 1.5 x 2.5 | Fishing Ship, Towing Ship |
1000 | 1.5 x 2.5 ~ 1.5 x 3.0 | Towing Ship, Cargo Ship |
3000 | 2.0 x 3.0 ~ 2.0 x 3.5 | Cargo Ship, Ocean Trawler |
10000 | 2.0 x 3.5 ~ 2.5 x 4.0 | Cargo Ship |
Model Selection Of Inflatable Rubber Fender For Large-tonnage Ship
Ship Tonnage (DWT) |
Assumed Boarding Speed (M/S) | Effective Kinetic Energy (KNM) |
Fender Size D x L (m) |
200000 | 0.15 | 1890 | 3.3 x 6.5 |
150000 | 0.15 | 1417 | 3.3 x 6.5 |
100000 | 0.15 | 945 | 3.0 x 5.0 |
85000 | 0.17 | 1031 | 3.0 x 6.0 |
50000 | 0.18 | 680 | 2.5 x 5.5 |
40000 | 0.20 | 672 | 2.5 x 5.5 |
30000 | 0.22 | 609 | 2.5 x 4.0 |
20000 | 0.25 | 525 | 2.5 x 4.0 |
15000 | 0.26 | 425 | 2.5 x 4.0 |
10000 | 0.28 | 329 | 2.0 x 4.0 |
5000 | 0.33 | 228 | 2.0 x 3.5 |
