Red Color Solid Floating Dock Fender with Polyurethane Foam Filled

Red Color Solid Floating Dock Fender with Polyurethane Foam Filled
Red Color Solid Floating Dock Fender with Polyurethane Foam Filled Red Color Solid Floating Dock Fender with Polyurethane Foam Filled Red Color Solid Floating Dock Fender with Polyurethane Foam Filled Red Color Solid Floating Dock Fender with Polyurethane Foam Filled

Large Image :  Red Color Solid Floating Dock Fender with Polyurethane Foam Filled

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: CCS, ABS, LRS, BV, GL, DNV, NK
Model Number: HE-SF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 20-1000 USD/pc
Packaging Details: nude packing or customized
Delivery Time: 7-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs/weel
Detailed Product Description
Material: EVA Polyurethane Color: All Colors Are Available
Protective Sleeve: Polyurea Coating, Tyre-chain Net, Rope Net Life Span: 15-20 Years
Warranty: 1-2 Years Application: Docking Anti-collision
Diameter: 0.3-6m Length: 1-10m
Key Word: Foam Filled Floating Fender
High Light:

foam boat fenders

,

inflatable boat fenders

Red Color Solid Floating Dock Fender with Polyurethane Foam Filled

EVA Polyurethane Foam Filled Floating Fender Introduction

Red Color Solid Floating Dock Fender with Polyurethane Foam Filled 0

Foam filled fender,also called EVA solid fender, is a new type fender using light weight high elasticity foam as cushion medium, widely applied to harbour, offshore,STS and STD operation.

Henger Foam Filled Solid Fender is made of environmental protection material and high elasticity polymeric material. long service life and high economic value of this product is achieved by the high quality material with performance of high strength, high elasticity, high adhesion, anti-leakage,and aging resistance.





EVA Polyurethane Foam Filled Floating Fender Structure

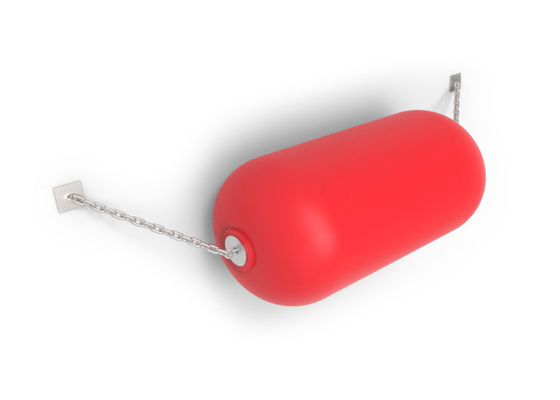

Red Color Solid Floating Dock Fender with Polyurethane Foam Filled 1

Tyre & Chain Net Type



Red Color Solid Floating Dock Fender with Polyurethane Foam Filled 2



Pure Sling Type



Inside of Foam Filled Solid Fender is filled with environmental protection material-EVA with coating protective layer of polyurea material on outer surface. Polyurea is an new material of adjustable high-elasticity modulus. There are galvanized flange and swivel on the fender two ends. Like pneumatic rubber fender, tyre-chain net protective jacket is also optional spare part to foam filled fender for better anti-collision performance.





EVA Polyurethane Foam Filled Floating Fender Product Feature

Red Color Solid Floating Dock Fender with Polyurethane Foam Filled 3

Henger Invented new foam fender manufacturing method with blind hole hydrophobic foam as core and polyurea as outer coating, which has following features:



  • Good Hydrophobicity

The core material of Henger foam filled fender is bind hole hydrophobic foam with light weight and good energy absorption capability. It wont absorb water even cracking



  • High Performance of Outer Coating Layer

The polyurea protective coating has very good performance of anti collision, anti friction, compression resistance, oil proof, water proof and weather fastness.



  • Fast and Easy Installation

The fender is made with flange and swivel for fast installation, customer could install it very fast without any professional guidance from experts.

Red Color Solid Floating Dock Fender with Polyurethane Foam Filled 4Red Color Solid Floating Dock Fender with Polyurethane Foam Filled 5



  • Multiple Color Options

The appearance color could be customized in any colors appointed by customer with provided PANTONE.





  • Multiple Form & Size Options

The fender is made of high plasticity foam, whose appearance form and dimensional size are highly customizable.



Red Color Solid Floating Dock Fender with Polyurethane Foam Filled 6

varrious colors, forms & sizes for option

  • High energy absorption capability and lower reaction force.



EVA Polyurethane Foam Filled Floating Fender Application

  • Harbors, ships

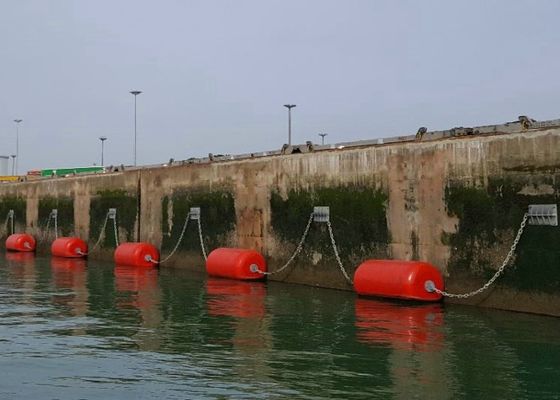

Red Color Solid Floating Dock Fender with Polyurethane Foam Filled 7

  • gravity wharf and dolphin type quay, especially for wharves with bigger

tidal range

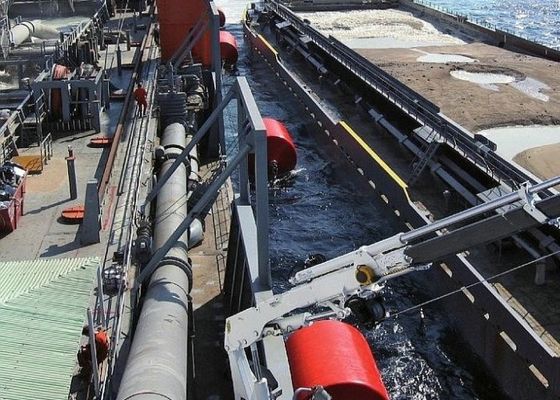

  • STS, STD operation

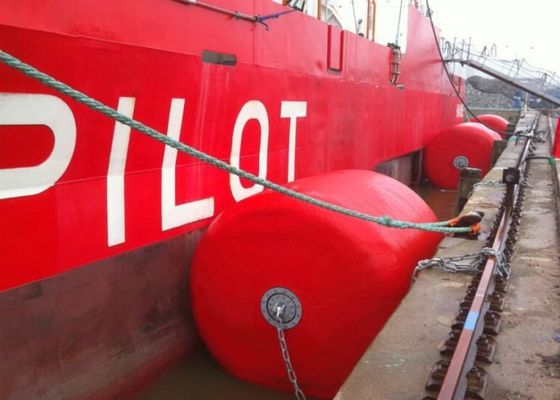

Red Color Solid Floating Dock Fender with Polyurethane Foam Filled 8

  • Protective fender for bridge pier
  • Protecting fender for special military fleet or submarine
  • Applied together with other forms of fender like pneumatic rubber fender, hydro pneumatic fender, etc.

Red Color Solid Floating Dock Fender with Polyurethane Foam Filled 9



EVA Polyurethane Foam Filled Floating Fender Product Advantage

Red Color Solid Floating Dock Fender with Polyurethane Foam Filled 10

  • Good floatability makes the installation site not affected by tidal range.
  • Non-pneumatic operation, free from scratch and fiction,seawater corrosion resistance and high salt-alkalia tolerance, longer service life up to 15 years without regular maintenance.
  • Higher safety factor, free from explosion risk.



EVA Polyurethane Foam Filled Floating Fender Technical Parameter Table



Model

D

(mm)

L

(mm)

Compression 60% Reference Weight(kg)
Counter-force(KN)

Energy Absorption

(KJ)

Ø 500×1000L 500 1000 71 8 34
Ø 600×1000L 600 1000 86 12 45
Ø 700×1500L 700 1500 161 27 101
Ø 1000×1500L 1000 1500 205 49 206
Ø 1000×2000L 1000 2000 274 64 275
Ø 1200×2000L 1200 2000 337 93 405
Ø 1200×2400L 1200 2400 390 110 475
Ø 1350×2500L 1350 2500 463 145 626
Ø 1500×3000L 1500 3000 624 216 927
Ø 1700×3000L 1700 3000 696 273 1191
Ø 2000×3500L 2000 3500 990 456 1923
Ø 2000×4000L 2000 4000 1110 505 2298
Ø 2200×4500L 2200 4500 1396 679 2992
Ø 2500×4000L 2500 4000 1386 781 3434
Ø 2500×5000L 2500 5000 1750 985 4272
Ø 3000×5000L 3000 5000 2050 1410 6411
Ø 3000×6000L 3000 6000 2460 1695 7293
Ø 3300×6500L 3300 6500 2950 2245 8335
Ø 4500×9000L 4500 9000 19650 7860 21460

if there is customizing size requirement, please kindly contact our sale service staff.




EVA Polyurethane Foam Filled Floating Fender Packing & Delivery

Red Color Solid Floating Dock Fender with Polyurethane Foam Filled 11

Red Color Solid Floating Dock Fender with Polyurethane Foam Filled 12

Red Color Solid Floating Dock Fender with Polyurethane Foam Filled 13





Company Introduction



Qingdao Henger Marine Supply Co., Ltd

Red Color Solid Floating Dock Fender with Polyurethane Foam Filled 14



Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Marine Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.



Red Color Solid Floating Dock Fender with Polyurethane Foam Filled 15



With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.





Exhibition





FAQ



Q: What’s the material of your EVA Foam Filled Fender products ?
A: the main raw material is light weight high elasticity foam imported from Korea.


Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao airport, which is convenient in transportation logistics.


Q: Is OEM service available ?
A: yes


Q: What’s the delivery time and payment terms ?
A: Delivery time is based on product model and order quantity. normally it is around 7-15 working days.

The payment could paid by T/T, L/C, Western Union, Paypal, etc.



Q: What is your company address and contact information ?

A: Qingdao Henger Marine Supply Co., Ltd

Address: Jinkou Industry Park, Jimo District, Qingdao City, Shandong Province, China

Post Code: 266200

Tel: +86-0532-58913181

E-mail: anna@hengergroup.com;
