Heavy Duty Yokohama Pneumatic Marine Fender For Oil Tanker Docking

Heavy Duty Yokohama Pneumatic Marine Fender For Oil Tanker Docking
Heavy Duty Yokohama Pneumatic Marine Fender For Oil Tanker Docking Heavy Duty Yokohama Pneumatic Marine Fender For Oil Tanker Docking Heavy Duty Yokohama Pneumatic Marine Fender For Oil Tanker Docking Heavy Duty Yokohama Pneumatic Marine Fender For Oil Tanker Docking Heavy Duty Yokohama Pneumatic Marine Fender For Oil Tanker Docking

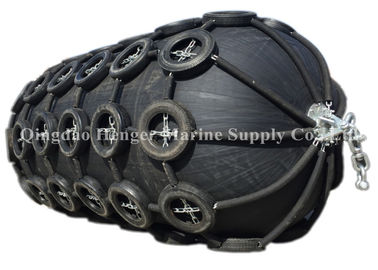

Large Image :  Heavy Duty Yokohama Pneumatic Marine Fender For Oil Tanker Docking

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: CCS, ABS, LRS, BV, GL, DNV, NK
Model Number: HEYF
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: 5000-10000 USD
Packaging Details: nude packing or customized
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs/month
Detailed Product Description
Material: Natural Rubber Color: Black
Protective Sleeve: Tyre-chain Net, Rubber Tube For Option Lifespan: 6-10 Years
IP: 50KPa/80KPa (0.05MPa/0.08MPa) Warranty: 12 Months/24 Months
Application: Docking Anti-collision Diameter: 0.5-6m
Length: 1-10m Key Word: Yokohama Fender
High Light:

floating dock fenders


dock bumper fender

ISO17357 Heavy Duty Yokohama Fender Pneumatic Floating Rubber Fender for Oil Tanker Docking


1. Yokohama Fender Introduction


The "Yokohama  Fender" was developed in 1958. Progress in the development of such floating pneumatic rubber fenders is closely related to the progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.


Yokohama Fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today, more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers. These fenders play a critical role in the safe operation of ship berthing and mooring.



2. Yokohama Fender Types

fender type1

there are many type of Yokohama Fender with various functions based on different protective jacket and design.

Henger could provide OEM service and technical design based on customer requirement and actual demand. contact our sales service for more details.



3. Tyre-chain Protective Jacket Type Yokohama Fender Product Show


Heavy Duty Yokohama Pneumatic Marine Fender For Oil Tanker Docking 1



4. Henger Inflatable Yokohama Fender Structure



Heavy Duty Yokohama Pneumatic Marine Fender For Oil Tanker Docking 3



5. Inflatable Yokohama Fender Manufacturing Process




6. Henger Inflatable Floating Yokohama Fender Advantages


6.1. Safety and Reliability

Henger Yokohama Fender are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation.

large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.


6.2. No Deterioration or Variation in Performance

Henger Yokohama Fender utilize the compressive elasticity of air, therefore

performance deterioration due to fatigue is absent.


6.3. Advantages at Inclined Berthing

Henger Inflatable Floating Yokohama Fender, energy absorption does not decrease at inclined compression up to 15 degrees.



6.4. Most Cost Competitive System

The utilization of the compressive elasticity of air provides completely uniform surface pressure on contact, making Henger Pneumatic Rubber Fenders ideal. The surface pressure of the Inflatable Yokohama Fender is equal to the internal air pressure.

Due to low and uniform surface pressure properties, the Henger Yokohama Fenders are popular at LNG-ship terminals.


6.5. Soft Reaction Force for Ship and Jetty Structure

The reaction force of Henger Yokohama Fender does not increase sharply, even under excess load conditions. Therefore, the Henger Pneumatic Rubber Fenders perform well in such cases, and protect ships and mooring facilities.


6.6. Lower Mooring Forces under Rough Weather Conditions

the reaction force and deflection of Henger Yokohama Fender do not easily reach the maximum because the reaction force increases slowly and allowable deflection is wide. Thus, the Henger Yokohama Fender safely protect ships and mooring facilities even under rough weather.



7. Yokohama Fender Technical Parameter


pneumatic fender  (14).jpg


Fender Size Compression Amount (60%)

Noumenon Weight


Weight with Protective Jacket








Energy Absorption


500 1000 64 6 23 35
600 1000 74 8 28 40
700 1000 137 17 58 52
1000 1500 182 32 82 100
1000 2000 257 45 148 152
1200 2000 297 63 167 200
1350 2500 427 102 220 298
1500 2500 499 134 270 300
1500 3000 579 153 318 450
1700 3000 639 191 380 482
2000 3500 875 308 580 890
2000 4000 1000 352 680 1000
2500 4000 1381 663 1064 1180
2500 5500 2019 1131 1268 1380
3000 5000 2422 1357 1980 2388
3000 6000 2906 1293 2400 2690
3300 4500 1884 1175 2380 2617
3300 6500 3015 1814 2980 3000

* 1. above Yokohama Fender parameter is based on of 0.05Mpa internal pressure,there is also & 0.08Mpa type for choice, kindly contact our service consultant for more details and competitive prices.


* 2. penumatic fender size could be customized according to customer requirement.


* 3. all accessorires could be customized according to customers' requirement or drawings.



8. Inflatable Floating Yokohama Fender Model Selection

floating fender


Model Selection of Inflatable Floating Yokohama Fender for Small & Middle Size Ship

Ship Tonnage(T) Recommendation Size D x L ( m) Ship Type
50 0.5 x1.0 Fishing ship
100 0.7 x 1.5~1.0 x 1.5 Fishing ship
200 1.0 x 1.5~1.2 x 2.0 Fishing ship, towing ship
300-500 1.2 x 2.0~1.5 x 2.5 Fishing ship, towing ship
1000 1.5 x 2.5~1.5 x 3.0 Towing ship, cargo ship
3000 2.0 x 3.0~2.0 x 3.5 cargo ship, ocean trawler
10000 2.0 x 3.5~2.5 x 4.0 cargo ship



Model Selection of Inflatable Floating Rubber Yokohama Fender for Large-tonnage Ship

Ship Tonnage


Assumed Boarding Speed


Effective Kinetic Energy


Fender Size D*L


200000 0.15 1890 3.3 x 6.5
150000 0.15 1417 3.3 x 6.5
100000 0.15 945 3.0 x 5.0
85000 0.17 1031 3.0 x 6.0
50000 0.18 680 2.5 x 5.5
40000 0.20 672 2.5 x 5.5
30000 0.22 609 2.5 x 4.0
20000 0.25 525 2.5 x 4.0
15000 0.26 425 2.5 x 4.0
10000 0.28 329 2.0 x 4.0
5000 0.33 228 2.0 x 3.5



9. Yokohama Fender Practical Use


pneumatic fender  (20)


Pneumatic Rubber Fender Application

1. large crude oil carrier, VLCC

2. container vessel

3. offshore sea task platform

4. large shipyard and dock

5. large ship and cruise ship

6. army harbor dock

7. large bridge pier
