Product Details:
Payment & Shipping Terms:
|
| Features: | High Bearing Capacity, Easy To Use, Cost-effective | Product Nam: | Marine Airbag |
|---|---|---|---|
| Brand: | Henger | Material: | Rubber |
| Color: | Black | Diameter: | 0.5m-3.0m |
| Standard: | CCS,BV,ABS,CB/T-3837,ISO 14409 | Warranty: | 18 Months |
| Oem: | Available | Maximum Load: | 250T/ M |
| Accessories: | Airbag End Fittings, Airbag Repair Kits | Packing: | Pallet |
| Application: | Upgrading And Launching/salvage And Buoyance Aid/heavy Lifting |
Ship Landing and Launching Marine Rubber Airbags
Ship Landing and Launching Marine Rubber Airbags Introduction
Marine Rubber Airbag is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, installation of underwater buoyancy aid etc. Nowadays,ship launching air bags are widely used in the world. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.

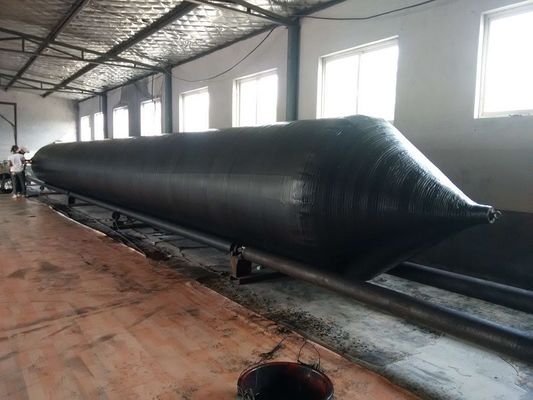

Framework:“HENGER” water launch airbag structures are consist of the outer rubber + synthetic cord reinforced rubber layers.Its shape characteristics: central body cylindrical + tapered on both ends. Cord layers: 4,5,6,7,8,9,10,11,12 layers.
| Diameter | Working Pressure | Working height | Bearing capacity per unit length | |
| KN/m | Ton/m | |||
| D=1.0m | 0.20Mpa | 0.6m | 125.76 | 12.82 |
| 0.5m | 157.16 | 16.02 | ||
| D=1.2m | 0.17Mpa | 0.7m | 133.61 | 13.62 |
| 0.6m | 160.3 | 16.34 | ||
| D=1.5m | 0.13Mpa | 0.9m | 112.63 | 12.5 |
| 0.8m | 143.03 | 14.58 | ||
| 0.7m | 163.43 | 16.66 | ||
| D=1.8m | 0.11Mpa | 1.1m | 120.96 | 12.33 |
| 1.0m | 138.22 | 14.09 | ||
| 0.9m | 155.59 | 15.86 | ||
| 0.8m | 172.85 | 17.62 | ||
| 0.7m | 190.22 | 19.39 | ||
| D=2.0m | 0.10Mpa | 1.2m | 125.76 | 12.82 |
| 1.1m | 141.46 | 14.42 | ||
| 1.0m | 157.16 | 16.02 | ||
| 0.9m | 172.85 | 17.62 | ||
| 0.8m | 188.64 | 19.23 | ||

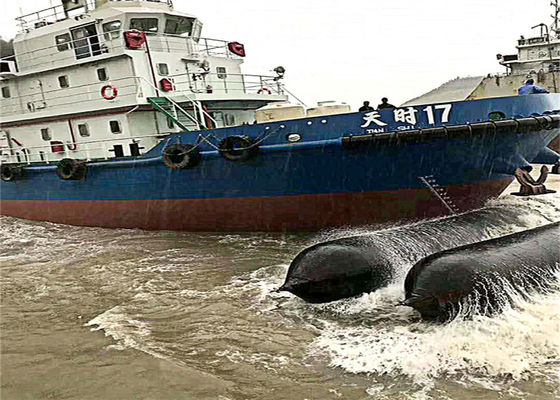

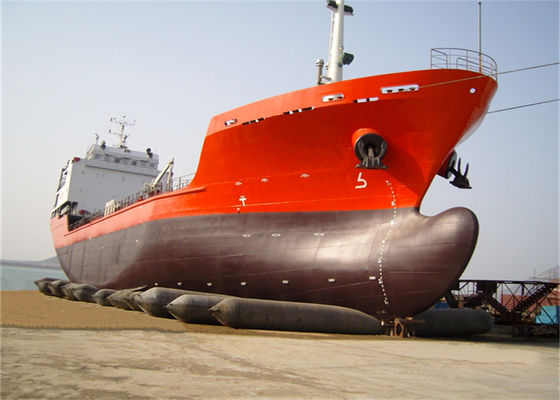

1.Ship Launching & Upgrading
With more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.
2.Weight Lifting & Moving
Marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects
3.Buoyancy Aid & Salvage
Because marine rubber air bag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.
Ship Landing and Water Launch Air Bag Features
1. Long lifespan
2. Movable and reusable
3. Saving investment costs
4. Saving labor and time
1.One-to-one VIP service.
2.Lifelong after-sale service.
3.Professional suggestions for suitable marine rubber airbag size and quantity.
4.Teach customers to use the marine rubber airbag on site .
5.Any questions will be replied within 24 hours.
1.Q"I have ships but don't know how to choose the size of Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China?
Answer: Don't worry .We have more than 20 years' experience. Pls tell me information of your ship, we can suggest suitable size for you.
2.Q:"I want to try your Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China, but I never use it and don't know how to use ,can you help me?"
Answer: Don't worry. We will send instruction book together with Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China.
3.Q"What's your MOQ?"
Answer: Our MOQ is 1PC.
4.Q"How about the lifespan of your Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China?"
Answer: Designed lifespan of our Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China is 6 to 10 years.
5.Q"What's your warranty period ?"
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.
6.Q"What kind of certificate can you provide ?"
Answer: CCS, SGS etc. certificate is available.
